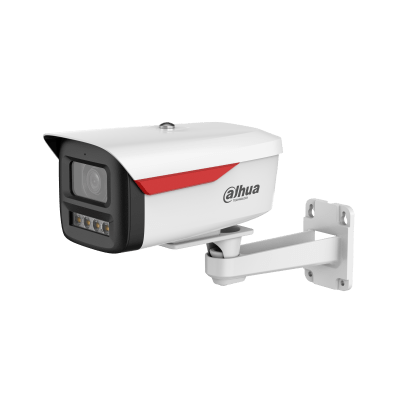

Specifications Dahua IPC-HFW2249M-S-B-PRO
| Features |
Description |
| Product Type |
2MP WizColor Fixed-focal Bullet Network Camera |
| Image Sensor |
1/2.9″ Progressive Scan CMOS |
| Maximum Resolution |
2MP (1920 × 1080) |
| Lens |
Fixed-focal 3.6mm / 6mm, F1.0 |
| Minimum Illumination |
0.0002 Lux @ F1.0 |
| Warm Light |
Up to 50m |
| WDR |
120dB |
| Video Compression |
H.265 / H.264 / MJPEG |
| Intelligent Detection |
Intrusion and Tripwire with Human/Vehicle Classification |
| Storage |
MicroSD Card up to 256GB |
| Network |
1 × 10/100Mbps RJ45 Ethernet |
| Power |
12VDC / PoE |
| Protection |
IP67 |
| CAMERA |
| Image Sensor |
1/2.9″ CMOS |
| Maximum Resolution |
1920 × 1080 |
| Scanning System |
Progressive |
| Shutter Speed |
Auto/Manual, 1/3s–1/100,000s |
| Minimum Illumination |
0.0002 Lux @ F1.0 |
| S/N Ratio |
>56dB |
| Day/Night |
Color / B/W |
| WDR |
120dB |
| Noise Reduction |
3D NR |
| Image Enhancement |
BLC, HLC, WDR, 3D NR, LDC and Digital Watermarking |
| LENS & ILLUMINATION |
| Lens Type |
Fixed-focal |
| Lens Mount |
M12 |
| Focal Length |
3.6mm / 6mm |
| Maximum Aperture |
F1.0 |
| Field of View |
3.6mm: H 81° / V 44° / D 95°
6mm: H 53° / V 29° / D 61° |
| Close Focus Distance |
3.6mm: 1.7m / 6mm: 3.4m |
| Illuminator |
4 × Warm Light |
| Illumination Distance |
Up to 50m |
| Illuminator Control |
Auto / Manual |
| VIDEO |
| Video Compression |
H.265 / H.264 / H.264H / H.264B / MJPEG |
| Smart Codec |
Smart H.265+ / Smart H.264+ |
| Main Stream |
1920 × 1080 @ 1–25/30fps |
| Sub Stream |
704 × 576 @ 1–25fps / 704 × 480 @ 1–30fps |
| Stream Capability |
2 Streams |
| Bit Rate Control |
CBR / VBR |
| Video Bit Rate |
H.264: 32kbps–6144kbps
H.265: 12kbps–6144kbps |
| ROI |
4 Areas |
| Privacy Masking |
4 Areas |
| INTELLIGENCE |
| IVS |
Intrusion and Tripwire |
| Human/Vehicle Classification |
Supported for Intrusion and Tripwire |
| SMD |
SMD Plus |
| Smart Search |
Supported with Compatible Smart NVR |
| Motion Detection |
Supported |
| Video Tampering |
Supported |
| Audio Detection |
Supported |
| AUDIO |
| Microphone |
Built-in Microphone |
| Audio Compression |
G.711a / G.711Mu / PCM / G.726 |
| Audio Detection |
Supported |
| NETWORK |
| Network Port |
1 × RJ45 10/100 Base-T |
| Network Protocol |
IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, P2P and Bonjour |
| ONVIF |
Profile S / Profile G / Profile T |
| API |
SDK / CGI / API |
| Maximum Users |
20 Users |
| Maximum Bandwidth |
48 Mbps |
| Security |
HTTPS, 802.1X, IP/MAC Filtering, Account Lockout, Security Logs, Trusted Boot and X.509 Certificate Support |
| STORAGE |
| MicroSD |
MicroSD Card up to 256GB |
| Network Storage |
FTP / SFTP / NAS |
| Recording |
Local Recording and Network Recording |
| POWER |
| Power Supply |
12VDC / PoE |
| PoE |
Supported |
| Basic Power Consumption |
1.5W @ 12VDC / 1.9W @ PoE |
| Maximum Power Consumption |
5.3W @ 12VDC / 6.3W @ PoE |
| GENERAL |
| Protection |
IP67 |
| Operating Temperature |
-40°C to +60°C |
| Operating Humidity |
≤95% RH, Non-Condensing |
| Storage Temperature |
-40°C to +60°C |
| Storage Humidity |
≤95% RH, Non-Condensing |
| Casing Material |
Metal + Plastic |
| Dimensions |
201.0 × 103.8 × 97.8mm |
| Net Weight |
0.66kg |
Note: The Dahua IPC-HFW2249M-S-B-PRO is a 2MP WizColor fixed-focal bullet network camera featuring a 1/2.9″ CMOS sensor, F1.0 lens, 120dB WDR, 50m warm-light illumination, SMD Plus, human/vehicle classification for intrusion and tripwire, built-in microphone, MicroSD storage up to 256GB and IP67 protection.
Important: This camera uses WizColor warm-light illumination rather than conventional IR as its primary night illumination. It is available with either a 3.6mm or 6mm fixed-focal lens, so the field of view and DORI distances differ depending on the selected lens.
