DrayTek VigorAP 802
VigorAP 802 เป็นจุดเชื่อมต่อไร้สายแบบดูอัลแบนด์ขนาดกะทัดรัดพิเศษออกแบบมาเพื่อขยายการครอบคลุม Wi-Fi
The Simplest Range Extend Solution

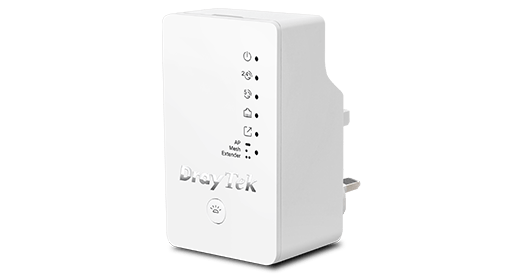

VigorAP 802 is an ultra-compact dual-band wireless access point, designed for extending the Wi-Fi coverage. It has an RJ-45 port for Ethernet uplink or wired connection. The wall plug allows it to be placed anywhere with an electric outlet, providing 1200Mbps wireless speed to every corner. The portable design gives you the flexibility of installation. Despite its compact size, VigorAP 802 still offers the business-grade features as the other VigorAP does, including roaming, airtime fairness, band steering, and a lot more.
ข้อมูลทางเทคนิค
| LAN Port | 1x 10/100/1000M Base-T, RJ-45 |
| Antenna | 2x Internal PiFA Dual-Band Gain: 4.79 dBi for 5GHz, 3.35 dBi for 2.4GHz |
| Button | 1x LED On/Off |
| 2.4G Peak Speed | 300 Mbps |
| 5G Peak Speed | 867 Mbps |
| Max. Number of Concurrent Active Clients | 64 (32 per band) |
| 2.4GHz Standard | IEEE 802.11b/g/n |
| 5GHz Standard | IEEE 802.11a/n/ac |
| MIMO | 2×2 (2-stream) |
| Operating Mode | AP, Mesh Node, Range Extender |
| Roaming | AP-Assisted Roaming, PMK-Caching, Pre-Authentication |
| Airtime Fairness | |
| Band Steering | |
| Auto Channel Selection | |
| Max. Number of SSID | 4 (2 per band) |
| WDS | |
| Bandwidth Limit per Station | |
| Client Number Limit | Per radio, Per SSID |
| Connection Time Control | |
| WMM | |
| Security Mode | WPA2, WPA2/WPA, WPA, WEP, None |
| Authentication | Personal, Enterprise |
| WPS | PIN, PBC |
| Hidden SSIDs | |
| MAC Address Filter | Up to 64 entries |
| Wireless Client Isolation | |
| Mobile Device Management | |
| RADIUS Proxy | PEAP, EAP-TLS |
| DHCP Client | |
| Static IP | |
| MAC Clone | |
| 802.1q VLAN | |
| iOS Keep Alive | |
| Schedule | Auto-Reboot, Wi-Fi Up/Down, LED On/Off |
| Local Service | HTTP, HTTPS, Telnet |
| Configuration | Stand Alone, TR-069 (VigorACS), VigorRouter APM, VigorConnect, VigorAP Mesh Root |
| Firmware Upgrade | HTTP, TFTP, TR-069 |
| Tools | Speed Test, AP Discovery, Statistics, Interference Monitor |
| Notification Alert | |
| SNMP | v2, v2c, v3 |
| Syslog | |
| Managed by VigorConnect | |
| Managed by VigorACS | |
| Environment | Indoor |
| Mounting | Wall Plug |
| Power Supply | AC 100-240V @ 0.25A |
| Max. Power Consumption | 10.7 watts |
| Dimension (W x H x D) | 59mm x 91mm x 40mm (Power plug not included) |
| Weight | 130 g |
| Operating Temperature | 0 to 40°C |
| Storage Temperature | -20 to 60°C |
| Operating Humidity | 10 to 90% non-condensing |
| Certificate |   |
