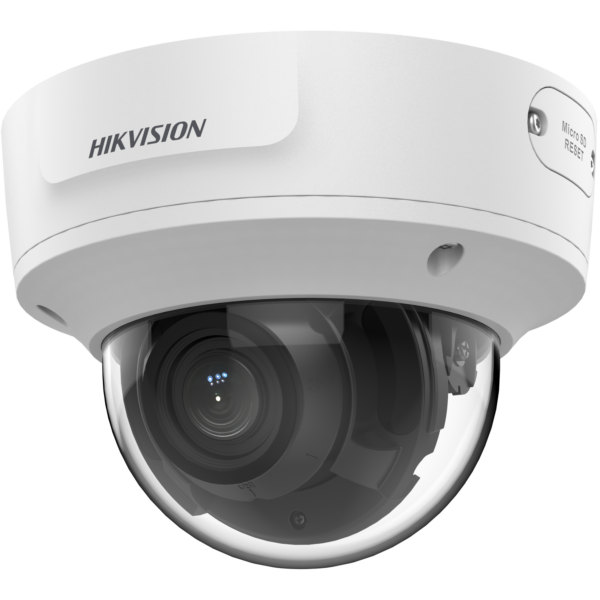

Specifications Hikvision DS-2CD3756G2T-IZS

Features	Description
Product Type	5MP AcuSense Varifocal Dome Network Camera
Image Sensor	1/2.7″ Progressive Scan CMOS
Maximum Resolution	5MP (2592 × 1944)
Lens	Motorized Varifocal Lens, 2.7–13.5 mm / 7–35 mm
Low-Light Technology	Powered-by-DarkFighter
Wide Dynamic Range	120 dB True WDR
AI Detection	Human and Vehicle Target Classification
Video Compression	H.265+ / H.265 / H.264+ / H.264
IR Range	Up to 40 m
Storage	MicroSD up to 256GB
PoE	IEEE 802.3af
Protection	IP67 / IK10

CAMERA
Image Sensor	1/2.7″ Progressive Scan CMOS
Maximum Resolution	2592 × 1944
Minimum Illumination	Color: 0.003 Lux @ F1.4, AGC ON; B/W: 0 Lux with IR
Shutter Speed	1/3 s to 1/100,000 s
Slow Shutter	Supported
Day & Night	IR Cut Filter
Wide Dynamic Range	120 dB True WDR
Image Enhancement	BLC / HLC / 3D DNR
Angle Adjustment	Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355°

LENS
Lens Type	Motorized Varifocal Lens
Focal Length	2.7–13.5 mm / 7–35 mm
Iris Type	Motorized
Aperture	F1.4 (2.7–13.5 mm) / F1.6 (7–35 mm)
2.7–13.5 mm FOV	Horizontal: 103° to 32° / Vertical: 73° to 24° / Diagonal: 142° to 40°
7–35 mm FOV	Horizontal: 28° to 10° / Vertical: 21° to 8° / Diagonal: 35° to 13°
Focus	Motorized

ILLUMINATOR
Supplement Light Type	IR
IR Range	Up to 40 m
IR Wavelength	850 nm
Smart Supplement Light	Supported

VIDEO
Main Stream	50 Hz: 20 fps at 2592 × 1944; 25 fps at 2560 × 1440 / 1920 × 1080 60 Hz: 20 fps at 2592 × 1944; 30 fps at 2560 × 1440 / 1920 × 1080
Sub-Stream	Up to 25 fps / 30 fps depending on resolution and frequency
Video Compression	H.265+ / H.265 / H.264+ / H.264
Video Bit Rate	32 Kbps to 16 Mbps
H.264 Profile	Baseline / Main / High Profile
H.265 Profile	Main Profile
Bit Rate Control	CBR / VBR
ROI	Supported

ACUSENSE & SMART FEATURES
Human Detection	Supported
Vehicle Detection	Supported
Human / Vehicle Classification	Deep Learning Based
Line Crossing Detection	Supported
Intrusion Detection	Supported
Region Entrance Detection	Supported
Region Exiting Detection	Supported
Object Removal Detection	Supported
Unattended Baggage Detection	Supported
Motion Detection	Supported
Video Tampering Detection	Supported
Scene Change Detection	Supported

AUDIO
Audio Type	Mono
Audio Input	1-ch Audio Input
Audio Output	1-ch Audio Output
Audio Compression	G.711 / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC

NETWORK
Network Interface	1 × RJ45 10/100M Self-Adaptive Ethernet Port
Protocols	TCP/IP / IPv4 / IPv6 / HTTP / HTTPS / FTP / SMTP / DNS / DDNS / RTP / RTSP / RTCP / NTP / SNMP / IGMP / DHCP / UDP / UPnP
Integration	ONVIF Profile S / Profile G / Profile T
API	ISAPI / SDK
Cloud Service	Hik-Connect
Client Software	iVMS-4200 / Hik-Connect

STORAGE
Memory Card	MicroSD / MicroSDHC / MicroSDXC
Maximum Capacity	Up to 256GB
ANR	Supported

POWER
Power Supply	12 VDC ±25%
PoE	IEEE 802.3af, Class 3
Power Consumption	Max. 10.5 W

PROTECTION & GENERAL
Ingress Protection	IP67
Vandal Resistance	IK10
Operating Temperature	-30°C to 60°C
Operating Humidity	≤95% RH, Non-Condensing

Note: The Hikvision DS-2CD3756G2T-IZS is a 5MP AcuSense Varifocal Dome Network Camera featuring a 1/2.7″ Progressive Scan CMOS sensor, 2592 × 1944 resolution, DarkFighter low-light technology, 120 dB True WDR and motorized varifocal lens options of 2.7–13.5 mm or 7–35 mm. It supports human and vehicle target classification, IR illumination up to 40 m, H.265+ compression, MicroSD storage up to 256GB, IEEE 802.3af PoE, IP67 and IK10 protection.

Important: The DS-2CD3756G2T-IZS is a 5MP AcuSense Motorized Varifocal Dome Network Camera. Available lens options are 2.7–13.5 mm and 7–35 mm. The camera provides 120 dB True WDR, DarkFighter low-light performance, human/vehicle classification, up to 40 m IR, IP67 and IK10.
