Specifications TP-Link DS-P7001-08
| Features | Description |
|---|---|
| Device Type | 8-Port GPON Optical Line Terminal (OLT) |
| GPON Ports | 8 × 2.5G GPON Ports |
| GPON Split Ratio | Up to 1:128 per GPON Port |
| Maximum ONTs | Up to 1,024 ONTs per Device |
| Uplink Ports | 2 × 10G SFP+ and 1 × Gigabit RJ45 |
| GPON Speed | 2.5 Gbps Downstream and 1.25 Gbps Upstream |
| Fiber Interface | SC/UPC, 9/125 μm Singlemode Fiber |
| Management | DPMS, SNMP, CLI and Web UI |
| Power Supply | Dual Hot-Swappable AC/DC Power Supplies |
| Installation | 19-inch Rack Mount / Desktop Deployment |
| Application | FTTH, FTTB, ISP Networks, Broadband Access Networks and GPON Fiber Distribution |
| GPON Ports | 8 × 2.5G PON Ports |
|---|---|
| GPON Standard | ITU-T G.984.x |
| GPON Downstream | 2.5 Gbps |
| GPON Upstream | 1.25 Gbps |
| GPON Wavelength | 1490 nm Downstream / 1310 nm Upstream |
| Maximum Split Ratio | 1:128 per GPON Port |
| Maximum ONTs | 1,024 ONTs |
| Transmission Distance | Up to 20 km |
| Fiber Interface | SC/UPC |
| Fiber Type | 9/125 μm Singlemode Fiber |
| Optical Class | Class C+ |
| 10G Uplink | 2 × 10 Gbps SFP+ |
| Gigabit Uplink | 1 × 10/100/1000 Mbps RJ45 |
| Console | 1 × RJ45 Console Port |
| Management Port | 1 × RJ45 Management Port |
| Alarm Port | 1 × Alarm Port (Reserved) |
| ONU Authentication | ONU Auto Authentication |
| ONU Security | Rogue ONU Detection and Isolation, Uplink and Downlink Data Encryption |
| QoS | IEEE 802.1p/DSCP QoS and Voice VLAN |
| Multicast | IGMP Snooping and MLD Snooping |
| Routing | Static Routing |
| Maximum Power Consumption | 70 W |
| SMART FEATURES | |
|---|---|

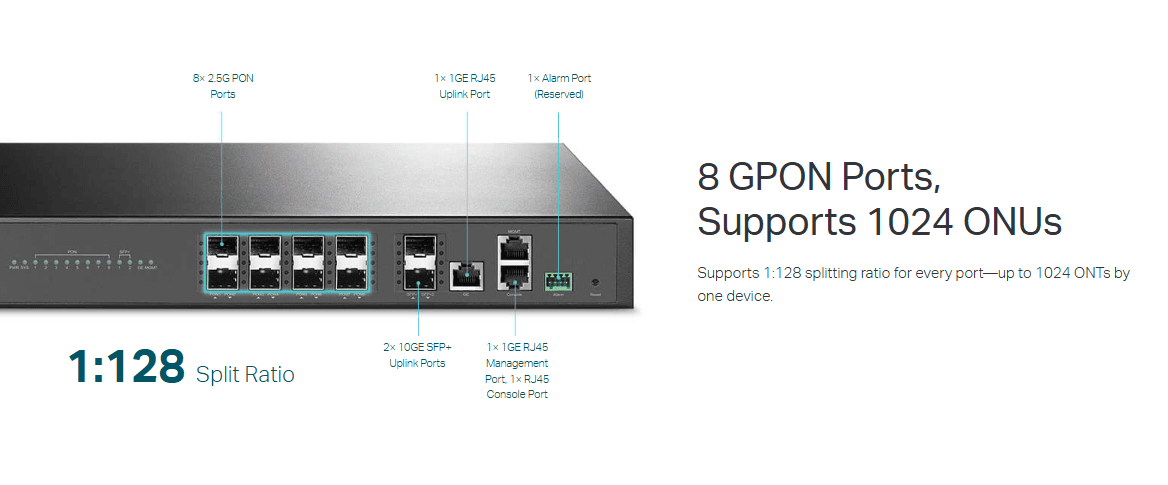

| 8-Port GPON | Provides Eight 2.5G GPON Ports with Up to 1:128 Splitting Ratio per Port, Supporting Up to 1,024 ONTs |
| 10G High-Speed Uplink | Two 10G SFP+ Uplink Ports Provide High-Bandwidth Connectivity to Core and Aggregation Networks |
| Redundant Power Supply | Dual Hot-Swappable AC/DC Power Supplies Provide Carrier-Class Reliability and Support AC, DC or Mixed-Power Deployment |
| ONU Auto Authentication | Automatically Authenticates Connected ONUs to Simplify GPON Service Deployment |
| Rogue ONU Protection | Detects and Isolates Rogue ONUs to Improve GPON Network Stability and Security |

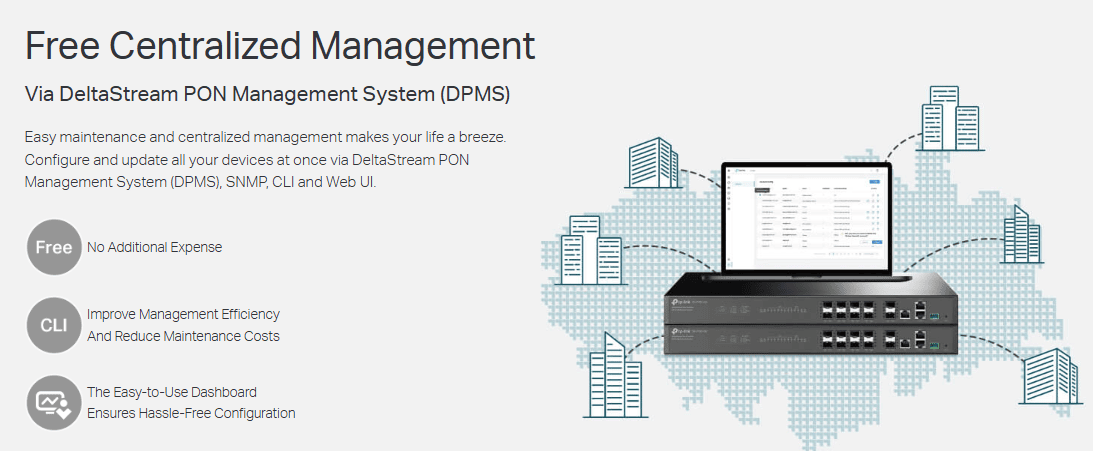

| Centralized Management | Supports DPMS, SNMP, CLI and Web UI for Centralized OLT Management, Configuration and Monitoring |
| GENERAL | |
|---|---|

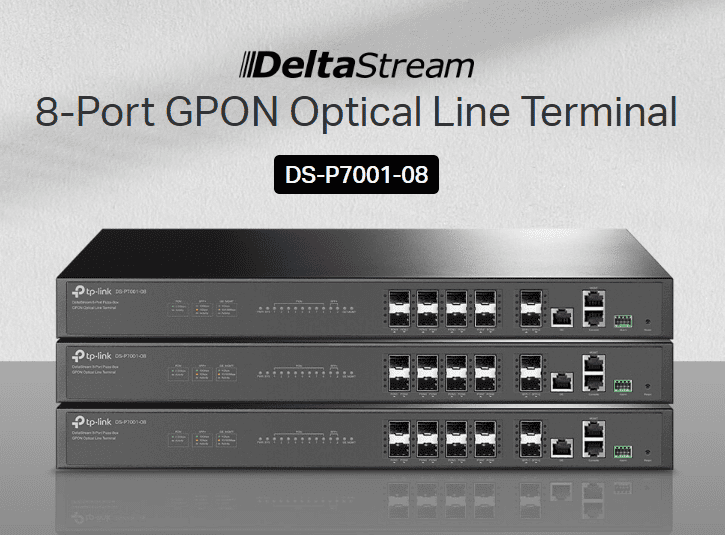

| Device Type | DeltaStream 8-Port GPON Optical Line Terminal |
| Installation Method | 19-inch Rack Mount / Desktop Installation |
| Fiber Interface | 8 × GPON Ports, SC/UPC |
| Uplink Interface | 2 × 10G SFP+ + 1 × Gigabit RJ45 |
| Management Interface | RJ45 Management Port and RJ45 Console Port |
| Maximum GPON Distance | Up to 20 km |
| Maximum ONTs | 1,024 ONTs at 1:128 Split Ratio |
| Power Supply | Dual AC/DC Power Supplies; AC 100–240 V, 50/60 Hz; DC -38.4 to -72 V |
| Management | DPMS, SNMP, CLI and Web UI |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -40°C to +70°C |

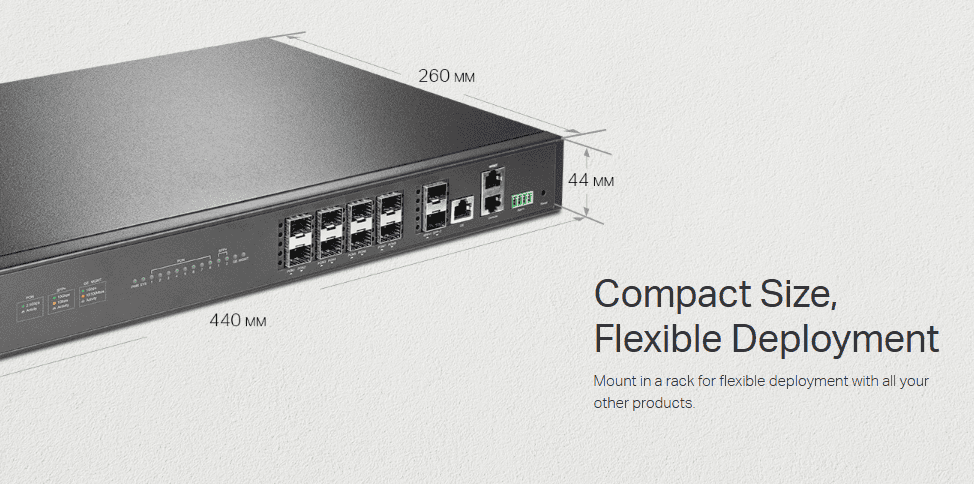

| Dimensions | 440 × 260 × 44 mm |
| Standards Compliance | ITU-T G.984.x, IEEE 802.1p, IEEE 802.1Q and IEEE 802.3 |
| Certification | CE, FCC |
Note: The TP-Link DS-P7001-08 is an 8-port DeltaStream GPON Optical Line Terminal designed for high-density FTTH and broadband access networks. It features eight 2.5G GPON ports with up to a 1:128 split ratio per port, supporting up to 1,024 ONTs from a single device. It also provides two 10G SFP+ uplink ports and one Gigabit RJ45 uplink port for high-speed network aggregation.
Important: The TP-Link DS-P7001-08 supports dual hot-swappable AC/DC power supplies, ONU auto authentication, Rogue ONU detection and isolation, QoS, IGMP/MLD Snooping and static routing. Centralized management is available through DeltaStream PON Management System (DPMS), SNMP, CLI and Web UI, making it suitable for ISP, FTTH, FTTB and enterprise fiber access deployments.
