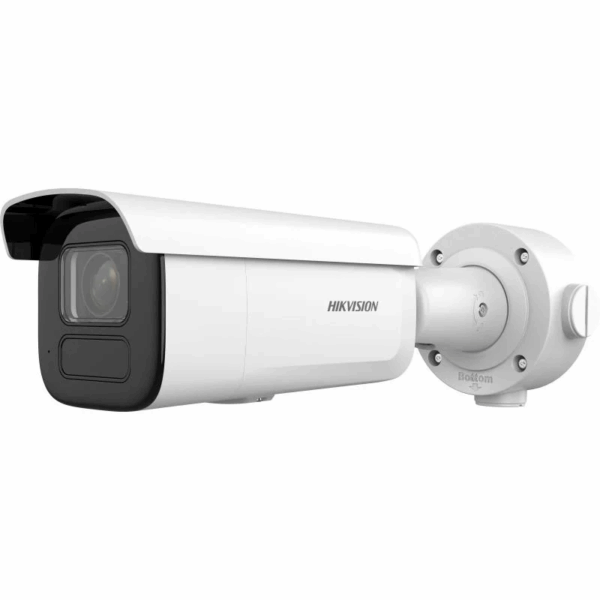

Specifications Hikvision DS-2CD3643G2-IZS
| Features | Description |
|---|---|
| Product Type | 4 MP AcuSense Motorized Varifocal Bullet Network Camera |
| Image Sensor | 1/3″ Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 |
| Frame Rate | Up to 25 fps at 50 Hz / 30 fps at 60 Hz |
| Minimum Illumination | Color: 0.005 Lux @ F1.6, AGC ON; B/W: 0 Lux with IR |
| Lens Type | Motorized Varifocal Lens |
| Focal Length | 2.7 to 13.5 mm |
| Horizontal Field of View | 102° to 31° |
| IR Range | Up to 60 m |
| WDR | 120 dB True WDR |
| Video Compression | H.265+, H.265, H.264+, H.264 |
| Smart Features | AcuSense, Human and Vehicle Classification, Face Capture, Perimeter Protection |
| Audio | 1 Audio Input / 1 Audio Output |
| Alarm | 1 Alarm Input / 1 Alarm Output |
| Network Interface | 1 × RJ45 10/100 Mbps Ethernet |
| Power Supply | 12 VDC or PoE (IEEE 802.3at, Class 4) |
| Power Consumption | Max. 13 W (12 VDC) / Max. 15 W (PoE) |
| Protection | IP67, IK10 |
| Camera Type | Bullet |
| SMART FEATURES | Description |
|---|---|
| AcuSense Technology | Deep learning-based human and vehicle target classification |
| Perimeter Protection | Line Crossing, Intrusion Detection, Region Entrance, and Region Exiting |
| Face Capture | Supports face capture |
| Smart Events | Unattended Baggage Detection, Object Removal Detection, Loitering Detection, People Gathering Detection, People Running Detection, and Parking Detection |
| Smart Supplement Light | Automatically adjusts IR illumination according to the scene |
| GENERAL | Description |
|---|---|
| Dimensions | 332.8 mm × 97.9 mm × 94.2 mm |
| Material | Aluminum Alloy |
| Operating Temperature | -30°C to 60°C |
| Operating Humidity | 95% or less, non-condensing |
| Weight | Approx. 1.53 kg |
Note: The Hikvision DS-2CD3643G2-IZS is a 4 MP AcuSense motorized varifocal bullet network camera featuring a 2.7 to 13.5 mm lens, 120 dB True WDR, H.265+ compression, up to 60 m IR illumination, and deep learning-based human and vehicle classification.
Important: The camera supports PoE (IEEE 802.3at) for convenient installation and is designed for outdoor applications with IP67 weather resistance and IK10 vandal resistance.
