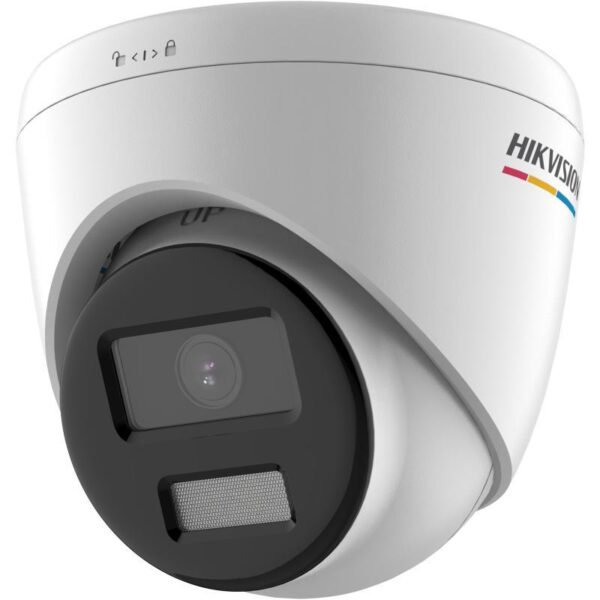

Specifications Hikvision DS-2CD1347G2H-LIU
| Features | Description |
|---|---|
| Product Type | 4MP ColorVu Smart Hybrid Light Fixed Turret Network Camera |
| Image Sensor | 1/3″ Progressive Scan CMOS |
| Maximum Resolution | 4MP (2560 × 1440) |
| Lens | Fixed-focal 2.8mm / 4mm |
| Aperture | F1.0 |
| Minimum Illumination | 0.001 Lux @ F1.0, 0 Lux with Light |
| Smart Hybrid Light | IR and White Light up to 30m |
| WDR | 120dB |
| AI Detection | Human and Vehicle Detection |
| Audio | Built-in Microphone |
| Storage | MicroSD Card up to 512GB |
| Network | 1 × 10/100Mbps RJ45 Ethernet |
| PoE | IEEE 802.3af |
| Protection | IP67 |
| CAMERA | |
|---|---|
| Image Sensor | 1/3″ Progressive Scan CMOS |
| Maximum Resolution | 2560 × 1440 |
| Minimum Illumination | Color: 0.001 Lux @ F1.0, AGC ON; 0 Lux with Light |
| Shutter Time | 1/3s to 1/100,000s |
| Day/Night | IR Cut Filter |
| Wide Dynamic Range | 120dB WDR |
| Digital Noise Reduction | 3D DNR |
| Image Enhancement | BLC, HLC, WDR and Defog |
| Angle Adjustment | Pan: 0° to 360° / Tilt: 0° to 75° / Rotate: 0° to 360° |
| LENS | |
|---|---|
| Lens Type | Fixed-focal Lens |
| Focal Length | 2.8mm / 4mm Optional |
| Lens Mount | M12 |
| Aperture | F1.0 |
| Horizontal FOV | 2.8mm: 96° / 4mm: 80° |
| Vertical FOV | 2.8mm: 52° / 4mm: 43° |
| Diagonal FOV | 2.8mm: 114° / 4mm: 93° |
| DORI | |
|---|---|
| 2.8mm | Detect: 63m / Observe: 25m / Recognize: 12m / Identify: 6m |
| 4mm | Detect: 77m / Observe: 30m / Recognize: 15m / Identify: 7m |
| SMART HYBRID LIGHT | |
|---|---|
| Supplement Light | IR and White Light |
| Illumination Distance | Up to 30m |
| Smart Supplement Light | Supported |
| IR Wavelength | 850nm |
| VIDEO | |
|---|---|
| Main Stream | 2560 × 1440 @ 20fps; 1920 × 1080 / 1280 × 720 @ 25fps |
| Sub-Stream | 1280 × 720 / 640 × 480 / 640 × 360 @ 25fps |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Sub-Stream Compression | H.265 / H.264 / MJPEG |
| Video Bit Rate | 32Kbps to 8Mbps |
| Bit Rate Control | CBR / VBR |
| ROI | 1 Fixed Region for Main Stream |
| SVC | H.264 and H.265 Encoding |
| DETECTION | |
|---|---|
| Motion Detection | Supported |
| Human Detection | Supported |
| Vehicle Detection | Supported |
| Line Crossing | Supported |
| Intrusion Detection | Supported |
| Region Entrance Detection | Supported |
| Region Exiting Detection | Supported |
| AUDIO | |
|---|---|
| Audio Type | Mono Sound |
| Microphone | Built-in Microphone |
| Audio Compression | G.711 / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC |
| NETWORK | |
|---|---|
| Network Interface | 1 × RJ45 10/100Mbps Self-Adaptive Ethernet Port |
| Network Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, SNMP, IPv6 and more |
| ONVIF | Supported |
| API | ISAPI / SDK / CGI |
| Security | Password Protection, HTTPS Encryption, IP Address Filtering and User Authentication |
| STORAGE | |
|---|---|
| Memory Card | MicroSD / SDHC / SDXC |
| Maximum Capacity | Up to 512GB |
| Storage Functions | Local Recording, Playback and ANR |
| POWER | |
|---|---|
| Power Supply | 12VDC ±25% |
| PoE | IEEE 802.3af, Class 3 |
| Power Consumption | Maximum 7.5W |
| GENERAL | |
|---|---|
| Protection | IP67 |
| Operating Temperature | -30°C to 60°C |
| Operating Humidity | ≤95% RH, Non-Condensing |
| Material | Metal |
Note: The Hikvision DS-2CD1347G2H-LIU is a 4MP ColorVu Smart Hybrid Light fixed turret network camera featuring a 1/3″ Progressive Scan CMOS sensor, F1.0 fixed-focal lens, 120dB WDR, Smart Hybrid Light up to 30m, human and vehicle detection, built-in microphone, MicroSD storage up to 512GB and IP67 protection.
Important: The model is available with 2.8mm or 4mm fixed-focal lenses. The 2.8mm version provides a wider field of view, while the 4mm version provides a narrower view and slightly longer DORI distances.
