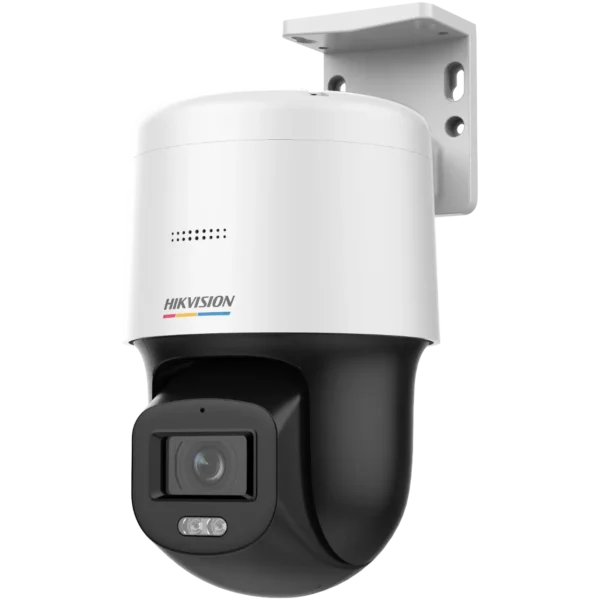

Specifications Hikvision DS-2DE2C400SCG-E
| Features |
Description |
| Product Type |
4MP ColorVu Mini PT Dome Network Camera |
| Image Sensor |
1/1.8″ Progressive Scan CMOS |
| Maximum Resolution |
4MP (2560 × 1440) |
| Lens |
Fixed Focal Lens, 2.8 mm / 4 mm |
| Aperture |
F1.0 |
| ColorVu |
24/7 Color Imaging |
| White Light Range |
Up to 30 m |
| Wide Dynamic Range |
Digital WDR |
| PTZ |
Pan: 0° to 340°, Tilt: -5° to 105° |
| Video Compression |
H.265 / H.264 / MJPEG |
| Audio |
Built-in Microphone and Speaker |
| Network Interface |
1 × RJ45 10/100 Mbps |
| Storage |
MicroSD / SDHC / SDXC, up to 256 GB |
| PoE |
IEEE 802.3af |
| Protection |
IP66 |
| CAMERA |
| Image Sensor |
1/1.8″ Progressive Scan CMOS |
| Maximum Resolution |
2560 × 1440 |
| Minimum Illumination |
0.001 Lux @ F1.0, AGC ON; 0 Lux with Light |
| Day & Night |
ColorVu 24/7 Color Imaging |
| Wide Dynamic Range |
Digital WDR |
| Image Enhancement |
BLC / HLC / 3D DNR |
| LENS |
| Lens Type |
Fixed Focal Lens |
| Focal Length |
2.8 mm / 4 mm |
| Aperture |
F1.0 |
| 2.8 mm FOV |
Horizontal: 105.7° / Vertical: 57.3° / Diagonal: 124.9° |
| 4 mm FOV |
Horizontal: 88.7° / Vertical: 44.7° / Diagonal: 107.5° |
| ILLUMINATOR |
| Supplement Light Type |
White Light |
| White Light Range |
Up to 30 m |
| Smart Supplement Light |
Supported |
| PTZ |
| Pan Range |
0° to 340° |
| Tilt Range |
-5° to 105° |
| Pan Speed |
Configurable 4° to 21°/s |
| Tilt Speed |
Configurable 4° to 19°/s |
| VIDEO |
| Main Stream |
50 Hz: 25 fps @ 2560 × 1440
60 Hz: 30 fps @ 2560 × 1440 |
| Sub-Stream |
50 Hz: 25 fps / 60 Hz: 30 fps |
| Video Compression |
H.265 / H.264 / MJPEG |
| Video Bit Rate |
32 Kbps to 8 Mbps |
| AUDIO |
| Microphone |
Built-in Microphone |
| Speaker |
Built-in Speaker |
| Audio Compression |
G.711 / G.722.1 / G.726 / MP2L2 / AAC-LC / PCM |
| Noise Filtering |
Supported |
| NETWORK & STORAGE |
| Network Interface |
1 × RJ45 10/100 Mbps Ethernet |
| Protocols |
IPv4 / IPv6 / HTTP / HTTPS / RTSP / RTP / TCP/IP / UDP / DHCP / DNS / DDNS / NTP / Bonjour |
| API |
ONVIF / ISAPI / SDK |
| Memory Card |
MicroSD / SDHC / SDXC up to 256 GB |
| POWER & GENERAL |
| Power Supply |
12 VDC, 0.6 A, Max. 7.2 W |
| PoE |
IEEE 802.3af, Max. 10 W |
| Protection |
IP66 |
| Operating Temperature |
-30°C to 40°C with supplement light on
-30°C to 50°C with supplement light off |
| Operating Humidity |
≤95% RH, Non-Condensing |
| Dimensions |
162 × 120 × 234.2 mm |
| Weight |
Approx. 780 g |
Note: The Hikvision DS-2DE2C400SCG-E is a 4MP ColorVu Mini PT Dome Network Camera featuring a 1/1.8″ CMOS sensor, 2560 × 1440 resolution, F1.0 aperture, 24/7 ColorVu imaging, white light up to 30 m, pan and tilt control, built-in microphone and speaker, microSD storage up to 256 GB, PoE, and IP66 protection.
