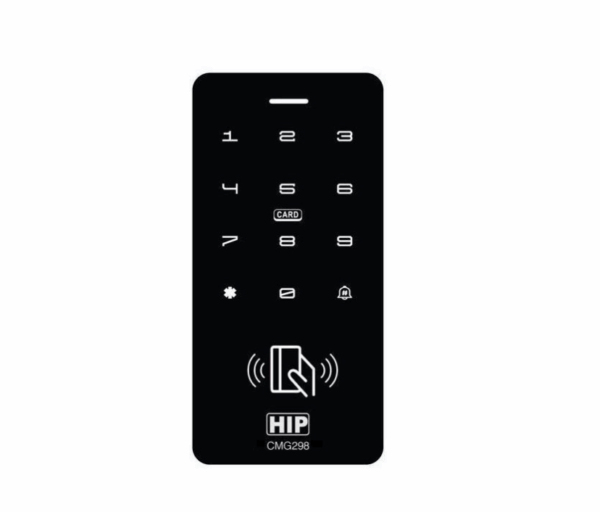

Specifications HIP CMG298
| Features | Description |
|---|---|
| Product Type | Standalone RFID Card Reader / Access Control |
| Capacity | 1,000 Users |
| Access Mode | Card / Password |
| Card Type | EM (ID Card) / MF Card |
| Reading Frequency | 125 kHz / 13.56 MHz |
| Reading Range | 10–50 mm |
| Reading Speed | Less than 1 second |
| Wiegand Output | 26 Bit |
| Door Bell | Supported |
| Door Opening Time | 0–99 seconds, Adjustable |
| Protection | IP66 |
| Electrical & Environmental | Description |
|---|---|
| Working Voltage | 12 VDC |
| Operating Current | < 30 mA |
| Working Temperature | -20°C to 70°C |
| Operating Humidity | 10% RH to 90% RH |
| Physical Characteristics | Description |
|---|---|
| Dimension | 139 × 16 × 69 mm |
Note: The HIP CMG298 is a standalone RFID card reader and access control device supporting up to 1,000 users. It supports both EM (ID) 125 kHz and MF 13.56 MHz cards, as well as password access. The device provides 26-bit Wiegand output and supports door bell connection for access control applications.
Important: The CMG298 features an IP66-rated enclosure for indoor and outdoor installation and operates on 12 VDC. It can be used independently as a standalone access controller or configured as a Wiegand card reader connected to an external controller.
