Mechanical Specifications
| Dimensions (H X W X D) Weight |
360 X 422 X 122.8 mm (Front Facia), 360 X 380 X 92.3 mm (Back Box) 5.8 Kg Approx. (No Battery Fitted) |
| Construction | Powder coated Cold Rolled STEEL 1.2mm thick |
| Cable Entry Operating Temperature |
15 X 20mm Knockout 0 to 49°C |
| Relative Humidity | 5% to 95% Non-Condensing |
Electrical Specifications
| Operating Voltage | 230V-AC +/- 20% Output current 2A maximum, Alarm Load 1A Maximum |
| Standby Batteries | Minimum capacity 2 x 12 V 2.8Ah, Maximum capacity 2 x 12 V 7 Ah |
| Detection Circuits | 2, 4, 6, 8 Class B Circuit, Max 2mA per Detect or Circuit |

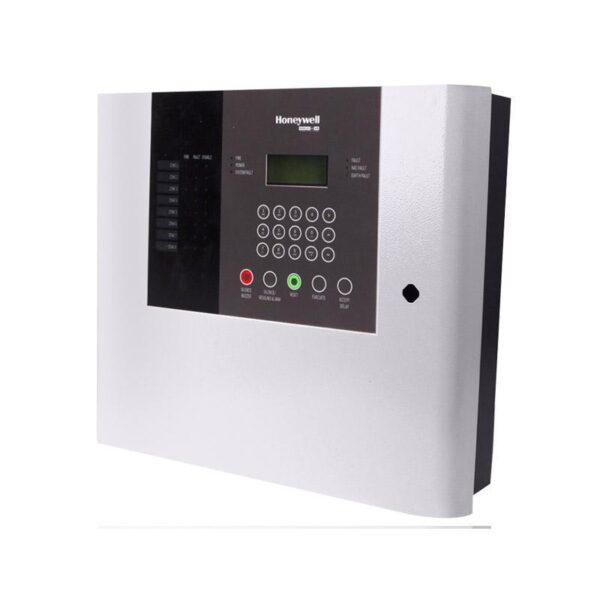

| Approved Detectors | Honeywell Morley Lite Series |
| Programmable Inputs Programmable Input |
Configurable (Alarm, Reset, Evacuate) Extended closing contact |
Trigger External Outputs
Sounder Outputs:
• 2 monitored outputs
• 0.5 Amps per circuit
Auxiliary Output:
• 18.5 to +28.5 Vdc, 0.5 Amp. (max)
