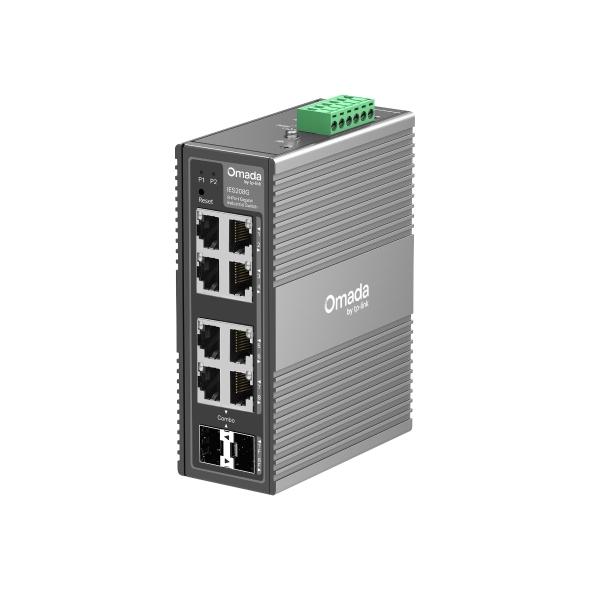

Specifications TP-Link IES208G
| Features | Description |
|---|---|
| Device Type | 8-Port Gigabit Industrial Easy Managed Switch |
| Network Ports | 6 × 10/100/1000 Mbps RJ45 Ports |
| Combo Ports | 2 × Gigabit Combo RJ45/SFP Slots |
| Switching Capacity | 16 Gbps |
| Packet Forwarding Rate | 11.9 Mpps |
| MAC Address Table | 8K |
| Management | Web Management, Omada App and Omada Cloud Management |
| Industrial Protection | 6 kV Lightning Protection, Overload Current Protection, Overvoltage Protection and Reverse Polarity Protection |
| Power Input | 9.6–60 VDC Dual Redundant Power Input |
| Operating Temperature | -40°C to +75°C |
| Enclosure | IP40 Aluminum Casing |
| Application | Industrial Automation, CCTV, Outdoor Networks, Traffic Systems, Smart Factory and Industrial Ethernet Networks |
| Interface | 6 × 10/100/1000 Mbps RJ45 + 2 × Gigabit Combo RJ45/SFP Slots |
|---|---|
| Port Standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x |
| VLAN Standard | IEEE 802.1Q |
| Spanning Tree | IEEE 802.1d STP and IEEE 802.1w RSTP |
| Switching Capacity | 16 Gbps |
| Packet Forwarding Rate | 11.9 Mpps |
| MAC Address Table | 8K |
| Packet Buffer | 4 Mbit |
| Jumbo Frame | 15 KB |
| Transmission Method | Store-and-Forward |
| Flash Memory | 64 Mbit |
| Power Input | 9.6–60 VDC |
| Power Redundancy | 1+1 Dual Redundant DC Power Input |
| Fault Relay | 24 V / 1 A Maximum, Normally Closed Contact |
| Surge Protection | 6 kV Lightning Protection |
| Overload Protection | Supported |
| Overvoltage Protection | Supported |
| Reverse Polarity Protection | Supported |
| Fan | Fanless |
| SMART FEATURES | |
|---|---|
| Industrial Gigabit Connectivity | Provides 6 Gigabit RJ45 Ports and 2 Gigabit Combo RJ45/SFP Ports for Flexible Copper and Fiber Network Connectivity |
| Industrial-Grade Protection | Supports 6 kV Lightning Protection, Overload Protection, Overvoltage Protection and Reverse Polarity Protection for Harsh Industrial Environments |
| Dual Redundant Power | Supports 9.6–60 VDC Dual Redundant Power Input to Improve System Reliability and Network Availability |
| VLAN Support | Supports IEEE 802.1Q VLAN for Network Segmentation and Traffic Isolation |
| STP/RSTP | Supports STP and RSTP to Prevent Network Loops and Improve Network Redundancy |
| QoS | Supports 802.1p/DSCP Priority, Multiple Priority Queues, WRR Scheduling, Bandwidth Control and Storm Control |
| Omada Management | Supports Centralized Management Through Web Interface, Omada App and Omada Cloud Management |
| Fanless Design | Fanless Industrial Construction Provides Silent Operation and Improved Reliability in Dust-Prone Environments |
| GENERAL | |
|---|---|
| Switch Type | Industrial Easy Managed Gigabit Switch |
| Network Ports | 6 × 10/100/1000 Mbps RJ45 |
| Combo Ports | 2 × Gigabit RJ45/SFP Combo |
| Installation Method | DIN-Rail Mount / Wall Mount |
| Enclosure | IP40 Aluminum Casing |
| Power Input | 9.6–60 VDC |
| Power Redundancy | 1+1 Dual Redundant Power Input |
| Maximum Power Consumption | 4.46 W at 12 VDC; 4.17 W at 24 VDC; 5.99 W at 48 VDC |
| Standby Power Consumption | 1.79 W at 12 VDC; 2.16 W at 24 VDC; 3.17 W at 48 VDC |
| Operating Temperature | -40°C to +75°C |
| Storage Temperature | -40°C to +85°C |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Storage Humidity | 5% to 90% RH, Non-Condensing |
| Dimensions | 129 × 95 × 45 mm |
| Mounting | DIN-Rail / Wall Mount |
| Certification | FCC, CE and RoHS |
Note: The TP-Link IES208G is an 8-port Gigabit Industrial Easy Managed Switch featuring 6 × Gigabit RJ45 ports and 2 × Gigabit Combo RJ45/SFP slots. It provides 16 Gbps switching capacity, 11.9 Mpps forwarding performance, VLAN, QoS, STP/RSTP and centralized Omada management, making it suitable for industrial Ethernet, CCTV, outdoor network and automation applications.
Important: The TP-Link IES208G is designed for harsh industrial environments with an operating temperature of -40°C to +75°C, 6 kV lightning protection, IP40 aluminum housing and 1+1 redundant 9.6–60 VDC power input. It also supports DIN-rail and wall mounting for installation inside industrial cabinets and network enclosures.
