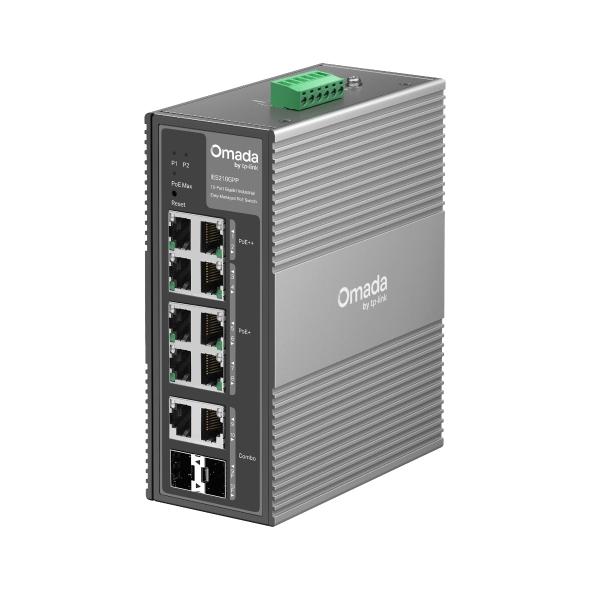

Specifications TP-Link IES210GPP
| Features | Description |
|---|---|
| Device Type | 10-Port Gigabit Industrial Easy Managed PoE++ Switch |
| Network Ports | 8 × 10/100/1000 Mbps RJ45 Ports |
| PoE++ Ports | 2 × Gigabit PoE++ RJ45 Ports, Up to 60 W per Port |
| PoE+ Ports | 6 × Gigabit PoE+ RJ45 Ports, Up to 30 W per Port |
| Combo Ports | 2 × Gigabit RJ45/SFP Combo Slots |
| PoE Standard | IEEE 802.3af/at/bt |
| PoE Budget | Up to 240 W |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| MAC Address Table | 8K |
| Power Input | 12–57 VDC, 1+1 Redundant Power Input |
| Operating Temperature | -40°C to +75°C |
| Enclosure | IP40 Aluminum Casing |
| Application | Industrial Automation, CCTV, Smart Buildings, Energy Systems and Industrial Ethernet Networks |
| Interface | 2 × 10/100/1000 Mbps PoE++ RJ45 + 6 × 10/100/1000 Mbps PoE+ RJ45 + 2 × Gigabit RJ45/SFP Combo Slots |
|---|---|
| PoE Standard | IEEE 802.3af/at/bt |
| PoE++ Ports | 2 Ports, Up to 60 W per Port |
| PoE+ Ports | 6 Ports, Up to 30 W per Port |
| Total PoE Budget | Up to 240 W |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4 Mbit |
| Jumbo Frame | 15 KB |
| Transmission Method | Store-and-Forward |
| Power Input | 12–57 VDC |
| Power Redundancy | 1+1 Dual Redundant DC Power Input |
| Surge Protection | ±6 kV Common Mode for Ethernet Ports; ±4 kV Common Mode for DC Power Input |
| PoE Transmission Distance | Up to 250 m in Extend Mode |
| Fan | Fanless |
| SMART FEATURES | |
|---|---|
| PoE++ 60W | Provides 2 Gigabit PoE++ Ports Delivering Up to 60 W per Port for High-Power PoE Devices |
| 6-Port PoE+ | Provides 6 Gigabit PoE+ Ports Supporting IEEE 802.3af/at Devices with Up to 30 W per Port |
| 240W PoE Budget | Provides Up to 240 W Total PoE Power for High-Density IP Camera, Access Point and Industrial PoE Deployments |
| 250m PoE Extend | Extends PoE Data and Power Transmission up to 250 m for Long-Distance Surveillance and Industrial Applications |
| Dual Redundant Power | Supports 12–57 VDC 1+1 Redundant Power Input to Maintain Operation if One Power Supply Fails |
| Industrial Protection | Provides ±6 kV Surge Protection on Ethernet Ports and ±4 kV Surge Protection on DC Power Inputs |
| VLAN | Supports MTU VLAN, Port-Based VLAN and 802.1Q Tag VLAN with up to 32 VLAN Groups |
| QoS | Supports 802.1p/DSCP Priority, 8 Priority Queues, WRR, Bandwidth Control and Storm Control |
| STP/RSTP | Supports STP and RSTP for Network Loop Prevention and Redundancy |
| Omada Management | Supports Web-Based Management, Omada App, Omada Cloud-Based Controller, Hardware Controller and Software Controller |
| Fanless Design | Fanless Industrial Construction Provides Silent Operation and Improved Reliability in Harsh Environments |
| GENERAL | |
|---|---|
| Switch Type | Industrial Easy Managed Gigabit PoE++ Switch |
| PoE Ports | 2 × PoE++ + 6 × PoE+ |
| Combo Ports | 2 × Gigabit RJ45/SFP Combo |
| PoE Budget | Up to 240 W |
| Installation Method | DIN-Rail Mount / Wall Mount |
| Enclosure | IP40 Aluminum Casing |
| Power Input | 12–57 VDC |
| Power Redundancy | 1+1 Redundant DC Power Input |
| Dimensions | 155 × 120 × 60 mm |
| Operating Temperature | -40°C to +75°C |
| Storage Temperature | -40°C to +85°C |
| Operating Humidity | 5% to 95% RH, Non-Condensing |
| Storage Humidity | 5% to 95% RH, Non-Condensing |
| Certification | FCC, CE and RoHS |
Note: The TP-Link IES210GPP is a 10-port Gigabit Industrial Easy Managed PoE++ Switch featuring 2 × Gigabit PoE++ ports with up to 60 W per port, 6 × Gigabit PoE+ ports with up to 30 W per port and 2 × Gigabit RJ45/SFP Combo slots. It provides up to 240 W total PoE budget and is designed for industrial, surveillance, smart building and automation networks.
Important: The TP-Link IES210GPP supports 12–57 VDC 1+1 redundant power input, ±6 kV Ethernet surge protection, ±4 kV DC power surge protection, -40°C to +75°C operating temperature and IP40 aluminum housing. It also supports up to 250 m PoE transmission, VLAN, QoS, STP/RSTP and centralized Omada management.
