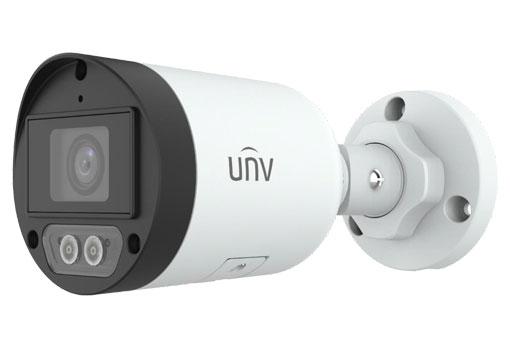

Specifications Uniview IPC2122LB-AF40K-WL
| Features | Description |
|---|---|
| Device Type | 2MP ColorHunter Mini Fixed Bullet Network Camera |
| Image Sensor | 1/2.9″ Progressive Scan CMOS |
| Maximum Resolution | 1920 × 1080 |
| Lens | 4.0mm Fixed Lens |
| Field of View | 83.7° Horizontal |
| WDR | DWDR |
| Minimum Illumination | 0.005 Lux (F1.6, AGC ON) |
| Warm Light Range | Up to 30m |
| Video Compression | Ultra 265 / H.265 / H.264 |
| Smart Features | Motion Detection, Audio Detection, Smart Illumination |
| Audio | Built-in Microphone |
| Storage | MicroSD up to 128GB |
| Protection | IP67 |
| Power | DC 12V ±25% / PoE (IEEE 802.3af) |
| CAMERA | |
|---|---|
| Image Sensor | 1/2.9″, 2.0 Megapixel Progressive Scan CMOS |
| Maximum Resolution | 1920 × 1080 |
| Minimum Illumination | Color: 0.005 Lux (F1.6, AGC ON), 0 Lux with Warm Light |
| Shutter | Auto / Manual, 1 ~ 1/100000s |
| WDR | DWDR |
| S/N | >52dB |
| Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° |
| LENS | |
|---|---|
| Lens Type | Fixed |
| Focal Length | 4.0mm |
| Iris | F1.6, Fixed |
| Horizontal Field of View | 83.7° |
| Vertical Field of View | 44.6° |
| Diagonal Field of View | 89.1° |
| DORI | |
|---|---|
| Detect | 64.3m |
| Observe | 25.7m |
| Recognize | 12.9m |
| Identify | 6.4m |
| VIDEO | |
|---|---|
| Video Compression | Ultra 265 / H.265 / H.264 |
| H.264 Profile | Baseline Profile / Main Profile / High Profile |
| Main Stream | 2MP (1920 × 1080), Max 30fps; 720P (1280 × 720), Max 30fps |
| Sub Stream | D1 (720 × 576), Max 30fps; 640 × 360, Max 30fps; 2CIF (704 × 288), Max 30fps; CIF (352 × 288), Max 30fps |
| Video Bit Rate | 128Kbps ~ 6144Kbps |
| Video Stream | Dual Streams |
| U-Code | Supported on Main Stream |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 Areas |
| ROI | Up to 8 Areas |
| IMAGE | |
|---|---|
| Day/Night | ColorHunter Full-Color |
| White Balance | Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2 |
| Digital Noise Reduction | 2D / 3D DNR |
| Smart Illumination | Supported |
| HLC | Supported |
| BLC | Supported |
| Defog | Digital Defog |
| Image Flip | Normal / Vertical / Horizontal / 180° |
| SMART FEATURES | |
|---|---|
| Motion Detection | Supported |
| Audio Detection | Supported |
| Smart Illumination | Supported |
| ILLUMINATOR | |
|---|---|
| Light Type | Warm Light |
| Warm Light Range | Up to 30m |
| Light On/Off Control | Auto / Manual |
| AUDIO | |
|---|---|
| Built-in Microphone | Supported |
| Audio Compression | G.711U / G.711A |
| Audio Bit Rate | 64Kbps |
| Audio Sampling Rate | 8KHz |
| Audio Suppression | Supported |
| Two-Way Audio | Not Supported |
| STORAGE | |
|---|---|
| Edge Storage | MicroSD, Up to 128GB |
| Network Storage | ANR / NAS |
| NETWORK | |
|---|---|
| Network Interface | 1 × RJ45 10/100Mbps Base-TX Ethernet |
| ONVIF | Profile S / Profile T / Profile G |
| Compatible Integration | ONVIF / API / SDK |
| Network Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, QoS, SSL/TLS |
| Users | Up to 32 Users, 2 User Levels |
| Client | EZStation / EZView / EZLive / Web Browser |
| INTERFACE | |
|---|---|
| Network | 1 × RJ45 10/100Mbps Base-TX Ethernet |
| Built-in Microphone | Supported |
| Built-in Speaker | Not Supported |
| Audio I/O | Not Supported |
| Alarm I/O | Not Supported |
| Serial Port | Not Supported |
| Wi-Fi | Not Supported |
| Video Output | Not Supported |
| POWER & PROTECTION | |
|---|---|
| Power Supply | DC 12V ±25% / PoE (IEEE 802.3af) |
| Maximum Power Consumption | 7.8W |
| Power Interface | Ø5.5mm Coaxial Power Plug |
| Surge Protection | 4KV |
| Protection | IP67 |
| CERTIFICATION | |
|---|---|
| EMC | CE-EMC / FCC |
| Safety | CE LVD / CB / UL/CUL |
| Environment | CE-RoHS / WEEE |
| PHYSICAL & ENVIRONMENT | |
|---|---|
| Dimensions | 162 × 67 × 67mm |
| Weight | 0.24kg |
| Material | Metal + Plastic |
| Operating Temperature | -30°C to 60°C |
| Operating Humidity | ≤95% RH, Non-Condensing |
| Storage Temperature | -30°C to 60°C |
| Storage Humidity | ≤95% RH, Non-Condensing |
Note: The Uniview IPC2122LB-AF40K-WL is a 2MP ColorHunter Mini Fixed Bullet Network Camera featuring a 1/2.9″ progressive scan CMOS sensor, 4.0mm fixed F1.6 lens, 1920 × 1080 resolution at up to 30fps, DWDR and an 83.7° horizontal field of view. It supports Ultra 265/H.265/H.264 compression, ColorHunter full-color imaging, warm light illumination up to 30m, built-in microphone, MicroSD storage up to 128GB, PoE (IEEE 802.3af) and IP67 protection.
Important: The IPC2122LB-AF40K-WL is a Fixed Bullet Camera, not a Dome, Turret or PTZ camera. It uses a 4.0mm fixed F1.6 lens with an approximately 83.7° horizontal field of view. The DORI distances are up to 64.3m Detect, 25.7m Observe, 12.9m Recognize and 6.4m Identify. It supports ColorHunter, warm light up to 30m, PoE (IEEE 802.3af), IP67, built-in microphone and MicroSD storage up to 128GB.
