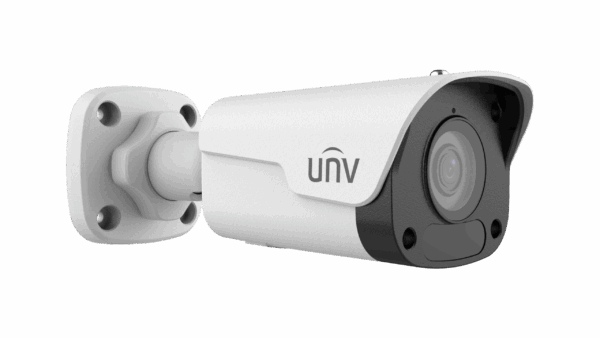

Specifications Uniview IPC2124LB-ADF40KM-H

Features	Description
Device Type	4MP Mini Fixed Bullet Network Camera
Image Sensor	1/2.9″ Progressive Scan CMOS
Maximum Resolution	2560 × 1440
Lens	4.0mm Fixed Lens
Field of View	84.1° Horizontal
WDR	120dB True WDR
IR Range	Up to 30m
Video Compression	Ultra 265 / H.265 / H.264 / MJPEG
Smart Features	Smart Motion Detection
Audio	Not Supported
Storage	MicroSD up to 128GB
Protection	IP67
Power	DC 12V ±25% / PoE (IEEE 802.3af)

CAMERA
Image Sensor	1/2.9″, 4.0 Megapixel Progressive Scan CMOS
Maximum Resolution	2560 × 1440
Minimum Illumination	Color: 0.01 Lux (F2.0, AGC ON), 0 Lux with IR
Day/Night	IR-Cut Filter with Auto Switch (ICR)
Shutter	Auto / Manual, 1 ~ 1/100000s
WDR	120dB True WDR
S/N	>52dB
Adjustment Angle	Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°

LENS
Lens Type	Fixed-Focal
Focal Length	4.0mm
Iris	F2.0, Fixed
Horizontal Field of View	84.1°
Vertical Field of View	45.1°
Diagonal Field of View	89.5°

DORI
Detect	90m
Observe	36m
Recognize	18m
Identify	9m

VIDEO
Video Compression	Ultra 265 / H.265 / H.264 / MJPEG
Main Stream	4MP (2560 × 1440), Max 25fps; 3MP (2304 × 1296), Max 30fps; 1080P (1920 × 1080), Max 30fps; 720P (1280 × 720), Max 30fps
Sub Stream	D1 (720 × 576), Max 30fps; 640 × 360, Max 30fps; 2CIF (704 × 288), Max 30fps; CIF (352 × 288), Max 30fps
Video Bit Rate	128Kbps ~ 6144Kbps
Video Stream	Dual Streams
U-Code	Supported
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 Areas
ROI	Up to 8 Areas

White Balance	Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2
Digital Noise Reduction	2D / 3D DNR
Smart IR	Supported
HLC	Supported
BLC	Supported
Defog	Digital Defog
Image Flip	Normal / Vertical / Horizontal / 180° / 90° Clockwise / 90° Anti-clockwise

SMART FEATURES
Smart Motion Detection	Supported
Motion Detection	Supported
Tampering Alarm	Supported

ILLUMINATOR
Light Type	IR
IR Range	Up to 30m
IR Wavelength	850nm
IR Control	Auto / Manual
Smart IR	Supported

STORAGE
Edge Storage	MicroSD, Up to 128GB
Network Storage	ANR / NAS (NFS)

NETWORK
Network Interface	1 × RJ45 10/100Mbps Base-TX Ethernet
ONVIF	Profile S / Profile G / Profile T
Compatible Integration	ONVIF / API / SDK
Network Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, 802.1x, SNMP
Client	EZStation / EZView / EZLive / Web Browser

INTERFACE
Network	1 × RJ45 10/100Mbps Base-TX Ethernet
Audio	Not Supported
Alarm I/O	Not Supported
Wi-Fi	Not Supported
Video Output	Not Supported

POWER & PROTECTION
Power Supply	DC 12V ±25% / PoE (IEEE 802.3af)
Maximum Power Consumption	3.5W
Surge Protection	4KV
Protection	IP67

PHYSICAL & ENVIRONMENT
Material	Graphene + Metal
Operating Temperature	-30°C to 60°C
Operating Humidity	≤95% RH, Non-Condensing
Storage Temperature	-30°C to 60°C
Storage Humidity	≤95% RH, Non-Condensing
Surge Protection	4KV

Note: The Uniview IPC2124LB-ADF40KM-H is a 4MP Mini Fixed Bullet Network Camera featuring a 1/2.9″ progressive scan CMOS sensor, 4.0mm fixed F2.0 lens, 2560 × 1440 resolution at up to 25fps, 120dB True WDR and an 84.1° horizontal field of view. It supports Ultra 265/H.265/H.264/MJPEG compression, Smart IR up to 30m, Smart Motion Detection, MicroSD storage up to 128GB, PoE (IEEE 802.3af), IP67 protection and 4KV surge protection.

Important: The IPC2124LB-ADF40KM-H is a Fixed Bullet Camera, not a Dome, Turret or PTZ camera. It uses a 4.0mm fixed F2.0 lens with an 84.1° horizontal field of view. The 4mm version provides DORI distances of up to 90m Detect, 36m Observe, 18m Recognize and 9m Identify. It supports PoE (IEEE 802.3af) and IP67 weather protection.
