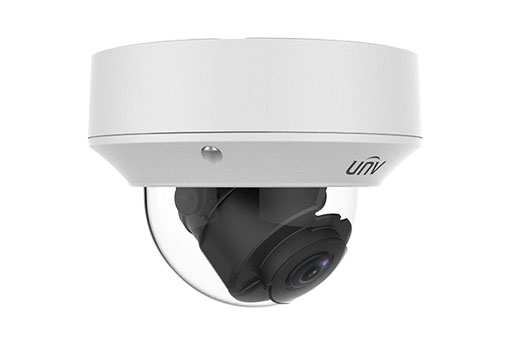

Specifications Uniview IPC3232SA-DZK

Features	Description
Device Type	2MP LightHunter Vandal-resistant Dome Network Camera
Image Sensor	1/2.7″ Progressive Scan CMOS
Maximum Resolution	1920 × 1080
Lens	2.7 ~ 13.5mm AF Automatic Focusing and Motorized Zoom Lens
Optical Zoom	5X
WDR	120dB
IR Range	Up to 40m
Minimum Illumination	0.001 Lux (F1.35, AGC ON), 0 Lux with IR
Video Compression	Ultra 265 / H.265 / H.264 / MJPEG
Audio	Audio Input / Audio Output, Two-Way Audio
Storage	MicroSD up to 256GB
Protection	IP67
Vandal Resistance	IK10

CAMERA
Image Sensor	1/2.7″, 2.0 Megapixel Progressive Scan CMOS
Maximum Resolution	1920 × 1080
Minimum Illumination	Color: 0.001 Lux (F1.35, AGC ON), 0 Lux with IR
Day/Night	IR-Cut Filter with Auto Switch (ICR)
Shutter	Auto / Manual, 1 ~ 1/100000s
WDR	120dB
S/N	>52dB
Adjustment Angle	Pan: 0° ~ 355°, Tilt: 0° ~ 68°, Rotate: 0° ~ 355°

LENS
Lens Type	AF Automatic Focusing and Motorized Zoom Lens
Focal Length	2.7 ~ 13.5mm
Iris	F1.35
Horizontal Field of View	114° ~ 31.8°
Vertical Field of View	58.9° ~ 17.6°
Diagonal Field of View	148.2° ~ 37.5°
Optical Zoom	5X

DORI
Detect	40.5m ~ 202.5m
Observe	16.2m ~ 81m
Recognize	8.1m ~ 40.5m
Identify	4.1m ~ 20.3m

VIDEO
Video Compression	Ultra 265 / H.265 / H.264 / MJPEG
Main Stream	2MP (1920 × 1080), Max 30fps
Sub Stream	D1 (720 × 576), Max 30fps
Third Stream	CIF (352 × 288), Max 30fps
Video Bit Rate	128Kbps ~ 16Mbps
Video Stream	Triple Streams
U-Code	Supported
9:16 Corridor Mode	Supported
OSD	Up to 8 OSDs
Privacy Mask	Up to 8 Areas
ROI	Up to 8 Areas

White Balance	Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2
Digital Noise Reduction	2D / 3D DNR
Smart IR	Supported
HLC	Supported
BLC	Supported
Defog	Digital Defog
Image Flip	Normal / Vertical / Horizontal / 180° / 90° Clockwise / 90° Anti-clockwise
Dewarping	Supported

SMART FEATURES
Motion Detection	Up to 4 Areas
Smart IR	Supported
Digital Defog	Supported
Corridor Mode	9:16 Supported

ILLUMINATOR
IR Range	Up to 40m
IR Wavelength	850nm
IR Control	Auto / Manual
Smart IR	Supported

AUDIO & ALARM
Audio Input	1 Channel
Audio Output	1 Channel
Audio Compression	G.711
Two-Way Audio	Supported
Sampling Rate	8KHz
Audio Suppression	Supported
Alarm Input	1 Channel
Alarm Output	1 Channel

STORAGE
Edge Storage	MicroSD, Up to 256GB
Network Storage	ANR / NAS (NFS)

NETWORK
Network Interface	1 × RJ45 10/100Mbps Base-TX Ethernet
ONVIF	Profile S / Profile G / Profile T
Compatible Integration	ONVIF / API
Network Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Client	EZStation / EZView / EZLive / Web Browser

POWER & GENERAL
Power Supply	DC 12V ±25% / PoE (IEEE 802.3af)
Maximum Power Consumption	7.2W
Protection	IP67
Vandal Resistance	IK10
Operating Temperature	-30°C to 60°C
Operating Humidity	≤95% RH, Non-Condensing
Dimensions	Φ148 × 111.3mm
Net Weight	0.96kg

Note: The Uniview IPC3232SA-DZK is a 2MP LightHunter Vandal-resistant Dome Network Camera featuring a 1/2.7″ progressive scan CMOS sensor, 2.7~13.5mm motorized zoom lens, 5X optical zoom, 120dB WDR and LightHunter technology for high-quality imaging in low-light environments. It supports Ultra 265/H.265/H.264/MJPEG compression, triple streams, two-way audio, MicroSD storage up to 256GB, PoE, IP67 and IK10 protection.

Important: The IPC3232SA-DZK is a Varifocal Dome Camera, not a fixed-lens camera and not a PTZ camera. It uses a 2.7~13.5mm motorized zoom lens with a 114°~31.8° horizontal field of view. IR reaches up to 40m, while power is supplied by DC 12V or PoE (IEEE 802.3af). The camera is rated IP67 and IK10 for outdoor and vandal-resistant applications.
