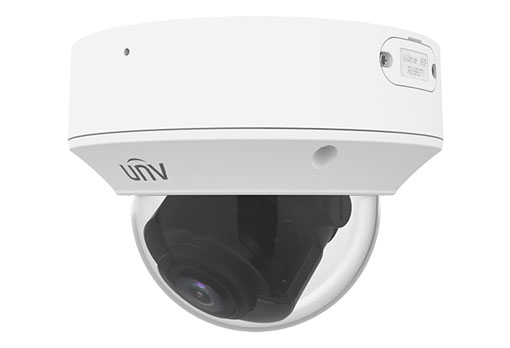

Specifications Uniview IPC3232SB-AHDZK-I0
| Features | Description |
|---|---|
| Device Type | 2MP LightHunter Motorized Varifocal IR Dome Network Camera |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Maximum Resolution | 1920 × 1080 |
| Lens | 2.7 ~ 13.5mm Motorized Varifocal Lens with AF |
| Optical Zoom | 5× |
| Field of View | 98.2° ~ 30.6° Horizontal |
| WDR | 120dB Optical WDR |
| IR Range | Up to 40m |
| Video Compression | Ultra 265 / H.265 / H.264 / MJPEG |
| Smart Features | Smart Intrusion Prevention, People Flow Counting and Crowd Density Monitoring |
| Audio | Built-in Microphone, Audio Input/Output and Two-Way Audio |
| Storage | MicroSD up to 256GB |
| Protection | IP67 / IK10 |
| Power | DC 12V ±25% / PoE (IEEE 802.3af) |
| CAMERA | |
|---|---|
| Image Sensor | 1/2.8″, 2.0 Megapixel Progressive Scan CMOS |
| Maximum Resolution | 1920 × 1080 |
| Minimum Illumination | Color: 0.001 Lux (F1.2, AGC ON), 0 Lux with IR |
| Day/Night | IR-Cut Filter with Auto Switch (ICR) |
| Shutter | Auto / Manual, 1 ~ 1/100000s |
| WDR | 120dB Optical WDR |
| S/N | >52dB |
| Adjustment Angle | Pan: 0° ~ 355°, Tilt: 0° ~ 70°, Rotate: 0° ~ 355° |
| LENS | |
|---|---|
| Lens Type | Motorized Varifocal |
| Focal Length | 2.7 ~ 13.5mm |
| Focus | AF Automatic Focusing |
| Zoom | 5× Optical Zoom |
| Iris | Fixed, F1.2 |
| Horizontal Field of View | 98.2° ~ 30.6° |
| Vertical Field of View | 53.3° ~ 17.3° |
| Diagonal Field of View | 127.7° ~ 37.6° |
| DORI | |
|---|---|
| 2.7mm – Detect | 70.9m |
| 2.7mm – Observe | 28.4m |
| 2.7mm – Recognize | 14.2m |
| 2.7mm – Identify | 7.1m |
| 13.5mm – Detect | 247.5m |
| 13.5mm – Observe | 99.0m |
| 13.5mm – Recognize | 49.5m |
| 13.5mm – Identify | 24.8m |
| VIDEO | |
|---|---|
| Video Compression | Ultra 265 / H.265 / H.264 / MJPEG |
| Main Stream | 1080P (1920 × 1080), Max 60fps |
| Sub Stream | 1080P (1920 × 1080), Max 60fps |
| Third Stream | D1 (720 × 576), Max 60fps |
| Video Bit Rate | 128Kbps ~ 16Mbps |
| Video Stream | Triple Streams |
| U-Code | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 Areas per Scene |
| ROI | Up to 8 Areas |
| IMAGE | |
|---|---|
| White Balance | Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2 |
| Digital Noise Reduction | 2D / 3D DNR |
| Smart IR | Supported |
| HLC | Supported |
| BLC | Supported |
| Defog | Digital Defog |
| Image Flip | Normal / Vertical / Horizontal / 180° / 90° Clockwise / 90° Anti-clockwise |
| SMART FEATURES | |
|---|---|
| Smart Intrusion Prevention | False Alarm Filtering for Human Body and Vehicle |
| Cross Line Detection | Supported |
| Intrusion Detection | Supported |
| Enter Area Detection | Supported |
| Leave Area Detection | Supported |
| Face Detection | Supported |
| Face Capture | Supported |
| People Flow Counting | Supported |
| Crowd Density Monitoring | Supported |
| Motion Detection | Supported |
| Audio Detection | Supported |
| Tampering Alarm | Supported |
| ILLUMINATOR | |
|---|---|
| Light Type | IR |
| IR Range | Up to 40m |
| IR Wavelength | 850nm |
| IR Control | Auto / Manual |
| Smart IR | Supported |
| AUDIO | |
|---|---|
| Audio Input | 1 × Audio Input |
| Audio Output | 1 × Audio Output |
| Built-in Microphone | Supported |
| Two-way Audio | Supported |
| Audio Sampling Rate | 8KHz |
| STORAGE | |
|---|---|
| Edge Storage | MicroSD, Up to 256GB |
| Network Storage | ANR / NAS (NFS) |
| NETWORK | |
|---|---|
| Network Interface | 1 × RJ45 10/100Mbps Base-TX Ethernet |
| ONVIF | Profile S / Profile G / Profile T |
| Compatible Integration | ONVIF / API / SDK |
| Network Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS |
| Client | EZStation / EZView / EZLive / Web Browser |
| INTERFACE | |
|---|---|
| Network | 1 × RJ45 10/100Mbps Base-TX Ethernet |
| Audio I/O | 1 × Input / 1 × Output |
| Alarm I/O | 2 × Input / 1 × Output |
| RS485 | 1 × RS485 |
| Video Output | 1 × BNC, for Debugging |
| POWER & PROTECTION | |
|---|---|
| Power Supply | DC 12V ±25% / PoE (IEEE 802.3af) |
| Maximum Power Consumption | 8W |
| Surge Protection | 6KV |
| Protection | IP67 |
| Vandal Resistance | IK10 |
| PHYSICAL & ENVIRONMENT | |
|---|---|
| Dimensions | Φ148 × 111.4mm |
| Weight | 0.93kg |
| Material | Metal |
| Operating Temperature | -30°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | ≤95% RH, Non-Condensing |
| Storage Humidity | ≤95% RH, Non-Condensing |
Note: The Uniview IPC3232SB-AHDZK-I0 is a 2MP LightHunter motorized varifocal IR dome network camera featuring a 1/2.8″ progressive scan CMOS sensor, 2.7 ~ 13.5mm AF motorized zoom lens, 1920 × 1080 resolution at up to 60fps, 120dB optical WDR and IR illumination up to 40m. It supports Ultra 265/H.265/H.264/MJPEG compression, Smart Intrusion Prevention, face detection and capture, people flow counting, crowd density monitoring, two-way audio, MicroSD storage up to 256GB, PoE (IEEE 802.3af), IP67 and IK10 protection.
Important: The IPC3232SB-AHDZK-I0 is a Motorized Varifocal Dome Camera, not a fixed-lens dome and not a mechanical PTZ camera. It uses a 2.7 ~ 13.5mm motorized zoom lens with Auto Focus, providing 5× optical zoom and a horizontal viewing angle of 98.2° ~ 30.6°. It also provides 2 alarm inputs/1 output, 1 audio input/output, RS485 and BNC video output for debugging.
