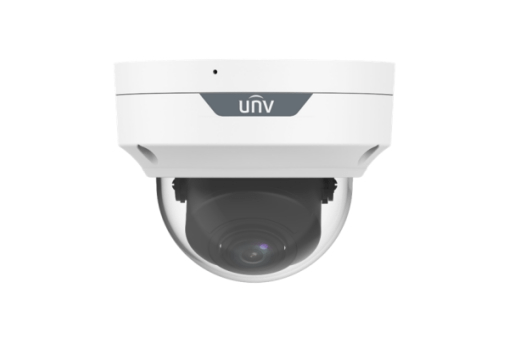

Specifications Uniview IPC3512LE-ADF28K-WP
| Features | Description |
|---|---|
| Device Type | 2MP ColorHunter with Wise-ISP Fixed Dome Network Camera |
| Image Sensor | 1/2.7″ Progressive Scan CMOS |
| Maximum Resolution | 1920 × 1080 |
| Lens | 2.8mm Fixed Lens |
| Field of View | 99.0° Horizontal |
| WDR | 120dB True WDR |
| Minimum Illumination | 0.0003 Lux (F1.0, AGC ON) |
| Video Compression | Ultra 265 / H.265 / H.264 / MJPEG |
| Smart Features | ColorHunter with Wise-ISP, Smart Intrusion Prevention Lite, 9:16 Corridor Mode |
| Audio | Built-in Microphone |
| Storage | MicroSD up to 512GB |
| Protection | IP67 / IK10 |
| Power | DC 12V ±25% / PoE (IEEE 802.3af) |
| CAMERA | |
|---|---|
| Image Sensor | 1/2.7″, 2.0 Megapixel Progressive Scan CMOS |
| Maximum Resolution | 1920 × 1080 |
| Minimum Illumination | Color: 0.0003 Lux (F1.0, AGC ON) |
| Day/Night | ColorHunter Full-Color |
| Shutter | Auto / Manual, 1 ~ 1/100000s |
| WDR | 120dB |
| S/N | >52dB |
| Adjustment Angle | Pan: 8° ~ 360°, Tilt: 0° ~ 68°, Rotate: 10° ~ 360° |
| LENS | |
|---|---|
| Lens Type | Fixed |
| Focal Length | 2.8mm |
| Iris | F1.0, Fixed |
| Horizontal Field of View | 99.0° |
| Vertical Field of View | 53.0° |
| Diagonal Field of View | 118.0° |
| DORI | |
|---|---|
| Detect | 45.0m |
| Observe | 18.0m |
| Recognize | 9.0m |
| Identify | 4.5m |
| VIDEO | |
|---|---|
| Video Compression | Ultra 265 / H.265 / H.264 / MJPEG |
| H.264 Profile | Baseline Profile / Main Profile / High Profile |
| Main Stream | 1080P (1920 × 1080), Max 30fps; 720P (1280 × 720), Max 30fps |
| Sub Stream | 720P (1280 × 720), Max 30fps; D1 (720 × 576), Max 30fps; 640 × 360, Max 30fps; 2CIF (704 × 288), Max 30fps; CIF (352 × 288), Max 30fps |
| Video Bit Rate | 128Kbps ~ 6144Kbps |
| Video Stream | Dual Streams |
| U-Code | Supported |
| 9:16 Corridor Mode | Supported |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 Areas |
| ROI | Up to 8 Areas |
| IMAGE | |
|---|---|
| ColorHunter | Supported |
| Wise-ISP | Supported |
| White Balance | Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2 |
| Digital Noise Reduction | 2D / 3D DNR |
| Smart Illumination | Not Applicable |
| HLC | Supported |
| BLC | Supported |
| Defog | Digital Defog |
| Image Flip | Normal / Vertical / Horizontal / 180° / 90° Clockwise / 90° Anti-clockwise |
| SMART FEATURES | |
|---|---|
| Smart Intrusion Prevention | Lite, Supports Intrusion and Cross Line Detection Based on Human Body and Vehicle Detection |
| Motion Detection | Supported |
| Ultra Motion Detection | Supported |
| Tampering Alarm | Supported |
| Audio Detection | Supported |
| AUDIO | |
|---|---|
| Audio Compression | G.711U / G.711A |
| Audio Bit Rate | 64Kbps |
| Audio Sampling Rate | 8KHz |
| Audio Suppression | Supported |
| Built-in Microphone | Supported |
| Two-Way Audio | Not Applicable |
| STORAGE | |
|---|---|
| Edge Storage | MicroSD, Up to 512GB |
| Network Storage | ANR / NAS (NFS) |
| NETWORK | |
|---|---|
| Network Interface | 1 × RJ45 10/100Mbps Base-TX Ethernet |
| ONVIF | Profile S / Profile G / Profile T |
| Compatible Integration | ONVIF / API / SDK |
| Network Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS |
| Users | Up to 32 Users, 2 User Levels |
| Client | EZStation / EZView |
| INTERFACE | |
|---|---|
| Network | 1 × RJ45 10/100Mbps Base-TX Ethernet |
| Built-in Microphone | Supported |
| Built-in Speaker | Not Applicable |
| Audio I/O | Not Applicable |
| Alarm I/O | Not Applicable |
| Serial Port | Not Applicable |
| Wi-Fi | Not Applicable |
| Video Output | Not Applicable |
| POWER & PROTECTION | |
|---|---|
| Power Supply | DC 12V ±25% / PoE (IEEE 802.3af) |
| Maximum Power Consumption | 1.6W |
| Power Interface | Ø5.5mm Coaxial Power Plug |
| Surge Protection | 4KV |
| Protection | IP67 / IK10 |
| CERTIFICATION | |
|---|---|
| EMC | CE-EMC / FCC |
| Safety | CE LVD / UL/CUL |
| Environment | CE-RoHS / WEEE |
| PHYSICAL & ENVIRONMENT | |
|---|---|
| Dimensions | Ø128 × 100mm |
| Weight | 0.56kg |
| Material | Metal + Plastic |
| Operating Temperature | -30°C to 60°C |
| Operating Humidity | ≤95% RH, Non-Condensing |
| Storage Temperature | -30°C to 60°C |
| Storage Humidity | ≤95% RH, Non-Condensing |
Note: The Uniview IPC3512LE-ADF28K-WP is a 2MP ColorHunter with Wise-ISP fixed dome network camera featuring a 1/2.7″ progressive scan CMOS sensor, 2.8mm fixed F1.0 lens, 1920 × 1080 resolution at up to 30fps, 120dB True WDR and a 99.0° horizontal field of view. It supports ColorHunter with Wise-ISP technology for 24-hour full-color imaging, Ultra 265/H.265/H.264/MJPEG compression, Smart Intrusion Prevention Lite with human and vehicle detection, built-in microphone, MicroSD storage up to 512GB, PoE (IEEE 802.3af), IP67 and IK10 protection.
Important: The IPC3512LE-ADF28K-WP is a Fixed Dome Camera, not a Bullet, Turret or PTZ camera. It uses a 2.8mm fixed F1.0 lens with a 99.0° horizontal field of view. The camera provides DORI distances of up to 45m Detect, 18m Observe, 9m Recognize and 4.5m Identify. It supports ColorHunter with Wise-ISP, Smart Intrusion Prevention Lite, PoE (IEEE 802.3af), IP67, IK10, built-in microphone and MicroSD storage up to 512GB.
