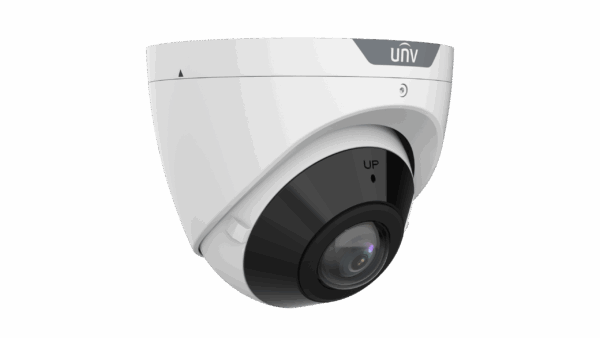

Specifications Uniview IPC3605SB-ADF16KM-I0
| Features | Description |
|---|---|
| Device Type | 5MP OmniView Fixed IR Turret Network Camera |
| Image Sensor | 1/2.7″ Progressive Scan CMOS |
| Maximum Resolution | 2880 × 1620 |
| Lens | 1.68mm Fixed Lens |
| Field of View | 180° Horizontal |
| WDR | 120dB True WDR |
| IR Range | Up to 20m |
| Video Compression | Ultra 265 / H.265 / H.264 / MJPEG |
| Smart Features | Smart Intrusion Prevention, Cross Line, Intrusion, Enter Area and Leave Area Detection |
| Audio | Built-in Microphone |
| Storage | MicroSD up to 512GB |
| Protection | IP67 |
| Vandal Resistance | IK10 |
| CAMERA | |
|---|---|
| Image Sensor | 1/2.7″, 5.0 Megapixel Progressive Scan CMOS |
| Maximum Resolution | 2880 × 1620 |
| Minimum Illumination | Color: 0.01 Lux (F2.0, AGC ON), 0 Lux with IR On |
| Day/Night | IR-Cut Filter with Auto Switch (ICR) |
| Shutter | Auto / Manual, 1 ~ 1/100000s |
| WDR | 120dB |
| S/N | >52dB |
| Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotate: 0° ~ 360° |
| LENS | |
|---|---|
| Lens Type | Fixed |
| Focal Length | 1.68mm |
| Iris | F2.0 |
| Horizontal Field of View | 180° |
| Vertical Field of View | 100° |
| Diagonal Field of View | 180° |
| DORI | |
|---|---|
| Detect | 37.8m |
| Observe | 15.1m |
| Recognize | 7.6m |
| Identify | 3.8m |
| VIDEO | |
|---|---|
| Video Compression | Ultra 265 / H.265 / H.264 / MJPEG |
| Main Stream | 5MP (2880 × 1620), Max 30fps; 4MP (2560 × 1440), Max 30fps; 3MP (2304 × 1296), Max 30fps; 1080P (1920 × 1080), Max 30fps; 720P (1280 × 720), Max 30fps |
| Sub Stream | 2MP (1920 × 1080), Max 30fps; 720P (1280 × 720), Max 30fps; D1 (720 × 576), Max 30fps; 640 × 360, Max 30fps; 2CIF (704 × 288), Max 30fps; CIF (352 × 288), Max 30fps |
| Third Stream | D1 (720 × 576), Max 30fps; 640 × 360, Max 30fps; 2CIF (704 × 288), Max 30fps; CIF (352 × 288), Max 30fps |
| Video Bit Rate | 128Kbps ~ 16Mbps |
| Video Stream | Triple Streams |
| U-Code | Supported |
| 9:16 Corridor Mode | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 Areas |
| ROI | Up to 8 Areas |
| IMAGE | |
|---|---|
| White Balance | Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2 |
| Digital Noise Reduction | 2D / 3D DNR |
| Smart IR | Supported |
| HLC | Supported |
| BLC | Supported |
| Defog | Digital Defog |
| Dewarping | Supported, Level 1 ~ 9 |
| Image Flip | Normal / Vertical / Horizontal / 180° |
| SMART FEATURES | |
|---|---|
| Smart Intrusion Prevention | Cross Line, Intrusion, Enter Area and Leave Area Detection |
| Target Classification | Human, Motor Vehicle and Non-Motor Vehicle |
| False Alarm Filtering | Supported |
| Motion Detection | Supported |
| Ultra Motion Detection | Supported |
| Tampering Alarm | Supported |
| Audio Detection | Supported |
| ILLUMINATOR | |
|---|---|
| Light Type | IR |
| IR Range | Up to 20m |
| IR Wavelength | 850nm |
| IR Control | Auto / Manual |
| Smart IR | Supported |
| AUDIO | |
|---|---|
| Built-in Microphone | Supported |
| Built-in Speaker | Not Supported |
| Audio Compression | G.711U / G.711A |
| Audio Bit Rate | 64Kbps |
| Two-Way Audio | Not Supported |
| Sampling Rate | 8KHz |
| STORAGE | |
|---|---|
| Edge Storage | MicroSD, Up to 512GB |
| Network Storage | ANR / NAS (NFS) |
| NETWORK | |
|---|---|
| Network Interface | 1 × RJ45 10/100Mbps Base-TX Ethernet |
| ONVIF | Profile S / Profile G / Profile T |
| Compatible Integration | ONVIF / API / SDK |
| Network Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Client | EZStation / EZView / EZLive / Web Browser |
| INTERFACE | |
|---|---|
| Network | 1 × RJ45 10/100Mbps Base-TX Ethernet |
| Audio I/O | N/A |
| Alarm I/O | N/A |
| Serial Port | N/A |
| Built-in Microphone | Supported |
| Built-in Speaker | Not Supported |
| Wi-Fi | Not Supported |
| Video Output | Not Supported |
| POWER & PROTECTION | |
|---|---|
| Power Supply | DC 12V ±25% / PoE (IEEE 802.3af) |
| Maximum Power Consumption | 5.5W |
| Surge Protection | 4KV |
| Protection | IP67 |
| Vandal Resistance | IK10 |
| PHYSICAL & ENVIRONMENT | |
|---|---|
| Dimensions | Ø111 × 93mm |
| Weight | 0.48kg |
| Material | Metal |
| Operating Temperature | -30°C to 60°C |
| Operating Humidity | ≤95% RH, Non-Condensing |
| Storage Temperature | -30°C to 60°C |
| Storage Humidity | ≤95% RH, Non-Condensing |
Note: The Uniview IPC3605SB-ADF16KM-I0 is a 5MP OmniView Fixed IR Turret Network Camera featuring a 1/2.7″ progressive scan CMOS sensor, 1.68mm fixed F2.0 lens, 2880 × 1620 resolution, 180° horizontal viewing angle and 120dB True WDR. It supports Ultra 265/H.265/H.264/MJPEG compression, Smart Intrusion Prevention, built-in microphone, MicroSD storage up to 512GB, Smart IR up to 20m, IP67 and IK10 protection, and PoE (IEEE 802.3af).
Important: The IPC3605SB-ADF16KM-I0 is a Fixed Turret/Eyeball Camera, not a PTZ and not a varifocal camera. It uses a 1.68mm fixed lens with a 180° horizontal field of view. Dewarping can be configured from level 1 to 9 to correct the wide-angle image.
