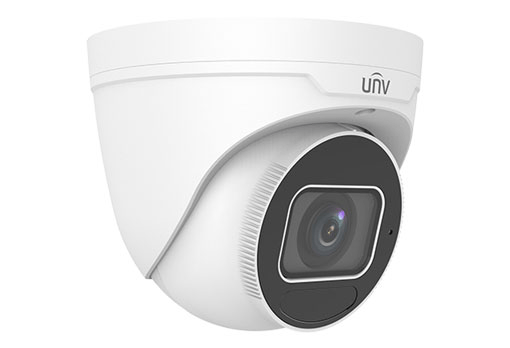

Specifications Uniview IPC3632SA-ADZK
| Features | Description |
|---|---|
| Device Type | 2MP LightHunter VF Eyeball Network IR Camera |
| Image Sensor | 1/2.7″ Progressive Scan CMOS |
| Maximum Resolution | 1920 × 1080 |
| Lens | 2.7–13.5mm Motorized Varifocal Lens |
| Optical Zoom | 5X |
| WDR | 120dB True WDR |
| IR Range | Up to 40m |
| Video Compression | Ultra 265 / H.265 / H.264 / MJPEG |
| Smart Features | Smart Intrusion Prevention, Cross Line, Intrusion, Enter Area and Leave Area Detection |
| People Flow Counting | Supported |
| Crowd Density Monitoring | Supported |
| Audio | Audio Input / Audio Output, Built-in Microphone |
| Alarm | 1 × Alarm Input / 1 × Alarm Output |
| Storage | MicroSD up to 256GB |
| Protection | IP67 |
| Vandal Resistance | IK10 |
| CAMERA | |
|---|---|
| Image Sensor | 1/2.7″, 2.0 Megapixel Progressive Scan CMOS |
| Maximum Resolution | 1920 × 1080 |
| Minimum Illumination | Color: 0.001 Lux (F1.35, AGC ON), 0 Lux with IR |
| Day/Night | IR-Cut Filter with Auto Switch (ICR) |
| Shutter | Auto / Manual, 1 ~ 1/100000s |
| WDR | 120dB True WDR |
| S/N | >52dB |
| Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotate: 0° ~ 360° |
| LENS | |
|---|---|
| Lens Type | Motorized Varifocal, AF Automatic Focusing |
| Focal Length | 2.7–13.5mm |
| Iris | F1.35 |
| Horizontal Field of View | 114° ~ 31.8° |
| Vertical Field of View | 58.9° ~ 17.6° |
| Diagonal Field of View | 148.2° ~ 37.5° |
| Optical Zoom | 5X |
| DORI | |
|---|---|
| Detect | 40.5m ~ 202.5m |
| Observe | 16.2m ~ 81m |
| Recognize | 8.1m ~ 40.5m |
| Identify | 4.1m ~ 20.3m |
| VIDEO | |
|---|---|
| Video Compression | Ultra 265 / H.265 / H.264 / MJPEG |
| Main Stream | 2MP (1920 × 1080), Max 30fps |
| Sub Stream | D1 (720 × 576), Max 30fps |
| Third Stream | CIF (352 × 288), Max 30fps |
| Video Bit Rate | 128Kbps ~ 16Mbps |
| Video Stream | Triple Streams |
| U-Code | Supported |
| 9:16 Corridor Mode | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 8 Areas |
| ROI | Up to 8 Areas |
| IMAGE | |
|---|---|
| White Balance | Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2 |
| Digital Noise Reduction | 2D / 3D DNR |
| Smart IR | Supported |
| HLC | Supported |
| BLC | Supported |
| Defog | Digital Defog |
| Image Flip | Normal / Vertical / Horizontal / 180° / 90° Clockwise / 90° Anti-clockwise |
| SMART FEATURES | |
|---|---|
| Smart Intrusion Prevention | Cross Line, Intrusion, Enter Area and Leave Area Detection |
| Target Classification | Human, Motor Vehicle and Non-Motor Vehicle |
| False Alarm Filtering | Supported |
| People Flow Counting | Supported |
| Crowd Density Monitoring | Supported |
| Motion Detection | Supported |
| ILLUMINATOR | |
|---|---|
| Light Type | IR |
| IR Range | Up to 40m |
| IR Wavelength | 850nm |
| IR Control | Auto / Manual |
| Smart IR | Supported |
| AUDIO & ALARM | |
|---|---|
| Audio Input | 1 Channel |
| Audio Output | 1 Channel |
| Built-in Microphone | Supported |
| Audio Compression | G.711 |
| Two-Way Audio | Supported |
| Sampling Rate | 8KHz |
| Audio Suppression | Supported |
| Alarm Input | 1 Channel |
| Alarm Output | 1 Channel |
| STORAGE | |
|---|---|
| Edge Storage | MicroSD, Up to 256GB |
| Network Storage | ANR / NAS (NFS) |
| NETWORK | |
|---|---|
| Network Interface | 1 × RJ45 10/100Mbps Base-TX Ethernet |
| ONVIF | Profile S / Profile G / Profile T |
| Compatible Integration | ONVIF / API |
| Network Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP and QoS |
| Client | EZStation / EZView / EZLive / Web Browser |
| POWER & PROTECTION | |
|---|---|
| Power Supply | DC 12V ±25% / PoE (IEEE 802.3af) |
| Maximum Power Consumption | 7.8W |
| Surge Protection | 6KV |
| Protection | IP67 |
| Vandal Resistance | IK10 |
| PHYSICAL & ENVIRONMENT | |
|---|---|
| Dimensions | Φ129.1 × 111.2mm |
| Weight | 0.70kg |
| Material | Metal |
| Operating Temperature | -30°C to 60°C |
| Storage Temperature | -30°C to 60°C |
| Operating Humidity | ≤95% RH, Non-Condensing |
| Storage Humidity | ≤95% RH, Non-Condensing |
Note: The Uniview IPC3632SA-ADZK is a 2MP LightHunter VF Eyeball Network IR Camera featuring a 1/2.7″ progressive scan CMOS sensor, 2.7–13.5mm motorized varifocal lens, 5X optical zoom, 1920 × 1080 resolution, 120dB True WDR and LightHunter technology for high-quality imaging in low-light environments. It supports Ultra 265/H.265/H.264/MJPEG compression, Smart Intrusion Prevention, people flow counting, crowd density monitoring, built-in microphone, two-way audio, MicroSD storage up to 256GB, IP67 and IK10 protection, and PoE (IEEE 802.3af).
Important: The IPC3632SA-ADZK is a Motorized Varifocal Eyeball Camera, not a PTZ camera. Its 2.7–13.5mm motorized lens provides a 114°–31.8° horizontal field of view and DORI distances of 40.5–202.5m Detect / 4.1–20.3m Identify. IR illumination reaches up to 40m. The camera supports DC 12V or PoE (IEEE 802.3af) and has IP67 + IK10 protection.
