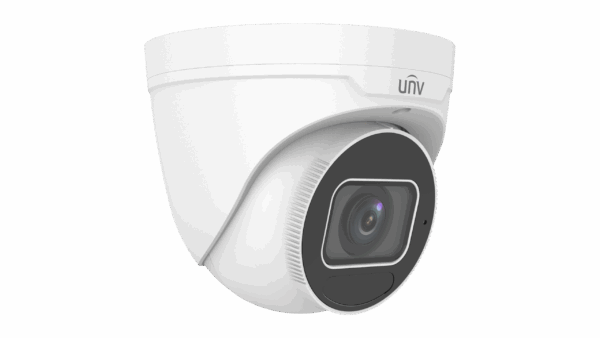

Specifications Uniview IPC3635SB-ADZK-I0
| Features | Description |
|---|---|
| Device Type | 5MP LightHunter Motorized Varifocal IR Turret Network Camera |
| Image Sensor | 1/2.7″ Progressive Scan CMOS |
| Maximum Resolution | 2880 × 1620 |
| Lens | 2.7 ~ 13.5mm Motorized Zoom Lens with AF |
| Field of View | 106.25° ~ 30.42° Horizontal |
| WDR | 120dB True WDR |
| IR Range | Up to 40m |
| Video Compression | Ultra 265 / H.265 / H.264 / MJPEG |
| Smart Features | Smart Intrusion Prevention, Cross Line, Intrusion, Enter Area, Leave Area, People Flow Counting and Crowd Density Monitoring |
| Audio | Built-in Microphone |
| Storage | MicroSD up to 512GB |
| Protection | IP67 / IK10 |
| Power | DC 12V ±25% / PoE (IEEE 802.3af) |
| CAMERA | |
|---|---|
| Image Sensor | 1/2.7″, 5.0 Megapixel Progressive Scan CMOS |
| Maximum Resolution | 2880 × 1620 |
| Minimum Illumination | Color: 0.002 Lux (F1.2, AGC ON), 0 Lux with IR |
| Day/Night | IR-Cut Filter with Auto Switch (ICR) |
| Shutter | Auto / Manual, 1 ~ 1/100000s |
| WDR | 120dB True WDR |
| S/N | >56dB |
| Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotate: 0° ~ 360° |
| LENS | |
|---|---|
| Lens Type | Motorized Varifocal |
| Focal Length | 2.7 ~ 13.5mm |
| Focus | AF Automatic Focusing |
| Zoom | Motorized Zoom |
| Iris | Fixed, F1.2 |
| Horizontal Field of View | 106.25° ~ 30.42° |
| Vertical Field of View | 56.36° ~ 17.22° |
| Diagonal Field of View | 110.34° ~ 34.18° |
| DORI | |
|---|---|
| 2.7mm – Detect | 60.8m |
| 2.7mm – Observe | 24.3m |
| 2.7mm – Recognize | 12.2m |
| 2.7mm – Identify | 6.1m |
| 13.5mm – Detect | 303.8m |
| 13.5mm – Observe | 121.5m |
| 13.5mm – Recognize | 60.8m |
| 13.5mm – Identify | 30.4m |
| VIDEO | |
|---|---|
| Video Compression | Ultra 265 / H.265 / H.264 / MJPEG |
| Main Stream | 5MP (2880 × 1620), Max 30fps; 4MP (2560 × 1440), Max 30fps; 3MP (2304 × 1296), Max 30fps; 1080P (1920 × 1080), Max 30fps |
| Sub Stream | 720P (1280 × 720), Max 30fps; D1 (720 × 576), Max 30fps; 640 × 360, Max 30fps |
| Third Stream | D1 (720 × 576), Max 30fps; 640 × 360, Max 30fps; 2CIF (704 × 288), Max 30fps; CIF (352 × 288), Max 30fps |
| Video Bit Rate | 128Kbps ~ 16Mbps |
| Video Stream | Triple Streams |
| U-Code | Supported |
| 9:16 Corridor Mode | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 Areas |
| ROI | Up to 8 Areas |
| IMAGE | |
|---|---|
| White Balance | Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2 |
| Digital Noise Reduction | 2D / 3D DNR |
| Smart IR | Supported |
| HLC | Supported |
| BLC | Supported |
| Defog | Digital Defog |
| Image Flip | Normal / Vertical / Horizontal / 180° / 90° Clockwise / 90° Anti-clockwise |
| SMART FEATURES | |
|---|---|
| Cross Line Detection | Supported |
| Intrusion Detection | Supported |
| Enter Area Detection | Supported |
| Leave Area Detection | Supported |
| Smart Intrusion Prevention | Human / Motor Vehicle / Non-Motor Vehicle Classification |
| People Flow Counting | Supported |
| Crowd Density Monitoring | Supported |
| Motion Detection | Up to 4 Areas |
| Tampering Alarm | Supported |
| Audio Detection | Supported |
| ILLUMINATOR | |
|---|---|
| Light Type | IR |
| IR Range | Up to 40m |
| IR Wavelength | 850nm |
| IR Control | Auto / Manual |
| Smart IR | Supported |
| AUDIO | |
|---|---|
| Built-in Microphone | Supported |
| Audio Compression | G.711U / G.711A |
| Audio Bit Rate | 64Kbps |
| Audio Sampling Rate | 8KHz |
| STORAGE | |
|---|---|
| Edge Storage | MicroSD, Up to 512GB |
| Network Storage | ANR / NAS (NFS) |
| NETWORK | |
|---|---|
| Network Interface | 1 × RJ45 10/100Mbps Base-TX Ethernet |
| ONVIF | Profile S / Profile G / Profile T |
| Compatible Integration | ONVIF / API / SDK |
| Network Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP |
| Client | EZStation / EZView / EZLive / Web Browser |
| INTERFACE | |
|---|---|
| Network | 1 × RJ45 10/100Mbps Base-TX Ethernet |
| Audio | Built-in Microphone |
| Alarm I/O | Not Supported |
| Wi-Fi | Not Supported |
| Video Output | Not Supported |
| POWER & PROTECTION | |
|---|---|
| Power Supply | DC 12V ±25% / PoE (IEEE 802.3af) |
| Maximum Power Consumption | 7.0W |
| Surge Protection | 6KV |
| Protection | IP67 |
| Vandal Resistance | IK10 |
| PHYSICAL & ENVIRONMENT | |
|---|---|
| Dimensions | Φ129 × 110mm |
| Weight | 0.70kg |
| Material | Metal |
| Operating Temperature | -30°C to 60°C |
| Operating Humidity | ≤95% RH, Non-Condensing |
Note: The Uniview IPC3635SB-ADZK-I0 is a 5MP LightHunter motorized varifocal IR turret network camera featuring a 1/2.7″ progressive scan CMOS sensor, 2.7 ~ 13.5mm AF motorized zoom lens, 2880 × 1620 resolution at up to 30fps, 120dB True WDR and Smart IR up to 40m. It supports Ultra 265/H.265/H.264/MJPEG compression, intelligent perimeter protection, Smart Intrusion Prevention, people flow counting, crowd density monitoring, built-in microphone, MicroSD storage up to 512GB, PoE (IEEE 802.3af), IP67 and IK10 protection.
Important: The IPC3635SB-ADZK-I0 is a Turret / Eyeball Camera with a 2.7 ~ 13.5mm motorized varifocal lens. It is not a PTZ camera. The lens provides a horizontal viewing angle of approximately 106.25° ~ 30.42° and DORI Identify distances from 6.1m to 30.4m.
