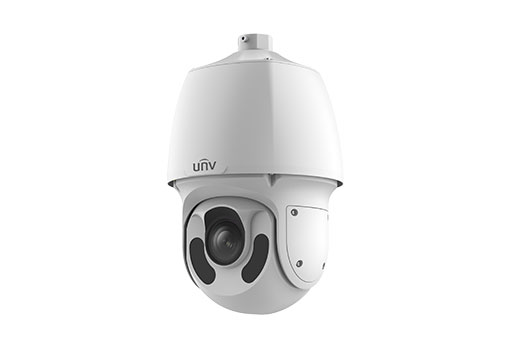

Specifications Uniview IPC6222ER-X20P-B

Features	Description
Device Type	2MP 20X IR Network PTZ Dome Camera
Image Sensor	1/2.8″ Progressive Scan CMOS
Maximum Resolution	1920 × 1080
Optical Zoom	20X
Digital Zoom	16X
Focal Length	5.2 ~ 104mm
WDR	120dB True WDR
IR Range	Up to 150m
Video Compression	Ultra 265 / H.265 / H.264 / MJPEG
Smart Features	Embedded Smart Algorithm
Storage	MicroSD
Protection	IP66 / IK10

CAMERA
Image Sensor	1/2.8″ 2.0 Megapixel Progressive Scan CMOS
Minimum Illumination	Color: 0.001 Lux (F1.5, AGC ON), 0 Lux with IR
Day/Night	IR-Cut Filter with Auto Switch (ICR)
Shutter	Auto / Manual, 1/1 to 1/100000s
Iris	Auto / Manual, F1.5 ~ F3.0
WDR	120dB True WDR
S/N	>52dB
Digital Noise Reduction	2D / 3D DNR

LENS
Focal Length	5.2 ~ 104mm
Optical Zoom	20X
Digital Zoom	16X
Focus	Auto / Manual
Angle of View	H: 55.93° ~ 3.52° / V: 33.25° ~ 1.98° / D: 68.79° ~ 4.15°

DORI
Detect	80.7m ~ 1613.8m
Observe	32.3m ~ 645.5m
Recognize	16.1m ~ 322.8m
Identify	8.1m ~ 161.4m

VIDEO
Video Compression	Ultra 265 / H.265 / H.264 / MJPEG
Main Stream	1080P (1920 × 1080), Max 30fps
Sub Stream	720P (1280 × 720), Max 30fps
Third Stream	D1 (720 × 576), Max 25fps
Video Stream	Triple Streams
Video Bit Rate	128Kbps ~ 16Mbps
U-Code	Supported
OSD	Up to 8 OSDs
Privacy Mask	Up to 24 Areas

White Balance	Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2
HLC	Supported
BLC	Supported
Smart IR	Supported
Defog	Digital Defog
Heatwave Reduction	Supported

PTZ
Pan Range	360° Endless
Pan Speed	0.1°/s ~ 240°/s
Tilt Range	-15° ~ 90° (Auto Reverse)
Tilt Speed	0.1°/s ~ 160°/s
Preset Speed	Pan: 300°/s / Tilt: 240°/s
Preset	1024 Presets
Patrol	Up to 16 Patrols, Up to 32 Presets per Patrol
Pattern	Up to 16 Patterns
Home Position	Supported

SMART FEATURES
Embedded Smart Algorithm	Supported
Motion Detection	Supported
Privacy Mask	Supported

ILLUMINATOR
IR Range	Up to 150m
IR Technology	Third-Generation Infrared Technology
IR Control	Auto / Manual

STORAGE
Edge Storage	MicroSD

NETWORK
Network Interface	1 × RJ45 10/100Mbps Base-TX Ethernet
ONVIF	Supported
Compatible Integration	ONVIF / IMOS / API
Protocols	L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, NTP, FTP, HTTP, SNMP, SIP
Video Output	Not Specified

AUDIO & ALARM
Audio Input	1 Input
Audio Output	1 Output
Audio Compression	G.711
Two-Way Audio	Supported
Alarm Input	1 Channel
Alarm Output	1 Channel

POWER & PROTECTION
Power Supply	AC 24V ±25% / DC 24V ±25% / PoE
Maximum Power Consumption	42W
Surge Protection	6KV
Protection	IP66 / IK10

PHYSICAL & ENVIRONMENT
Dimensions	Ø227 × 359.4mm
Weight	5.28kg
Operating Temperature	-40°C to 65°C
Storage Temperature	Not Specified
Operating Humidity	≤95% RH, Non-Condensing
Installation	Outdoor / Indoor

Note: The Uniview IPC6222ER-X20P-B is a 2MP 20X IR Network PTZ Dome Camera featuring a 1/2.8″ progressive scan CMOS sensor, 5.2~104mm motorized zoom lens, 20X optical zoom and 16X digital zoom. It supports 1920 × 1080 video at up to 30fps, Ultra 265/H.265/H.264/MJPEG compression, Smart IR up to 150m, triple streams, MicroSD storage, ONVIF integration and 120dB True WDR. The camera supports AC 24V, DC 24V and PoE power input.

Important: The IPC6222ER-X20P-B is a 2MP PTZ Dome Camera with 20X optical zoom and 16X digital zoom. The -P version supports PoE, while the camera also supports AC 24V / DC 24V. It features 120dB True WDR, Smart IR up to 150m, 360° endless pan, -15° to 90° tilt, 1 alarm input / 1 alarm output, 1 audio input / 1 audio output, 6KV surge protection and IP66 / IK10 protection. Maximum power consumption is 42W.
