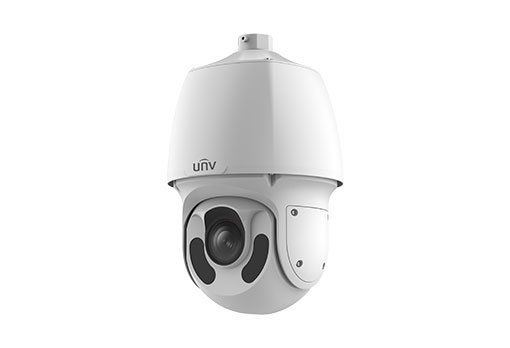

Specifications Uniview IPC6222ER-X30P-B

Features	Description
Device Type	2MP 30X IR Network PTZ Dome Camera
Image Sensor	1/2.8″ Progressive Scan CMOS
Maximum Resolution	1920 × 1080
Optical Zoom	30X
Digital Zoom	16X
Focal Length	4.5 ~ 135mm
WDR	120dB True WDR
IR Range	Up to 150m
Video Compression	Ultra 265 / H.265 / H.264 / MJPEG
Smart Features	Intrusion Detection, Cross Line Detection, Motion Detection, Face Detection, People Counting and Auto Tracking
Storage	MicroSD up to 128GB
Protection	IP66

CAMERA
Image Sensor	1/2.8″ 2.0 Megapixel Progressive Scan CMOS
Minimum Illumination	Color: 0.001 Lux (F1.5, AGC ON), 0 Lux with IR
Day/Night	IR-Cut Filter with Auto Switch (ICR)
Shutter	Auto / Manual, 1/1 to 1/100000s
Iris	Auto / Manual, F1.5 ~ F4.0
WDR	120dB True WDR
S/N	>52dB
Digital Noise Reduction	2D / 3D DNR

LENS
Focal Length	4.5 ~ 135mm
Optical Zoom	30X
Digital Zoom	16X
Focus	Auto / Manual
Field of View	H: 71.7° ~ 2.4° / V: 43.4° ~ 1.3° / D: 88.2° ~ 2.8°

DORI
Detect	69.8m ~ 2094.8m
Observe	27.9m ~ 837.9m
Recognize	14.0m ~ 419.0m
Identify	7.0m ~ 209.5m

VIDEO
Video Compression	Ultra 265 / H.265 / H.264 / MJPEG
Main Stream	2MP (1920 × 1080), Max 30fps
Sub Stream	2MP (1920 × 1080), Max 30fps
Third Stream	D1 (720 × 576), Max 30fps
Video Bit Rate	128Kbps ~ 16Mbps
Video Stream	Triple Streams
U-Code	Supported
H.264 Code Profile	Baseline Profile / Main Profile / High Profile
OSD	Up to 8 OSDs
Privacy Mask	Up to 24 Areas
ROI	Up to 8 Areas

White Balance	Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2
HLC	Supported
BLC	Supported
Smart IR	Supported
Defog	Digital Defog
EIS	Supported
Heatwave Reduction	Supported

PTZ
Pan Range	360° Endless
Pan Speed	0.1°/s ~ 240°/s
Tilt Range	-15° ~ 90° (Auto Reverse)
Tilt Speed	0.1°/s ~ 160°/s
Preset Speed	Pan: 300°/s / Tilt: 240°/s
Preset	1024 Presets
Patrol	16 Patrols, Up to 32 Presets per Patrol
Pattern	16 Patterns
Home Position	Supported
Auto Tracking	Supported

SMART FEATURES
Behavior Detection	Intrusion Detection, Cross Line Detection and Motion Detection
Exception Detection	Audio Detection
Intelligent Identification	Face Detection
Statistical Analysis	People Counting
Auto Tracking	Supported

ILLUMINATOR
IR Range	Up to 150m
IR Technology	Smart IR / Third-Generation Infrared Technology
IR Control	Auto / Manual

STORAGE
Edge Storage	MicroSD, Up to 128GB

NETWORK
Network Interface	1 × RJ45 10/100Mbps Base-TX Ethernet
ONVIF	Supported
Compatible Integration	ONVIF / API
Protocols	L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SIP, 802.1x
Video Output	Not Specified

AUDIO & ALARM
Audio Input	1 Input
Audio Output	1 Output
Audio Compression	G.711
Two-Way Audio	Supported
Alarm Input	1 Channel
Alarm Output	1 Channel

POWER & PROTECTION
Power Supply	AC 24V ±25% / DC 24V ±25% / PoE
Maximum Power Consumption	42W
Surge Protection	6KV
Protection	IP66

PHYSICAL & ENVIRONMENT
Dimensions	Ø227 × 359.4mm
Weight	5.28kg
Operating Temperature	-40°C to 65°C
Operating Humidity	≤95% RH, Non-Condensing
Installation	Indoor / Outdoor

Note: The Uniview IPC6222ER-X30P-B is a 2MP 30X IR Network PTZ Dome Camera featuring a 1/2.8″ progressive scan CMOS sensor, 4.5~135mm motorized zoom lens, 30X optical zoom and 16X digital zoom. It supports 1920 × 1080 video at up to 30fps, Ultra 265/H.265/H.264/MJPEG compression, 120dB True WDR, Smart IR up to 150m, Auto Tracking, Face Detection, People Counting and MicroSD storage up to 128GB. It supports AC 24V, DC 24V and PoE power input.

Important: The IPC6222ER-X30P-B is a 2MP PTZ Dome Camera with 30X optical zoom and 16X digital zoom. It features 120dB True WDR, Smart IR up to 150m, Auto Tracking, Intrusion Detection, Cross Line Detection, Face Detection and People Counting. It supports PoE, AC 24V and DC 24V, with 1 alarm input / 1 alarm output, 1 audio input / 1 audio output, 6KV surge protection and IP66 protection. Maximum power consumption is 42W.
