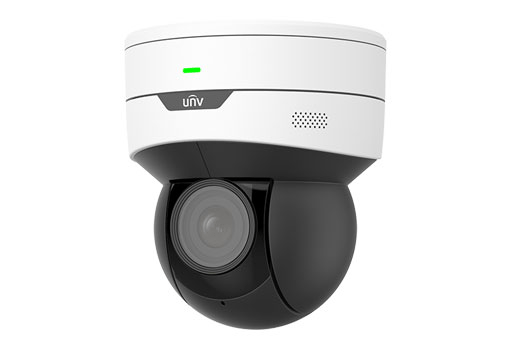

Specifications Uniview IPC6415SR-X5UPW-VG

Features	Description
Device Type	5MP WDR Starlight IR Network Indoor MiniPTZ Dome Camera
Image Sensor	1/2.7″ Progressive Scan CMOS
Maximum Resolution	2880 × 1620
Optical Zoom	5X
Focal Length	2.7 ~ 13.5mm
WDR	120dB Optical WDR
IR Range	Up to 30m
Video Compression	Ultra 265 / H.265 / H.264 / MJPEG
Smart Features	Smart Intrusion Prevention, Cross Line, Intrusion, Enter Area and Leave Area Detection
Wi-Fi	Supported
Audio	Built-in Microphone and Speaker, Two-Way Audio
Protection	Indoor Use

CAMERA
Image Sensor	1/2.7″, 5.0 Megapixel Progressive Scan CMOS
Minimum Illumination	Color: 0.003 Lux (F1.2, AGC ON), 0 Lux with IR
Day/Night	IR-Cut Filter with Auto Switch (ICR)
Shutter	Auto / Manual, 1 ~ 1/100000s
WDR	120dB
S/N	>56dB

LENS
Lens Type	2.7 ~ 13.5mm AF Automatic Focusing and Motorized Zoom Lens
Optical Zoom	5X
Iris	F1.2
Horizontal Field of View	104.9° ~ 30.6°
Vertical Field of View	55.41° ~ 17.7°
Diagonal Field of View	136.37° ~ 36.1°

DORI
Detect	70.9m ~ 247.5m
Observe	28.4m ~ 99.0m
Recognize	14.2m ~ 49.5m
Identify	7.1m ~ 24.8m

VIDEO
Video Compression	Ultra 265 / H.265 / H.264 / MJPEG
Main Stream	5MP (2880 × 1620), Max 30fps
Sub Stream	720P (1280 × 720), Max 30fps
Third Stream	D1 (720 × 576), Max 30fps
Video Bit Rate	128Kbps ~ 16Mbps
Video Stream	Triple Streams
U-Code	Supported
ROI	Supported
OSD	Up to 8 OSDs
Privacy Mask	24 Areas, Up to 4 Areas per Scene

White Balance	Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2
Digital Noise Reduction	2D / 3D DNR
Smart IR	Supported
HLC	Supported
BLC	Supported
Defog	Digital Defog

PTZ
Pan Range	350°
Pan Speed	0.1°/s ~ 60°/s
Tilt Range	0° ~ 90°
Tilt Speed	0.1°/s ~ 50°/s
Presets	256
Home Position	Supported

SMART FEATURES
Smart Intrusion Prevention	Cross Line, Intrusion, Enter Area and Leave Area Detection
False Alarm Filtering	Supported
Best Snapshot Selection	Supported
LightHunter	Supported

ILLUMINATOR
IR Range	Up to 30m
IR Wavelength	850nm
IR Control	Auto / Manual
Smart IR	Supported

AUDIO & ALARM
Audio Input	Built-in Microphone
Audio Output	Built-in Speaker
Two-Way Audio	Supported
Alarm Input	1 Channel
Alarm Output	1 Channel
RS485	1 × RS485

NETWORK & WI-FI
Network Interface	1 × RJ45 10/100Mbps Base-TX Ethernet
Wi-Fi	Supported
ONVIF	Profile S / G / T
Compatible Integration	ONVIF / API
Network Protocol	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP and SSL

STORAGE
Network Storage	ANR / NAS (NFS)

POWER & GENERAL
Power Supply	DC 12V ±25% / PoE+ (IEEE 802.3at)
Maximum Power Consumption	15W
Dimensions	Ø129 × 143.6mm
Weight	0.76kg
Operating Temperature	-10°C to 50°C
Storage Temperature	-40°C to 70°C
Operating Humidity	≤95% RH, Non-Condensing

Note: The Uniview IPC6415SR-X5UPW-VG is a 5MP WDR Starlight IR Network Indoor MiniPTZ Dome Camera featuring a 1/2.7″ CMOS sensor, 2.7~13.5mm motorized zoom lens and 5X optical zoom. It supports 2880 × 1620 video at up to 30fps, 120dB optical WDR, LightHunter technology, Smart IR up to 30m, Smart Intrusion Prevention, built-in microphone and speaker, two-way audio, Wi-Fi and PoE+.

Important: The IPC6415SR-X5UPW-VG is an Indoor MiniPTZ Dome Camera with 5MP resolution, 5X optical zoom, Wi-Fi, 120dB Optical WDR and Smart IR up to 30m. It supports DC 12V / PoE+ (IEEE 802.3at), 1 alarm input / 1 alarm output, RS485 and built-in microphone and speaker. Maximum power consumption is 15W.
