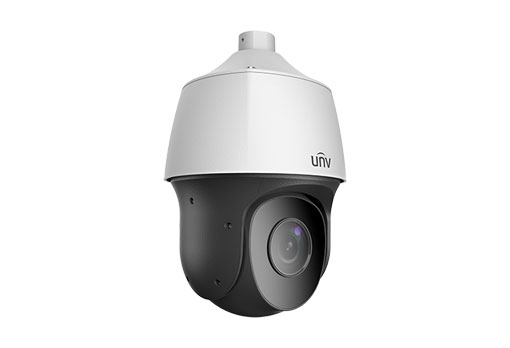

Specifications Uniview IPC6612SR-X25-VG
| Features | Description |
|---|---|
| Device Type | 2MP 25X LightHunter IR Network PTZ Dome Camera |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Maximum Resolution | 1920 × 1080 |
| Optical Zoom | 25X |
| Focal Length | 5 ~ 125mm |
| WDR | 120dB Optical WDR |
| IR Range | Up to 150m |
| Video Compression | Ultra 265 / H.265 / H.264 / MJPEG |
| Smart Features | Smart Intrusion Prevention, Cross Line Detection, Intrusion Detection, Enter Area Detection and Leave Area Detection |
| LightHunter | Supported |
| Storage | MicroSD up to 512GB |
| Protection | IP66 / IK10 |
| CAMERA | |
|---|---|
| Image Sensor | 1/2.8″, 2.0 Megapixel Progressive Scan CMOS |
| Minimum Illumination | Color: 0.001 Lux (F1.5, AGC ON), 0 Lux with IR |
| Day/Night | IR-Cut Filter with Auto Switch (ICR) |
| Shutter | Auto / Manual, 1 ~ 1/100000s |
| WDR | 120dB |
| S/N | >52dB |
| LENS | |
|---|---|
| Lens Type | 5 ~ 125mm AF Automatic Focusing and Motorized Zoom Lens |
| Optical Zoom | 25X |
| Iris | Auto, F1.5 ~ F3.0 |
| Horizontal Field of View | 54.37° ~ 2.68° |
| Vertical Field of View | 32.23° ~ 1.51° |
| Diagonal Field of View | 66.88° ~ 3.16° |
| DORI | |
|---|---|
| Detect | 85.3m ~ 1706.9m |
| Observe | 34.1m ~ 682.8m |
| Recognize | 17.1m ~ 341.4m |
| Identify | 8.5m ~ 170.7m |
| VIDEO | |
|---|---|
| Video Compression | Ultra 265 / H.265 / H.264 / MJPEG |
| Main Stream | 2MP (1920 × 1080), Max 30fps |
| Sub Stream | 720P (1280 × 720), Max 30fps |
| Third Stream | D1 (720 × 576), Max 30fps |
| Video Bit Rate | 128Kbps ~ 16Mbps |
| Video Stream | Triple Streams |
| H.264 Profile | Baseline Profile / Main Profile / High Profile |
| H.265 Profile | Main Profile |
| U-Code | Supported |
| ROI | Up to 8 Areas |
| OSD | Up to 8 OSDs |
| Privacy Mask | 24 Areas, Up to 4 Areas per Scene |
| IMAGE | |
|---|---|
| White Balance | Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2 |
| Digital Noise Reduction | 2D / 3D DNR |
| Smart IR | Supported |
| HLC | Supported |
| BLC | Supported |
| Image Flip | Normal / Vertical / Horizontal / 180° / 90° Clockwise / 90° Anti-Clockwise |
| PTZ | |
|---|---|
| Pan Range | 360° Endless |
| Pan Speed | 2°/s ~ 75°/s |
| Tilt Range | -15° ~ 90° (Auto Reverse) |
| Tilt Speed | 2°/s ~ 75°/s |
| Preset | 1024 Presets |
| Recorded Patrol | 16 Patrols, Up to 128 Actions per Patrol |
| Patrol Stay Time | 15s ~ 1800s |
| Preset Image Freeze | Supported |
| Home Position | Supported |
| SMART FEATURES | |
|---|---|
| Smart Intrusion Prevention | Cross Line, Intrusion, Enter Area and Leave Area Detection |
| False Alarm Filtering | Supported |
| Best Snapshot Selection | Supported |
| LightHunter | Provides High Image Quality in Low-Light Environments |
| ILLUMINATOR | |
|---|---|
| IR Range | Up to 150m |
| IR Wavelength | 850nm |
| IR Control | Auto / Manual |
| Smart IR | Supported |
| STORAGE | |
|---|---|
| Edge Storage | MicroSD, Up to 512GB |
| NETWORK | |
|---|---|
| Network Interface | 1 × RJ45 10/100Mbps Base-TX Ethernet |
| ONVIF | Supported |
| Network Protocol | TCP, UDP, DHCP, DNS, DDNS, NTP, FTP, HTTP, HTTPS, RTSP, RTP, RTCP, SMTP, SNMP, UPnP, IPv4, IPv6 and 802.1x |
| Compatible Integration | ONVIF / API |
| Video Output | Not Supported |
| AUDIO & ALARM | |
|---|---|
| Audio Input | 1 Input |
| Audio Output | 1 Output |
| Audio Input Specification | Impedance 1kΩ, Amplitude 2.5V [p-p] |
| Audio Output Specification | Impedance 600Ω, Amplitude 2.5V [p-p] |
| Alarm Input | 2 Channels |
| Alarm Output | 1 Channel |
| RS485 | 1 × RS485 |
| Built-in Microphone | Not Supported |
| Built-in Speaker | Not Supported |
| POWER & PROTECTION | |
|---|---|
| Power Supply | DC 12V ±10% / PoE+ (IEEE 802.3at) |
| Maximum Power Consumption | 25W |
| Surge Protection | 6KV |
| Protection | IP66 / IK10 |
| PHYSICAL & ENVIRONMENT | |
|---|---|
| Dimensions | Ø220 × 370mm |
| Weight | 3.3kg |
| Operating Temperature | -40°C to 65°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | ≤95% RH, Non-Condensing |
| Storage Humidity | ≤95% RH, Non-Condensing |
| Heater | Supported |
| Installation | Indoor / Outdoor |
Note: The Uniview IPC6612SR-X25-VG is a 2MP 25X LightHunter IR Network PTZ Dome Camera featuring a 1/2.8″ progressive scan CMOS sensor, 5~125mm motorized zoom lens, 25X optical zoom and 120dB optical WDR. It supports 1920 × 1080 video at up to 30fps, Ultra 265/H.265/H.264/MJPEG compression, Smart Intrusion Prevention, false alarm filtering, best snapshot selection, Smart IR up to 150m, MicroSD storage up to 512GB and LightHunter technology for low-light environments. The camera supports DC 12V and PoE+ (IEEE 802.3at).
Important: The IPC6612SR-X25-VG is a 2MP PTZ Dome Camera with 25X optical zoom, 120dB optical WDR and Smart IR up to 150m. It supports Smart Intrusion Prevention with Cross Line, Intrusion, Enter Area and Leave Area Detection, as well as false alarm filtering and best snapshot selection. The camera supports PoE+ (IEEE 802.3at), has 2 alarm inputs / 1 alarm output, 1 audio input / 1 audio output, 1 × RS485, 6KV surge protection and IP66 / IK10 protection. Maximum power consumption is 25W.
