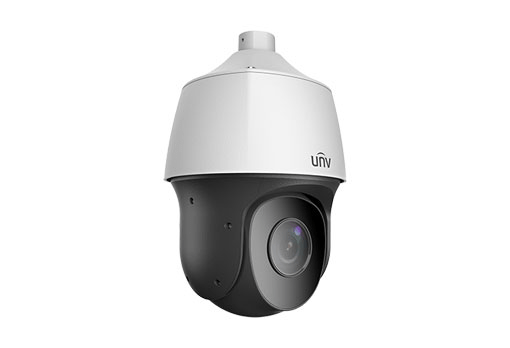

Specifications Uniview IPC6612SR-X33-VG
| Features | Description |
|---|---|
| Device Type | 2MP 33X LightHunter IR Network PTZ Dome Camera |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Maximum Resolution | 1920 × 1080 |
| Optical Zoom | 33X |
| Digital Zoom | Not Specified |
| IR Range | Up to 150 m |
| WDR | 120dB Optical WDR |
| Video Compression | Ultra 265 / H.265 / H.264 / MJPEG |
| Smart Features | Smart Intrusion Prevention, People Counting, Exception Detection |
| Storage | MicroSD up to 512GB |
| Protection | IP66 / IK10 |
| CAMERA | |
|---|---|
| Image Sensor | 1/2.8″ 2.0 Megapixel Progressive Scan CMOS |
| Minimum Illumination | Color: 0.001 Lux (F1.5, AGC ON), 0 Lux with IR |
| Day/Night | IR-Cut Filter with Auto Switch (ICR) |
| Shutter | Auto / Manual, 1/1 to 1/100000s |
| WDR | 120dB |
| S/N | >52dB |
| LENS | |
|---|---|
| Focal Length | 4.5 ~ 148.5mm |
| Optical Zoom | 33X |
| Iris | F1.5 ~ F4.0 |
| Field of View | H: 56.23° ~ 2.57° / V: 33.46° ~ 1.44° / D: 69.16° ~ 3.03° |
| DORI | |
|---|---|
| Detect | 72.9m ~ 2187.9m |
| Observe | 29.2m ~ 875.2m |
| Recognize | 14.6m ~ 437.6m |
| Identify | 7.3m ~ 218.8m |
| VIDEO | |
|---|---|
| Video Compression | Ultra 265 / H.265 / H.264 / MJPEG |
| Main Stream | 1080P (1920 × 1080), Max 30fps |
| Sub Stream | 720P (1280 × 720), Max 30fps |
| Third Stream | D1 (720 × 576), Max 30fps |
| Video Bit Rate | 128Kbps ~ 16Mbps |
| Video Stream | Triple Streams |
| U-Code | Supported |
| ROI | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | 24 Areas, Up to 4 Areas per Scene |
| IMAGE | |
|---|---|
| White Balance | Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2 |
| Digital Noise Reduction | 2D / 3D DNR |
| HLC | Supported |
| BLC | Supported |
| Smart IR | Supported |
| Defog | Digital Defog |
| Heatwave Reduction | Supported |
| Flip | Normal / Vertical / Horizontal / 180° |
| PTZ | |
|---|---|
| Pan Range | 360° Endless |
| Pan Speed | 2°/s ~ 75°/s |
| Tilt Range | -15° ~ 90° (Auto Reverse) |
| Tilt Speed | 2°/s ~ 75°/s |
| Preset | 1024 Presets |
| Preset Patrol | 16 Patrols, Up to 64 Presets per Patrol |
| Route Patrol | 16 Patrols, Up to 32 Actions per Patrol |
| Recorded Patrol | 16 Patrols, Up to 128 Actions per Patrol |
| Patrol Stay Time | 15s ~ 1800s |
| Home Position | Supported |
| Preset Image Freeze | Supported |
| SMART FEATURES | |
|---|---|
| Smart Intrusion Prevention | Cross Line, Intrusion, Enter Area, Leave Area Detection with False Alarm Filtering |
| Target Classification | Human, Vehicle and Non-Motor Vehicle Classification |
| People Counting | People Flow Counting / Crowd Density Detection |
| Exception Detection | Object Removed / Object Left Behind |
| ILLUMINATOR | |
|---|---|
| IR Range | Up to 150m |
| Wavelength | 850nm |
| IR Control | Auto / Manual |
| STORAGE | |
|---|---|
| Edge Storage | MicroSD, Up to 512GB |
| Network Storage | ANR / NAS (NFS) |
| NETWORK | |
|---|---|
| Network Interface | 1 × RJ45 10/100Mbps Base-TX Ethernet |
| ONVIF | Profile S / G / T |
| Compatible Integration | ONVIF / API / SDK |
| Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
| Users | Up to 32 Users |
| Video Output | Not Supported |
| AUDIO & ALARM | |
|---|---|
| Audio Input | 1 Input |
| Audio Output | 1 Output |
| Audio Compression | G.711U / G.711A |
| Audio Bit Rate | 128Kbps |
| Two-Way Audio | Supported |
| Sampling Rate | 16KHz |
| Alarm Input | 2 Channels |
| Alarm Output | 1 Channel |
| RS485 | 1 × RS485 |
| Built-in Microphone | Not Supported |
| Built-in Speaker | Not Supported |
| POWER & PROTECTION | |
|---|---|
| Power Supply | DC 12V ±10% / PoE+ (IEEE 802.3at) |
| Maximum Power Consumption | 25W |
| Surge Protection | 6KV |
| Protection | IP66 / IK10 |
| PHYSICAL & ENVIRONMENT | |
|---|---|
| Dimensions | Ø220 × 370mm |
| Weight | 3.4kg |
| Operating Temperature | -40°C to 65°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | ≤95% RH, Non-Condensing |
| Storage Humidity | ≤95% RH, Non-Condensing |
| Heater | Supported |
Note: The Uniview IPC6612SR-X33-VG is a 2MP 33X LightHunter IR Network PTZ Dome Camera featuring a 1/2.8″ CMOS sensor, 4.5~148.5mm motorized zoom lens, 33X optical zoom, 120dB optical WDR and Smart IR up to 150m. It supports 1920 × 1080 video at up to 30fps, Ultra 265/H.265/H.264/MJPEG compression, Smart Intrusion Prevention, people counting, exception detection and MicroSD storage up to 512GB. It supports DC 12V and PoE+ (IEEE 802.3at) power supply.
Important: The IPC6612SR-X33-VG is a 2MP PTZ Dome Camera with 33X optical zoom and 120dB optical WDR. It features LightHunter technology, Smart IR up to 150m, Smart Intrusion Prevention, People Counting and Exception Detection. It supports PoE+ (IEEE 802.3at) and DC 12V, with 2 alarm inputs / 1 alarm output, 1 audio input / 1 audio output, 1 × RS485, 6KV surge protection and IP66 / IK10 protection. Maximum power consumption is 25W.
