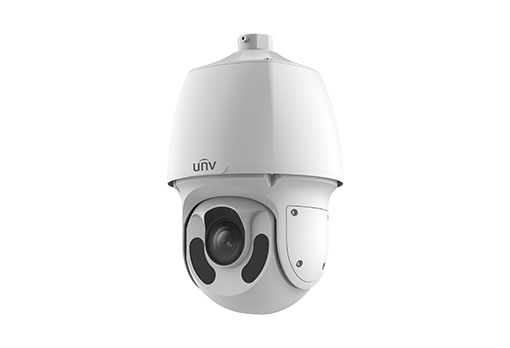

Specifications Uniview IPC6622SR-X33-VF
| Features | Description |
|---|---|
| Device Type | 2MP 33X LightHunter IR Network PTZ Dome Camera |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Maximum Resolution | 1920 × 1080 |
| Optical Zoom | 33X |
| Digital Zoom | 16X |
| IR Range | Up to 150 m |
| WDR | 120dB |
| Video Compression | Ultra 265 / H.265 / H.264 / MJPEG |
| Smart Features | Smart Intrusion Prevention, People Counting, Best Snapshot Selection |
| Storage | MicroSD up to 512GB |
| Protection | IP66 |
| CAMERA | |
|---|---|
| Image Sensor | 1/2.8″ 2.0 Megapixel Progressive Scan CMOS |
| Minimum Illumination | Color: 0.001 Lux (F1.5, AGC ON), 0 Lux with IR |
| Day/Night | IR-Cut Filter with Auto Switch (ICR) |
| Shutter | Auto / Manual, 1/1 to 1/100000s |
| WDR | 120dB |
| S/N | >52dB |
| LENS | |
|---|---|
| Focal Length | 4.5 ~ 148.5mm |
| Optical Zoom | 33X |
| Digital Zoom | 16X |
| Iris | Auto, F1.5 ~ F4.0 |
| Field of View | H: 56.2° ~ 2.6° / V: 33.5° ~ 1.4° / D: 69.1° ~ 3.1° |
| DORI | |
|---|---|
| Detect | 72.9m ~ 2187.9m |
| Observe | 29.2m ~ 875.2m |
| Recognize | 14.6m ~ 437.6m |
| Identify | 7.3m ~ 218.8m |
| VIDEO | |
|---|---|
| Video Compression | Ultra 265 / H.265 / H.264 / MJPEG |
| Main Stream | 2MP (1920 × 1080), Max 60fps |
| Sub Stream | 2MP (1920 × 1080), Max 60fps |
| Third Stream | D1 (720 × 576), Max 60fps |
| Video Bit Rate | 128Kbps ~ 16Mbps |
| Video Stream | Triple Streams |
| U-Code | Supported |
| ROI | Supported |
| OSD | Up to 10 OSDs |
| Privacy Mask | 24 Areas, Up to 4 Areas per Scene |
| IMAGE | |
|---|---|
| White Balance | Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2 |
| Digital Noise Reduction | 2D / 3D DNR |
| HLC | Supported |
| BLC | Supported |
| Smart IR | Supported |
| Defog | Digital Defog |
| Heatwave Reduction | Supported |
| Image Flip | Normal / Vertical / Horizontal / 180° / 90° Clockwise / 90° Anti-clockwise |
| PTZ | |
|---|---|
| Pan Range | 360° Endless |
| Pan Speed | 0.1°/s ~ 200°/s |
| Tilt Range | -15° ~ 90° (Auto Reverse) |
| Tilt Speed | 0.1°/s ~ 200°/s |
| Preset | Up to 1024 Presets |
| Preset Patrol | 16 Patrols, Up to 64 Presets per Patrol |
| Route Patrol | 16 Patrols, Up to 32 Actions per Patrol |
| Recorded Patrol | 16 Patrols, Up to 128 Actions per Patrol |
| Home Position | Supported |
| Preset Image Freeze | Supported |
| SMART FEATURES | |
|---|---|
| Smart Intrusion Prevention | Cross Line, Intrusion, Enter Area, Leave Area Detection |
| False Alarm Filtering | Human, Vehicle and Non-Motor Vehicle Classification |
| People Counting | People Flow Counting / Crowd Density Monitoring |
| Best Snapshot Selection | Supported, Including Face Detection Masked Area |
| Exception Detection | Object Removed / Object Left Behind |
| ILLUMINATOR | |
|---|---|
| IR Range | Up to 150m |
| Wavelength | 850nm |
| IR Control | Auto / Manual |
| STORAGE | |
|---|---|
| Edge Storage | MicroSD, Up to 512GB |
| Network Storage | ANR / NAS (NFS) |
| NETWORK | |
|---|---|
| Network Interface | 1 × RJ45 10/100Mbps Base-TX Ethernet |
| ONVIF | Profile S / G / T / M |
| Compatible Integration | ONVIF / API / SDK |
| Network Protocol | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
| Users | Up to 32 Users |
| Video Output | 1 × BNC for Debugging |
| AUDIO & ALARM | |
|---|---|
| Audio Input | 1 Input |
| Audio Output | 1 Output |
| Audio Compression | G.711U / G.711A |
| Audio Bit Rate | 128Kbps |
| Two-Way Audio | Supported |
| Sampling Rate | 16KHz |
| Alarm Input | 2 Channels |
| Alarm Output | 1 Channel |
| RS485 | 1 × RS485 |
| Built-in Microphone | Not Supported |
| Built-in Speaker | Not Supported |
| POWER & PROTECTION | |
|---|---|
| Power Supply | AC 24V ±25% / DC 24V ±25% / PoE (PSE Required) |
| Maximum Power Consumption | 53.72W |
| Surge Protection | 6KV |
| Protection | IP66 |
| PHYSICAL & ENVIRONMENT | |
|---|---|
| Dimensions | Ø227 × 384.8mm |
| Weight | 5.39kg |
| Operating Temperature | -40°C to 70°C |
| Operating Humidity | ≤95% RH, Non-Condensing |
| Storage Temperature | -40°C to 70°C |
| Storage Humidity | ≤95% RH, Non-Condensing |
| Heater | Supported |
Note: The Uniview IPC6622SR-X33-VF is a 2MP 33X LightHunter IR Network PTZ Dome Camera featuring a 1/2.8″ CMOS sensor, 4.5~148.5mm motorized zoom lens, 33X optical zoom and 16X digital zoom. It supports 1920 × 1080 video at up to 60fps, Ultra 265/H.265/H.264/MJPEG compression, Smart Intrusion Prevention, people counting, best snapshot selection and MicroSD storage up to 512GB. Its Smart IR provides up to 150m illumination distance.
Important: The IPC6622SR-X33-VF is a 2MP PTZ Dome Camera with 33X optical zoom and 16X digital zoom. It features LightHunter technology, 120dB WDR, Smart IR up to 150m, Smart Intrusion Prevention, People Counting and Best Snapshot Selection. It supports PoE (PSE Required), AC 24V and DC 24V, with 2 alarm inputs / 1 alarm output, 1 audio input / 1 audio output, 1 × RS485, 6KV surge protection and IP66 protection. Maximum power consumption is 53.72W.
