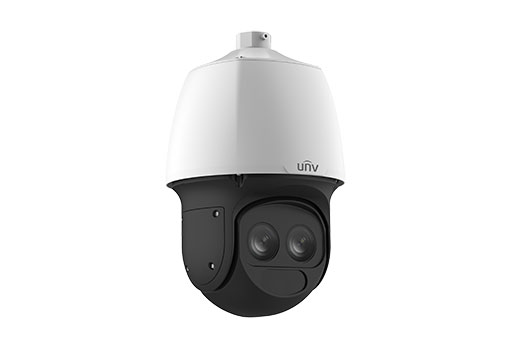

Specifications Uniview IPC6652EL-X33-VF
| Features | Description |
|---|---|
| Device Type | 2MP 33X LightHunter Laser IR Network PTZ Camera |
| Image Sensor | 1/2.8″ 2MP Progressive Scan CMOS |
| Maximum Resolution | 1920 × 1080 |
| Optical Zoom | 33X |
| Digital Zoom | 16X |
| Laser IR Range | Up to 500 m |
| WDR | 120dB |
| Video Compression | Ultra 265 / H.265 / H.264 / MJPEG |
| Smart Features | Smart Intrusion Prevention, People Counting, Best Snapshot Selection |
| Protection | IP66 |
| CAMERA | |
|---|---|
| Image Sensor | 1/2.8″ 2.0 Megapixel Progressive Scan CMOS |
| Minimum Illumination | Color: 0.001 Lux (F1.5, AGC ON), 0 Lux with IR |
| Day/Night | IR-Cut Filter with Auto Switch (ICR) |
| Shutter | Auto / Manual, 1/1 to 1/100000s |
| WDR | 120dB |
| S/N | >52dB |
| LENS | |
|---|---|
| Focal Length | 4.5 ~ 148.5mm |
| Optical Zoom | 33X |
| Digital Zoom | 16X |
| Iris | Auto, F1.5 ~ F4.0 |
| Field of View | H: 56.2° ~ 2.6° / V: 33.5° ~ 1.4° / D: 69.2° ~ 3.0° |
| DORI | |
|---|---|
| Detect | 72.9m ~ 2187.9m |
| Observe | 29.2m ~ 875.2m |
| Recognize | 14.6m ~ 437.6m |
| Identify | 7.3m ~ 218.8m |
| VIDEO | |
|---|---|
| Video Compression | Ultra 265 / H.265 / H.264 / MJPEG |
| Main Stream | 2MP (1920 × 1080), Max 60fps |
| Sub Stream | 2MP (1920 × 1080), Max 60fps |
| Third Stream | D1 (720 × 576), Max 60fps |
| Video Bit Rate | 128Kbps ~ 16Mbps |
| Video Stream | Triple Streams |
| U-Code | Supported |
| ROI | Up to 8 Areas |
| OSD | Up to 8 OSDs |
| Privacy Mask | 24 Areas, Up to 4 Areas per Scene |
| IMAGE | |
|---|---|
| White Balance | Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2 |
| Digital Noise Reduction | 2D / 3D DNR |
| HLC | Supported |
| BLC | Supported |
| Defog | Digital Defog |
| Heatwave Reduction | Supported |
| EIS | Not Supported |
| PTZ | |
|---|---|
| Pan Range | 360° Endless |
| Pan Speed | 0.1°/s ~ 180°/s |
| Tilt Range | -15° ~ 90° |
| Tilt Speed | 0.1°/s ~ 180°/s |
| Preset | Up to 500 Presets |
| Preset Patrol | 8 Patrols, Up to 32 Presets per Patrol |
| Route Patrol | 8 Patrols, Up to 32 Actions per Patrol |
| Recorded Patrol | 4 Patrols, Up to 128 Actions per Patrol |
| Home Position | Supported |
| Preset Image Freeze | Supported |
| SMART FEATURES | |
|---|---|
| Smart Intrusion Prevention | Cross Line, Intrusion, Enter Area, Leave Area Detection |
| False Alarm Filtering | Human, Vehicle and Non-Motor Vehicle Classification |
| People Counting | People Flow Counting / Crowd Density Monitoring |
| Best Snapshot Selection | Supported |
| ILLUMINATOR | |
|---|---|
| Illuminator Type | Vari-Focal Laser |
| IR Range | Up to 500m |
| Wavelength | 850nm |
| IR Control | Auto / Manual |
| STORAGE | |
|---|---|
| Edge Storage | MicroSD, Up to 512GB |
| Network Storage | ANR / NAS (NFS) |
| NETWORK | |
|---|---|
| Network Interface | 1 × RJ45 10/100Mbps Base-TX Ethernet |
| ONVIF | Profile S / G / T / M |
| Network Protocol | TCP/IP, UDP, HTTP, HTTPS, FTP, SMTP, DHCP, DNS, DDNS, NTP, RTSP, RTP, RTCP, UPnP, SNMP, IPv4, IPv6, 802.1x, QoS, SSL/TLS |
| Users | Up to 32 Users |
| Video Output | 1 × BNC |
| AUDIO & ALARM | |
|---|---|
| Audio Input | 1 Input |
| Audio Output | 1 Output |
| Two-Way Audio | Supported |
| Alarm Input | 2 Channels |
| Alarm Output | 1 Channel |
| RS485 | 1 × RS485 |
| Built-in Microphone | Not Supported |
| Built-in Speaker | Not Supported |
| POWER & PROTECTION | |
|---|---|
| Power Supply | AC 24V ±25% / DC 24V ±25% / PoE (PSE Required) |
| Maximum Power Consumption | 53W |
| Surge Protection | 6KV |
| Protection | IP66 |
| PHYSICAL & ENVIRONMENT | |
|---|---|
| Dimensions | Ø270 × 385mm |
| Weight | 5.6kg |
| Operating Temperature | -40°C to 70°C |
| Operating Humidity | ≤95% RH, Non-Condensing |
| Storage Temperature | -40°C to 70°C |
| Storage Humidity | ≤95% RH, Non-Condensing |
Note: The Uniview IPC6652EL-X33-VF is a 2MP 33X LightHunter Laser IR Network PTZ Camera featuring a 1/2.8″ CMOS sensor, 4.5~148.5mm motorized zoom lens, 33X optical zoom and 16X digital zoom. It supports 1920 × 1080 video at up to 60fps, Ultra 265/H.265/H.264/MJPEG compression, Smart Intrusion Prevention, people counting, best snapshot selection and MicroSD storage up to 512GB. Its vari-focal laser illuminator provides up to 500m IR illumination.
Important: The IPC6652EL-X33-VF is a PTZ Camera with 2MP resolution and 33X optical zoom. It features LightHunter technology, 120dB WDR, a 500m vari-focal laser IR illuminator, Smart Intrusion Prevention, People Counting and Best Snapshot Selection. It supports AC 24V, DC 24V and PoE (PSE Required), with 2 alarm inputs / 1 alarm output, 1 audio input / 1 audio output, 1 × RS485, 6KV surge protection and IP66 protection. Maximum power consumption is 53W.
