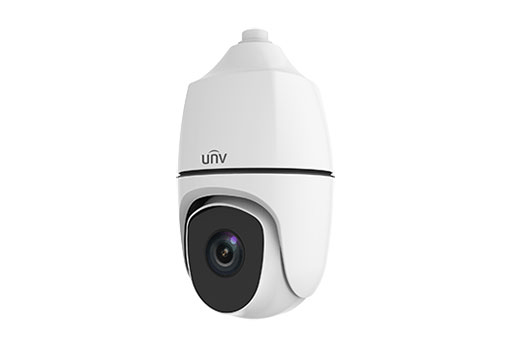

Specifications Uniview IPC6854ER-X40-VF

Features	Description
Device Type	4MP 40X LightHunter IR Network PTZ Dome Camera
Image Sensor	1/1.8″ 4MP Progressive Scan CMOS
Maximum Resolution	2688 × 1520
Optical Zoom	40X
Digital Zoom	16X
IR Range	Up to 250 m
Video Compression	Ultra 265 / H.265 / H.264 / MJPEG
Smart Features	Smart Intrusion Prevention, Face Detection, People Counting, Best Snapshot Selection
Protection	IP66
Power	AC 24V / DC 24V / PoE++ (IEEE 802.3bt)

CAMERA
Image Sensor	1/1.8″ 4.0 Megapixel Progressive Scan CMOS
Minimum Illumination	Color: 0.0005 Lux (F1.2, AGC ON), 0 Lux with IR
Day/Night	IR-Cut Filter with Auto Switch (ICR)
Shutter	Auto / Manual, 1/1 to 1/100000s
WDR	120dB
S/N	>56dB

LENS
Focal Length	5.7 ~ 228mm
Optical Zoom	40X
Digital Zoom	16X
Iris	Auto, F1.2 ~ F4.6
Field of View	H: 59.5° ~ 2.2° / V: 35.6° ~ 1.2° / D: 73.1° ~ 2.6°

DORI
5.7mm	Detect: 107.2m / Observe: 42.9m / Recognize: 21.4m / Identify: 10.7m
228mm	Detect: 3330.6m / Observe: 1332.2m / Recognize: 666.1m / Identify: 333.1m

VIDEO
Video Compression	Ultra 265 / H.265 / H.264 / MJPEG
Main Stream	4MP (2688 × 1520), Max 30fps
Sub Stream	2MP (1920 × 1080), Max 30fps
Third Stream	D1 (720 × 576), Max 30fps
Video Bit Rate	128Kbps ~ 16Mbps
Video Stream	Triple Streams
ROI	Up to 8 Areas
OSD	Up to 8 OSDs
Privacy Mask	24 Areas, Up to 4 Areas per Scene

Digital Noise Reduction	2D / 3D DNR
HLC	Supported
BLC	Supported
EIS	Supported
Defog	Digital Defog / Optical Defog

PTZ
Pan	360° Endless
Tilt	-15° ~ 90° (Auto Reverse)
Preset	Up to 1024 Presets
Preset Speed	240°/s
Pan Speed	0.1°/s ~ 180°/s
Tilt Speed	0.1°/s ~ 180°/s
Preset Patrol	16 Patrols, Up to 64 Presets per Patrol
Route Patrol	16 Patrols, Up to 32 Actions per Patrol
Recorded Patrol	16 Patrols, Up to 128 Actions per Patrol
Patrol Stay Time	15s ~ 1800s
Preset Image Freeze	Supported
Home Position	Supported

SMART FEATURES
Smart Intrusion Prevention	Cross Line, Intrusion, Enter Area, Leave Area Detection
False Alarm Filtering	Supported
Face Detection	Supported
People Counting	People Flow Counting / Crowd Density Monitoring
Best Snapshot Selection	Supported

ILLUMINATOR
IR Range	Up to 250m
Wavelength	850nm
IR Control	Auto / Manual

NETWORK
Network Interface	1 × RJ45 10/100Mbps Base-TX Ethernet
Network Protocol	TCP/IP, HTTP, HTTPS, FTP, SMTP, DHCP, DNS, DDNS, NTP, RTSP, RTP, RTCP, UPnP, SNMP
ONVIF	Supported
Video Output	1 × BNC for Debugging

INTERFACE
Audio I/O	1 Input / 1 Output
Alarm I/O	7 Inputs / 2 Outputs
Serial Port	1 × RS485
Built-in Microphone	Not Supported
Built-in Speaker	Not Supported

POWER & PROTECTION
Power Supply	AC 24V ±25% / DC 24V ±25% / PoE++ (IEEE 802.3bt)
Maximum Power Consumption	61W
Surge Protection	6KV
Protection	IP66

PHYSICAL & ENVIRONMENT
Dimensions	Ø270 × 497mm
Weight	9.69kg
Operating Temperature	-40°C to 70°C
Operating Humidity	≤95% RH, Non-Condensing
Storage Temperature	-40°C to 70°C
Storage Humidity	≤95% RH, Non-Condensing

Note: The Uniview IPC6854ER-X40-VF is a 4MP 40X LightHunter IR Network PTZ Dome Camera featuring a 1/1.8″ CMOS sensor and 5.7~228mm motorized zoom lens. It supports 40X optical zoom, 16X digital zoom, 2688 × 1520 video at up to 30fps, Ultra 265/H.265/H.264/MJPEG compression, Smart Intrusion Prevention, face detection, people counting and Smart IR up to 250m. The camera supports AC 24V, DC 24V and PoE++ (IEEE 802.3bt) power.

Important: The IPC6854ER-X40-VF is a PTZ Dome Camera with 4MP resolution and 40X optical zoom. It features LightHunter technology, 120dB WDR, 250m Smart IR, Smart Intrusion Prevention, Face Detection, People Counting and Best Snapshot Selection. It supports PoE++ (IEEE 802.3bt), AC 24V and DC 24V, with 7 alarm inputs / 2 alarm outputs, 1 audio input / 1 audio output, 1 × RS485, 6KV surge protection and IP66 protection. Maximum power consumption is 61W.
