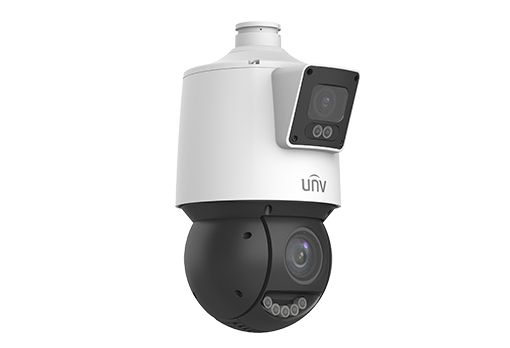

Specifications Uniview IPC94144SFW-X25-F40C

Features	Description
Device Type	4MP+4MP 25X ColorHunter MultiView Dual-light Network PTZ Camera
Camera Type	Dual-lens Network PTZ Camera with Panorama and Detail Channels
Panorama Channel	4MP Fixed Camera, 1/1.8″ CMOS
Detail Channel	4MP PTZ Camera, 1/2.7″ CMOS
Optical Zoom	25X
WDR	120dB
IR Range	Up to 100 m
Warm Light Range	Up to 30 m
Video Compression	Ultra 265 / H.265 / H.264 / MJPEG
Smart Features	Smart Intrusion Prevention, People Counting, Best Snapshot Selection, Exception Detection and PTZ Tracking Linkage
Storage	MicroSD up to 512GB
Power Supply	DC 12V / PoE+ (IEEE 802.3at)
Protection	IP66

CAMERA
Panorama Sensor	1/1.8″ 4MP CMOS
Detail Sensor	1/2.7″ 4MP CMOS
Panorama Minimum Illumination	Color: 0.0005 Lux (F1.0, AGC ON), 0 Lux with IR
Detail Minimum Illumination	Color: 0.003 Lux (F1.5, AGC ON), 0 Lux with IR
Day/Night	IR-Cut Filter with Auto Switch (ICR)
Shutter	Auto / Manual, 1/1 to 1/100000s
WDR	120dB
S/N	>56dB

LENS
Panorama Lens	4mm Fixed Lens, F1.0
Detail Lens	4.8 ~ 120mm AF Automatic Focusing Motorized Zoom Lens
Optical Zoom	25X
Panorama Field of View	H: 94.9° / V: 51.5° / D: 116.7°
Detail Field of View	H: 55.46° ~ 3.09° / V: 32.94° ~ 1.73° / D: 68.22° ~ 3.80°

DORI
Panorama – Detect	90.0m
Panorama – Observe	36.0m
Panorama – Recognize	18.0m
Panorama – Identify	9.0m
Detail – Detect	123.8m ~ 2475.0m
Detail – Observe	43.2m ~ 1080.0m
Detail – Recognize	21.6m ~ 540.0m
Detail – Identify	10.8m ~ 270.0m

VIDEO
Video Compression	Ultra 265 / H.265 / H.264 / MJPEG
Panorama Main Stream	4MP (2688 × 1520), Max 30fps
Panorama Sub Stream	720P (1280 × 720), Max 30fps
Panorama Third Stream	D1 (720 × 576), Max 30fps
Detail Main Stream	4MP (2688 × 1520), Max 30fps
Detail Sub Stream	1080P (1920 × 1080), Max 30fps
Detail Third Stream	D1 (720 × 576), Max 30fps
Video Bit Rate	128Kbps ~ 16Mbps
Video Stream	Triple Streams
U-Code	Supported
ROI	Supported
OSD	Up to 8 OSDs
Privacy Mask	Panorama: Up to 4 Areas / Detail: 24 Areas, Up to 4 Areas per Scene

White Balance	Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2
Digital Noise Reduction	2D / 3D DNR
HLC	Supported
BLC	Supported
Smart IR	Supported
Defog	Digital Defog
Heatwave Reduction	Supported
Flip	Normal / Vertical / Horizontal / 180°

PTZ
Pan Range	360°
Pan Speed	0.1°/s ~ 80°/s
Tilt Range	-15° ~ 90°
Tilt Speed	0.1°/s ~ 80°/s
Preset	Up to 1024 Presets
Preset Patrol	16 Patrols, Up to 64 Presets per Patrol
Route Patrol	16 Patrols, Up to 32 Actions per Patrol
Recorded Patrol	16 Patrols, Up to 128 Actions per Patrol
Patrol Stay Time	15s ~ 1800s
Home Position	Supported
Auto Tracking	Supported through Panorama Smart Intrusion Prevention Linkage

SMART FEATURES
Smart Intrusion Prevention	Cross Line Detection and Intrusion Detection with False Alarm Filtering
Target Classification	Human, Vehicle and Non-Motor Vehicle Classification
People Counting	People Flow Counting and Crowd Density Detection
Best Snapshot Selection	Supported, Including Face Detection Masked Area
Exception Detection	Object Left Behind, Object Removed and Scene Change
PTZ Linkage Tracking	PTZ Channel Can Automatically Track Targets Triggering Smart Intrusion Prevention on the Fixed Panorama Channel
Sound and Light Warning	Supported

ILLUMINATOR
IR Range	Up to 100m
Warm Light Range	Up to 30m
IR Wavelength	850nm
Supplemental Light	Warm Light
Light Control	Auto / Manual

STORAGE
Edge Storage	MicroSD, Up to 512GB
Network Storage	ANR

NETWORK
Network Interface	1 × RJ45 10/100Mbps Base-TX Ethernet
ONVIF	Profile S / G / T / M
Compatible Integration	ONVIF / API / SDK
Protocols	SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS
Users	Up to 32 Users
Video Output	Not Supported

AUDIO & ALARM
Audio Input	1 Input
Audio Output	1 Output
Audio Compression	G.711U / G.711A
Audio Bit Rate	128Kbps
Two-Way Audio	Supported
Sampling Rate	16KHz
Alarm Input	2 Channels
Alarm Output	1 Channel
RS485	1 × RS485
Built-in Microphone	Not Supported
Built-in Speaker	Supported

POWER & PROTECTION
Power Supply	DC 12V ±25% / PoE+ (IEEE 802.3at)
Maximum Power Consumption	24W
Surge Protection	4KV
Protection	IP66

PHYSICAL & ENVIRONMENT
Dimensions	304 × 195 × 163 mm
Weight	2.27kg
Operating Temperature	-40°C to 65°C
Storage Temperature	-40°C to 70°C
Operating Humidity	≤95% RH, Non-Condensing
Storage Humidity	≤95% RH, Non-Condensing

Note: The Uniview IPC94144SFW-X25-F40C is a 4MP+4MP ColorHunter MultiView dual-lens network PTZ camera integrating a 4MP Panorama camera and a 4MP PTZ Detail camera under one IP address. The Panorama channel uses a 1/1.8″ CMOS sensor with a 4mm F1.0 fixed lens, while the Detail channel uses a 1/2.7″ CMOS sensor with a 4.8~120mm motorized lens and 25X optical zoom. It supports 4MP video at up to 30fps, Smart Intrusion Prevention, People Counting, Best Snapshot Selection, PTZ linkage tracking, MicroSD storage up to 512GB, IR illumination up to 100m and warm light up to 30m.

Important: The IPC94144SFW-X25-F40C is a dual-lens 4MP+4MP PTZ camera combining a fixed Panorama channel and a 25X PTZ Detail channel in one device. The Panorama camera provides a wide 94.9° horizontal field of view, while the PTZ channel provides 25X optical zoom and can track targets triggered by Smart Intrusion Prevention on the Panorama channel. It supports PoE+ (IEEE 802.3at) or DC 12V, 2 alarm inputs / 1 alarm output, 1 audio input / 1 audio output, 1 × RS485, built-in speaker, 4KV surge protection and IP66 protection. Maximum power consumption is 24W.
