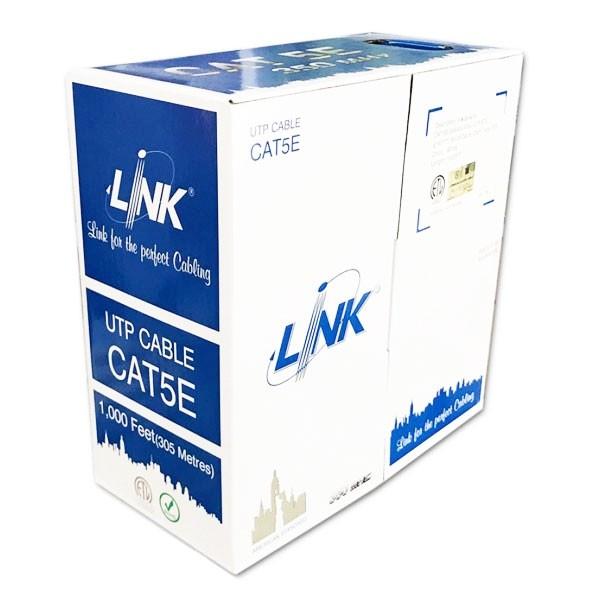

Specifications LINK US-9025LSZH
| Features | Description |
|---|---|
| Device Type | Indoor Stranded Patch Cord LAN Cable |
| Cable Category | CAT5E U/UTP Stranded Patch Cord Cable |
| Conductor | Stranded Bare Copper 24 AWG |
| Core Count | 4 Pairs (8 Wires) |
| Bandwidth | 350 MHz |
| Cable Construction | U/UTP 4-Pair Stranded Construction |
| Insulation | High Density Polyethylene (HDPE) |
| Outer Jacket | Low Smoke Zero Halogen (LSZH) White Jacket |
| Cable Length | 305 Meter / Reelex |
| Application | Patch Cord Assembly, Equipment Connections, Gigabit Ethernet, PoE, PoE+, Data, Voice, Video and Enterprise Network Infrastructure |
| Cable Standard | ANSI/TIA-568.2-D Category 5E, ISO/IEC 11801:2017 Class D |
|---|---|
| Category | Category 5E U/UTP Stranded |
| Frequency | 350 MHz |
| Conductor Size | 24 AWG Stranded Bare Copper |
| Number of Pairs | 4 Pairs (8 Conductors) |
| Impedance | 100 ± 15 Ohms, 1 MHz to 350 MHz |
| Mutual Capacitance | 5.6 nF max/100 m |
| DC Resistance | 9.38 Ohms max/100 m |
| Packaging | 305 Meter / Reelex |
| SMART FEATURES | |
|---|---|
| CAT5E Performance | Supports 10/100/1000 Mbps Gigabit Ethernet with Bandwidth up to 350 MHz |
| Stranded Conductor | Flexible Stranded Bare Copper Construction Provides Easier Handling and Installation for Patch Cord Applications |
| LSZH Safety | Low Smoke Zero Halogen Jacket Reduces Toxic Smoke and Corrosive Gas Emissions During Fire Conditions |
| PoE Support | Supports IEEE 802.3af PoE and IEEE 802.3at PoE+ Applications |
| Flexible Network Connection | Designed for Equipment Connections, Patch Panels, Network Switches and Structured Cabling Systems |
| GENERAL | |
|---|---|
| Cable Type | CAT5E U/UTP Stranded Indoor LSZH Patch Cord Cable |
| Installation Method | Indoor Equipment Connection and Patch Cord Installation |
| Minimum Bend Radius | 4 × Cable Diameter |
| Installation / Operating Temperature | -20°C to +60°C |
| Storage Temperature | -20°C to +80°C |
| Flame Rating | LSZH (Low Smoke Zero Halogen) |
| Standards Compliance | ANSI/TIA-568.2-D, ISO/IEC 11801:2017 Class D, EN 50173-1 Category 5E, ICEA S-90-661 Category 5E, EN 50288-3-1, NEMA WC 63.1, IEC 61156-5, ASTM D4566-98, IEC 60332-1, UL/CSA Listed, ETL and 3P Verified to Category 5E, RoHS |
| Warranty | 30 Years |
Note: The LINK US-9025LSZH is a CAT5E U/UTP stranded patch cord cable featuring 24 AWG stranded bare copper conductors, 4-pair construction and 350 MHz bandwidth performance. Its LSZH white jacket is designed to reduce toxic smoke and corrosive gas emissions during fire conditions. The stranded construction provides greater flexibility than solid-conductor LAN cable, making it suitable for equipment connections and patch cord applications. The cable is supplied in a 305-meter Reelex package.
Important: The LINK US-9025LSZH supports 10/100/1000 Mbps Gigabit Ethernet, IEEE 802.3af PoE and IEEE 802.3at PoE+ applications. Its CAT5E 350 MHz performance provides reliable transmission for data, voice, video and network equipment connections, while the LSZH jacket improves safety for indoor installations.
