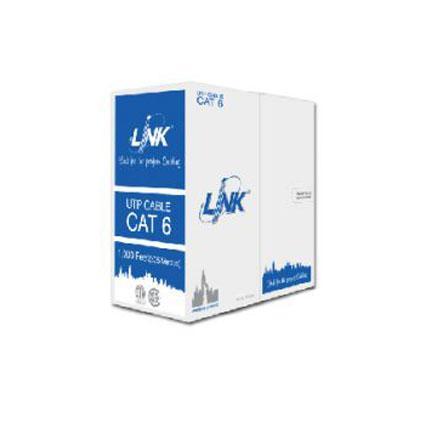

Specifications LINK US-9106BLSZH
| Features | Description |
|---|---|
| Device Type | Indoor Horizontal UTP LAN Cable |
| Cable Category | CAT6 U/UTP LSZH Cable |
| Conductor | Solid Bare Copper 23 AWG |
| Core Count | 4 Pairs (8 Wires) |
| Bandwidth | 250 MHz |
| Cable Construction | U/UTP with FRPE Cross Filler |
| Insulation | High Density Polyethylene (HDPE) |
| Outer Jacket | Lead-Free FR-LSZH Blue |
| Cable Length | 305 Meter / Reel |
| Application | Horizontal Cabling, Building Backbone, Gigabit Ethernet, 2.5G/5G BASE-T, 10G BASE-T, PoE, PoE+, Data, Voice, Video and Enterprise Networks |
| Cable Standard | ANSI/TIA-568.2-E Category 6, ISO/IEC Class E |
|---|---|
| Category | Category 6 U/UTP |
| Frequency | 250 MHz |
| Conductor Size | 23 AWG Solid Bare Copper |
| Number of Pairs | 4 Pairs (8 Conductors) |
| Cross Filler | FRPE Cross Filler for Pair Separation and Crosstalk Reduction |
| Cable Diameter | 5.9 ± 0.2 mm |
| Characteristic Impedance | 100 ± 5 Ohms, 1 MHz to 250 MHz |
| Packaging | 305 Meter / Reel |
| SMART FEATURES | |
|---|---|
| CAT6 Performance | Supports High-Speed Data Transmission up to Gigabit Ethernet, 2.5G/5G BASE-T and 10G BASE-T up to 55 Meters |
| Cross Filler Design | FRPE Cross Filler Maintains Pair Separation and Helps Reduce Crosstalk for Improved Signal Performance |
| LSZH Flame Retardant Jacket | Low Smoke Zero Halogen Jacket Reduces Toxic Smoke and Corrosive Gas Emissions During Fire Conditions |
| PoE Support | Supports IEEE 802.3af PoE, IEEE 802.3at PoE+ and IEEE 802.3bt Type 4 Applications |
| Reliable Connectivity | Designed for Data, Voice, Video, VoIP, CCTV and Structured Cabling Systems |
| GENERAL | |
|---|---|
| Cable Type | CAT6 U/UTP Indoor LSZH LAN Cable |
| Installation Method | Indoor Horizontal Cabling and Building Backbone Installation |
| Minimum Bend Radius | 4 × Cable Diameter |
| Installation / Operating Temperature | -20°C to +75°C |
| Storage Temperature | -20°C to +80°C |
| Flame Rating | LSZH (Low Smoke Zero Halogen) |
| Standards Compliance | ANSI/TIA-568.2-E, ANSI/TIA-568.2-D, ANSI/TIA-568-C.2, ISO/IEC 11801:2017 Class E, EN 50173-1 Category 6, EN 50288-6-1, IEC 61156-5, IEC 60332-1, IEC 60754-1, IEC 60754-2, IEC 61034-1, IEC 61034-2, ICEA S-102-700, ASTM D4566-98, NEMA WC 66, UL 444, CSA 22.2 No.214, RoHS |
| Warranty | 30 Years |
Note: The LINK US-9106BLSZH is a CAT6 U/UTP indoor LAN cable featuring 23 AWG solid bare copper conductors, 4-pair construction with FRPE cross filler, and 250 MHz bandwidth performance. It uses a lead-free FR-LSZH blue jacket designed to reduce toxic smoke and corrosive gas emissions during fire conditions, making it suitable for indoor horizontal structured cabling and enterprise network installations.
Important: The LINK US-9106BLSZH supports 10G BASE-T up to 55 meters, 2.5G/5G BASE-T, 10/100/1000 BASE-T, PoE, PoE+ and IEEE 802.3bt Type 4 applications. Its CAT6 250 MHz performance provides reliable transmission for data, voice, video, CCTV and modern network infrastructure, while the LSZH jacket improves safety for indoor installations.
