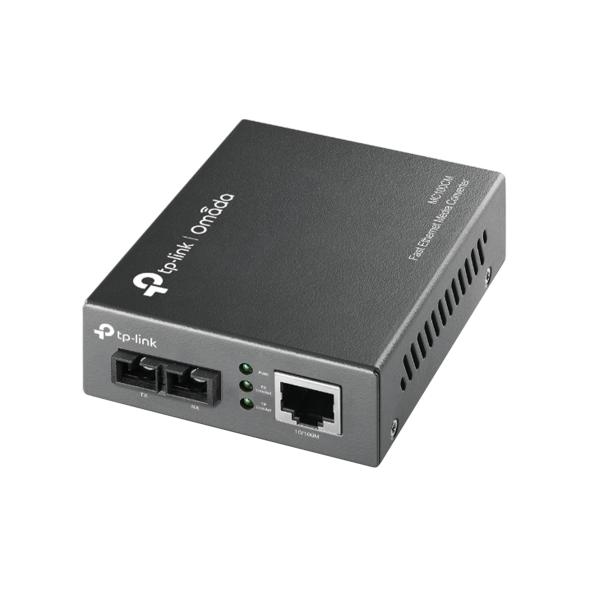

TP-Link MC100CM

MC100CM | 10/100Mbps Multi-Mode Media Converter

TP-Link MC100CM

10/100Mbps Multi-Mode Media Converter

  • 1 × 100Mbps SC/UPC fiber port and 1 × 10/100Mbps RJ45 port
  • Supports 62.5/125μm and 50/125μm multi-mode fiber
  • Transmission distance up to 2km over multi-mode fiber
  • 850nm TX and RX wavelength
  • Supports Auto MDI/MDIX and Auto-Negotiation of Half/Full Duplex
  • Compact design with external 9V/0.6A power adapter
หมวดหมู่: , , ป้ายกำกับ:

Specifications TP-Link MC100CM

Features Description
Product Type Fast Ethernet Multi-Mode Media Converter
Media Conversion 10/100Mbps Ethernet to 100Mbps Fiber
Ethernet Port 1 × 10/100Mbps RJ45
Fiber Port 1 × 100Mbps SC
Fiber Type Multi-Mode
Fiber Core 50/125μm or 62.5/125μm
Wavelength 850nm
Transmission Distance Up to 2km
NETWORK
Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ethernet Interface 1 × 10/100Mbps RJ45
Ethernet Speed 10/100Mbps
Auto-Negotiation Supported
Auto MDI/MDIX Supported
Duplex Mode Half-Duplex / Full-Duplex
FIBER
Fiber Interface 1 × 100Mbps SC
Fiber Type Multi-Mode
Fiber Core 50/125μm or 62.5/125μm
Wavelength 850nm
Transmission Distance Up to 2km
Fiber Mode Duplex Fiber
HARDWARE
Fiber Connector SC
Ethernet Connector RJ45
Network Media Multi-Mode Fiber / Cat.3 or above
Maximum UTP Distance 100m
LED Indicators PWR, FDX/Col, Link/Act, Link/Act
POWER
Power Supply External Power Adapter
Power Input 9V DC
FEATURES
Auto-Negotiation Supported
Auto MDI/MDIX Supported
Flow Control IEEE 802.3x
Store-and-Forward Supported
Switching Mode Store-and-Forward
PHYSICAL
Dimensions 94.5 × 73 × 27mm
Installation Desktop
ENVIRONMENT
Operating Temperature 0°C to 40°C
Storage Temperature -40°C to 70°C
Operating Humidity 10%–90% RH, Non-Condensing
Storage Humidity 5%–90% RH, Non-Condensing
CERTIFICATIONS
Certifications CE / FCC / RoHS

Note: The TP-Link MC100CM is a Fast Ethernet Multi-Mode Media Converter designed to convert 10/100Mbps Ethernet signals to 100Mbps fiber transmission. It features 1 × 10/100Mbps RJ45 Ethernet port and 1 × 100Mbps SC fiber port. The converter supports Multi-Mode 50/125μm or 62.5/125μm fiber, operates at 850nm and provides a transmission distance of up to 2km.

Important: The MC100CM is a Fast Ethernet Multi-Mode Media Converter featuring 1 × 10/100Mbps RJ45 Ethernet port and 1 × 100Mbps SC fiber port. It supports Multi-Mode 50/125μm or 62.5/125μm fiber at 850nm, with a maximum transmission distance of 2km. The MC100CM uses duplex fiber transmission, requiring separate transmit and receive fiber cores.

จัดจำหน่าย By บริษัทโฟกัส ซิสเต็ม แอนด์ ดีไซน์ ช่างติดเเละซ้อมกล้องวงจรปิด พัทยา ชลบุรี
