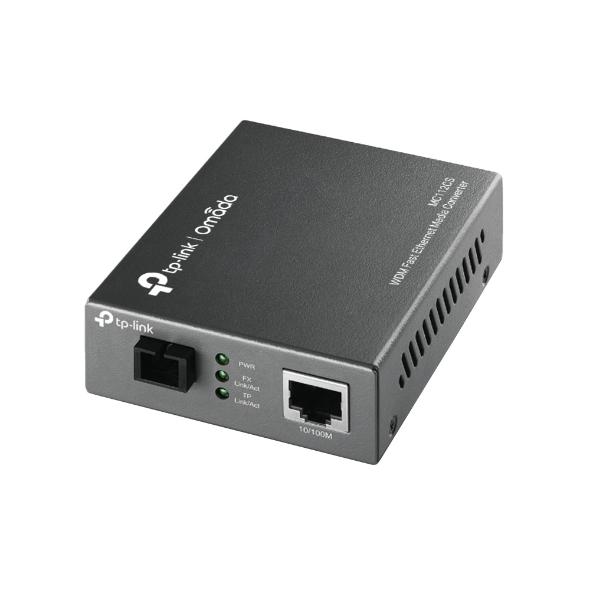

Specifications TP-Link MC112CS
| Features |
Description |
| Product Type |
10/100Mbps WDM Media Converter |
| Media Conversion |
10/100Mbps Ethernet to 100Mbps Fiber |
| Ethernet Port |
1 × 10/100Mbps RJ45 |
| Fiber Port |
1 × 100Mbps SC/UPC |
| Fiber Type |
Single-Mode |
| Fiber Core |
9/125μm |
| WDM |
Bi-Directional, Single-Fiber Transmission |
| Transmission Distance |
Up to 20km |
| NETWORK |
| Standards and Protocols |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Ethernet Interface |
1 × 10/100Mbps RJ45 |
| Ethernet Speed |
10/100Mbps |
| Auto-Negotiation |
Supported |
| Auto MDI/MDIX |
Supported |
| Duplex Mode |
Half-Duplex / Full-Duplex |
| FIBER |
| Fiber Interface |
1 × 100Mbps SC/UPC |
| Fiber Type |
Single-Mode |
| Fiber Core |
9/125μm |
| Fiber Transmission |
Single Fiber |
| Transmission Distance |
Up to 20km |
| TX Wavelength |
1310nm |
| RX Wavelength |
1550nm |
| WDM Technology |
Bi-Directional |
| HARDWARE |
| Fiber Connector |
SC/UPC |
| Ethernet Connector |
RJ45 |
| Network Media |
10BASE-T: Cat.3 or above
100BASE-TX: Cat.5 or above |
| Maximum UTP Distance |
100m |
| LED Indicators |
PWR, FDX/Col, Link/Act, Link/Act |
| POWER |
| Power Supply |
External Power Adapter |
| Power Input |
9V DC |
| FEATURES |
| WDM Technology |
Supported |
| Single-Fiber Transmission |
Supported |
| Auto-Negotiation |
Supported |
| Auto MDI/MDIX |
Supported |
| Flow Control |
IEEE 802.3x |
| Store-and-Forward |
Supported |
| PHYSICAL |
| Dimensions |
94.5 × 73 × 27mm |
| Installation |
Desktop |
| ENVIRONMENT |
| Operating Temperature |
0°C to 40°C |
| Storage Temperature |
-40°C to 70°C |
| Operating Humidity |
10%–90% RH, Non-Condensing |
| Storage Humidity |
5%–90% RH, Non-Condensing |
| CERTIFICATIONS |
| Certifications |
CE / FCC / RoHS |
Note: The TP-Link MC112CS is a 10/100Mbps WDM Media Converter featuring 1 × 10/100Mbps RJ45 Ethernet port and 1 × 100Mbps SC/UPC fiber port. It supports Single-Mode 9/125μm fiber and uses WDM technology to transmit and receive data over a single fiber strand. The maximum transmission distance is up to 20km. The MC112CS operates at 1310nm TX and 1550nm RX.
Important: The MC112CS is a 10/100Mbps WDM Media Converter featuring 1 × 10/100Mbps RJ45 port and 1 × 100Mbps SC/UPC Single-Mode fiber port. It uses WDM Bi-Directional technology to transmit data over one fiber core, supporting distances of up to 20km. The MC112CS uses 1310nm TX / 1550nm RX and must be paired with MC111CS, which uses the opposite wavelengths, for proper communication.
