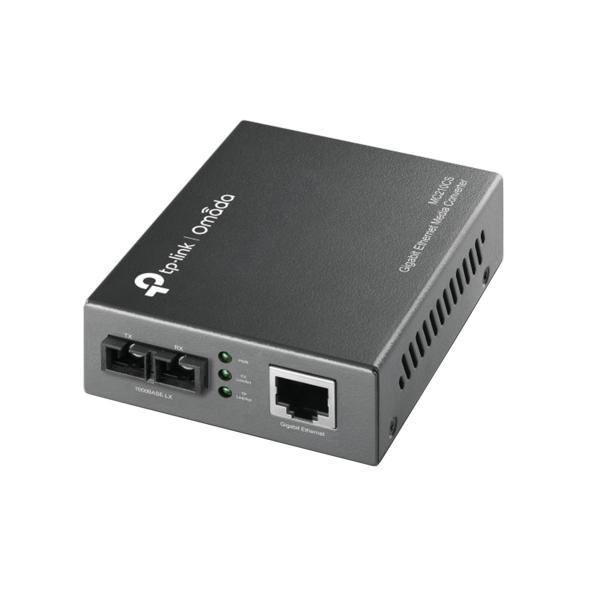

MC210CS | Gigabit Single-Mode Media Converter

TP-Link MC210CS

Gigabit Single-Mode Media Converter

1 × Gigabit SC/UPC fiber port and 1 × 10/100/1000Mbps RJ45 port
Supports 9/125μm single-mode fiber with transmission distance up to 15km
1310nm wavelength with SC/UPC connector
Supports Auto-Negotiation, Auto MDI/MDIX and IEEE 802.3x
Supports full-duplex and half-duplex transmission
Compact design with external 9V/0.6A power adapter

Specifications TP-Link MC210CS

Features	Description
Product Type	Gigabit Single-Mode Media Converter
Media Conversion	10/100/1000Mbps Ethernet to 1000Mbps Fiber
Ethernet Port	1 × 10/100/1000Mbps RJ45
Fiber Port	1 × Gigabit SC
Fiber Type	Single-Mode
Fiber Core	9/125μm
Transmission Distance	Up to 15km

NETWORK
Standards and Protocols	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Ethernet Interface	1 × 10/100/1000Mbps RJ45
Ethernet Speed	10/100/1000Mbps
Auto-Negotiation	Supported
Auto MDI/MDIX	Supported
Duplex Mode	Half-Duplex / Full-Duplex

FIBER
Fiber Interface	1 × Gigabit SC
Fiber Type	Single-Mode
Fiber Core	9/125μm
Wavelength	1310nm
Transmission Distance	Up to 15km
Fiber Mode	Duplex Fiber

HARDWARE
Fiber Connector	SC
Ethernet Connector	RJ45
Network Media	Single-Mode Fiber / Cat.5 or above
Maximum UTP Distance	100m
LED Indicators	PWR, FDX, Link/Act, Link/Act, RX

POWER
Power Supply	External Power Adapter
Power Input	9V DC

FEATURES
Auto-Negotiation	Supported
Auto MDI/MDIX	Supported
Flow Control	IEEE 802.3x
Store-and-Forward	Supported
Switching Mode	Store-and-Forward

PHYSICAL
Dimensions	94.5 × 73 × 27mm
Installation	Desktop

ENVIRONMENT
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Operating Humidity	10%–90% RH, Non-Condensing
Storage Humidity	5%–90% RH, Non-Condensing

CERTIFICATIONS
Certifications	CE / FCC / RoHS

Note: The TP-Link MC210CS is a Gigabit Single-Mode Media Converter designed to convert 10/100/1000Mbps Ethernet signals to 1000Mbps fiber transmission. It features 1 × 10/100/1000Mbps RJ45 Ethernet port and 1 × Gigabit SC fiber port. The converter supports Single-Mode 9/125μm fiber with a transmission distance of up to 15km and uses 1310nm wavelength.

Important: The MC210CS is a Gigabit Single-Mode Media Converter featuring 1 × 10/100/1000Mbps RJ45 Ethernet port and 1 × Gigabit SC fiber port. It supports Single-Mode 9/125μm fiber with a maximum transmission distance of 15km. Unlike WDM models such as the MC211CS-2 and MC212CS-2, the MC210CS uses duplex fiber transmission with separate transmit and receive fibers.
