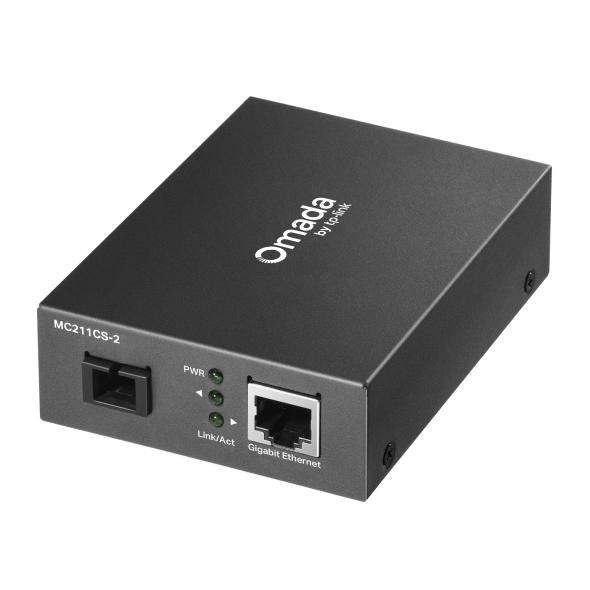

Specifications TP-Link MC211CS-2
| Features |
Description |
| Product Type |
Omada Gigabit WDM Media Converter |
| Media Conversion |
Gigabit Ethernet to Gigabit Fiber |
| Ethernet Port |
1 × 10/100/1000Mbps RJ45 |
| Fiber Port |
1 × Gigabit SC/UPC |
| Fiber Type |
Single-Mode |
| Fiber Core |
9/125μm |
| WDM |
Bi-Directional, Single-Fiber Transmission |
| Transmission Distance |
Up to 2km |
| NETWORK |
| Standards and Protocols |
IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z |
| Ethernet Interface |
1 × 10/100/1000Mbps RJ45 |
| Ethernet Speed |
10/100/1000Mbps |
| Auto-Negotiation |
Supported |
| Auto MDI/MDIX |
Supported |
| Duplex Mode |
Half-Duplex / Full-Duplex |
| FIBER |
| Fiber Interface |
1 × Gigabit SC/UPC |
| Fiber Type |
Single-Mode |
| Fiber Core |
9/125μm |
| Fiber Transmission |
Single Fiber |
| Transmission Distance |
Up to 2km |
| TX Wavelength |
1550nm |
| RX Wavelength |
1310nm |
| WDM Technology |
Bi-Directional |
| HARDWARE |
| Fiber Connector |
SC/UPC |
| Ethernet Connector |
RJ45 |
| Network Media |
100BASE-TX: Cat.5 or above, up to 100m
1000BASE-T: Cat.5e or above, up to 100m |
| LED Indicators |
PWR, Link/Act |
| POWER |
| Power Supply |
External Power Adapter |
| Power Input |
9V / 0.6A |
| FEATURES |
| WDM Technology |
Supported |
| Single-Fiber Transmission |
Supported |
| Auto-Negotiation |
Supported |
| Auto MDI/MDIX |
Supported |
| Flow Control |
IEEE 802.3x |
| PHYSICAL |
| Dimensions |
94.5 × 73 × 27mm |
| Installation |
Desktop |
| ENVIRONMENT |
| Operating Temperature |
-5°C to 50°C |
| Storage Temperature |
-40°C to 70°C |
| Operating Humidity |
10%–90% RH, Non-Condensing |
| Storage Humidity |
5%–90% RH, Non-Condensing |
| PACKAGE CONTENTS |
| Contents |
Media Converter, Power Adapter, Installation Guide |
Note: The TP-Link MC211CS-2 is an Omada Gigabit WDM Media Converter featuring 1 × 10/100/1000Mbps RJ45 port and 1 × Gigabit SC/UPC fiber port. It supports 9/125μm Single-Mode fiber and uses WDM technology to transmit and receive data over a single fiber strand. The maximum transmission distance is up to 2km. The MC211CS-2 operates at 1550nm TX and 1310nm RX.
Important: The MC211CS-2 is a Gigabit WDM Media Converter featuring 1 × 10/100/1000Mbps RJ45 port and 1 × Gigabit SC/UPC fiber port. It uses Single-Mode 9/125μm fiber and WDM technology to transmit data over one fiber core for distances of up to 2km. The MC211CS-2 uses 1550nm TX / 1310nm RX and must be paired with MC212CS-2, which uses the opposite wavelengths, for proper communication.
