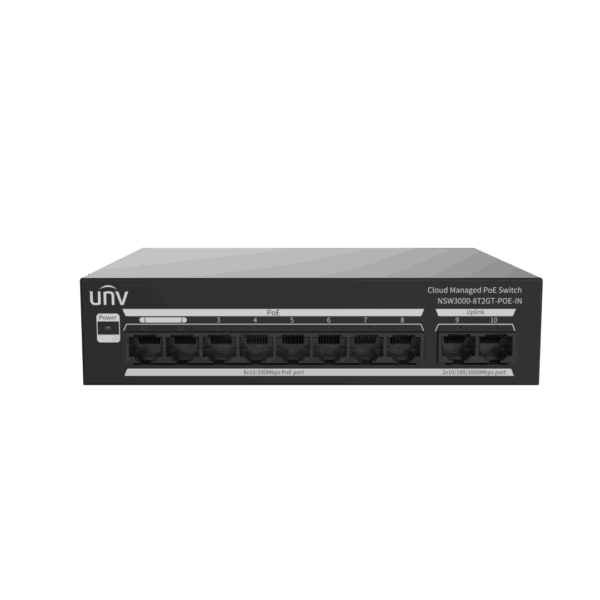

Specifications Uniview NSW3000-8T2GT-POE-IN
| Features | Description |
|---|---|
| Product Type | Cloud Managed Ethernet PoE Switch |
| PoE Ports | 8 x 10/100Mbps PoE RJ45 Ports |
| Uplink Ports | 2 x 10/100/1000Mbps Gigabit RJ45 Ports |
| Network Standards | IEEE 802.3, 802.3u, 802.3az, 802.3x, 802.3af, 802.3at |
| PoE Standard | IEEE 802.3af/at |
| PoE Budget | 120 W Total |
| PoE Output per Port | Up to 30 W |
| PoE Mode | Mode A (1/2+, 3/6-) and Mode B (4/5+, 7/8-) |
| Switching Capacity | 5.6 Gbps |
| Forwarding Performance | 4.17 Mpps |
| Packet Buffer | 2 Mbit |
| MAC Address Table | 4K Entries |
| NETWORK FEATURES | Description |
|---|---|
| VLAN | Access and Trunk Modes, Up to 32 VLANs |
| Link Aggregation | Supported on 2 Gigabit Uplink Ports |
| Loop Detection | Supported |
| Port Isolation | Supported |
| Port Mirroring | Supported |
| QoS | Port Rate Limitation and Broadcast Storm Control |
| Flow Control | Supported |
| Port Priority | Ports 1-2 |
| MANAGEMENT & SMART FEATURES | Description |
|---|---|
| Cloud Management | Supports Cloud-Based Configuration, Monitoring, and Maintenance |
| Web Management | Supported |
| Mobile Management | Supports Device Status and Network Topology Monitoring |
| Remote PoE Control | Enable, Disable, and Restart PoE Power Remotely |
| Video Device Discovery | Automatically Discovers Connected Video Devices |
| Network Topology | Automatic Topology Generation and Monitoring |
| Extended Transmission | Up to 250 m at up to 10 Mbps |
| Port Alarm | Reports Port Abnormalities for Real-Time Monitoring |
| GENERAL | Description |
|---|---|
| Power Supply | AC 100-240 V, 50/60 Hz |
| Maximum Power Consumption | 130 W |
| Cooling | Fanless |
| Housing | Metal |
| Dimensions | 169 mm x 132 mm x 40 mm |
| Weight | Approx. 0.67 kg |
| Operating Temperature | 0°C to 45°C |
| Operating Humidity | 5% to 90% RH, non-condensing |
| Storage Temperature | -40°C to 70°C |
| Storage Humidity | 5% to 90% RH, non-condensing |
| Compliance | NDAA Compliant |
Note: The Uniview NSW3000-8T2GT-POE-IN is an 8-port cloud-managed PoE switch featuring 8 x 10/100Mbps PoE ports and 2 x Gigabit RJ45 uplink ports. It provides a 120 W total PoE budget with up to 30 W per port.
Important: The NSW3000-8T2GT-POE-IN supports cloud and web management, remote PoE control, automatic video device discovery, VLAN, link aggregation, loop detection, and extended transmission up to 250 meters at 10 Mbps.
