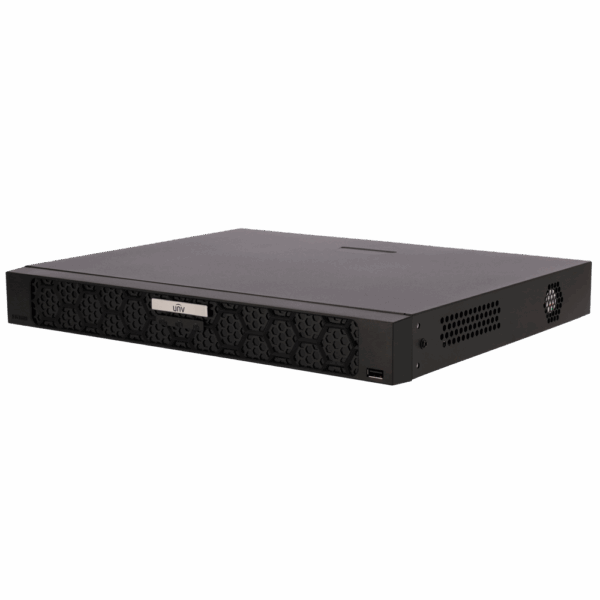

Specifications Uniview NVR502-16B-IQ

Features	Description
Product Type	16-Channel 1U Network Video Recorder
IP Video Input	16 Channels
Maximum Recording Resolution	Up to 16MP
Video Compression	Ultra 265 / H.265 / H.264
Incoming Bandwidth	320Mbps (Smart Off) / 160Mbps (Smart On)
Outgoing Bandwidth	160Mbps
HDD Interface	2 × SATA
Maximum HDD Capacity	Up to 16TB per HDD
RAID	RAID 1
HDMI Output	1 × HDMI, up to 4K
VGA Output	1 × VGA

VIDEO / AUDIO INPUT
IP Video Input	16 Channels
Audio Input	1 × RCA
Video Input Type	IP Camera

VIDEO RECORDING
Video Compression	Ultra 265 / H.265 / H.264
Recording Resolution	16MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P / D1 / 2CIF / CIF
Incoming Bandwidth	320Mbps (Smart Off) / 160Mbps (Smart On)
Outgoing Bandwidth	160Mbps
Synchronous Playback	16 Channels
Live View Display	1 / 4 / 6 / 8 / 9 / 16
Corridor Mode	3 / 4 / 5 / 7 / 9 / 10 / 12 / 16
Snapshot	Up to 4 Channels, up to 4K Resolution

DECODING
Decoding Format	Ultra 265 / H.265 / H.264
Smart Off	2 × 16MP@30, 2 × 12MP@30, 4 × 4K@30, 8 × 4MP@30, 10 × 3MP@30, 16 × 1080P@30
Smart On	2 × 12MP@30, 2 × 4K@30, 6 × 4MP@30, 8 × 3MP@30, 12 × 1080P@30, 16 × 720P@30

VIDEO OUTPUT
HDMI Output	1 × HDMI, up to 3840 × 2160 @ 30Hz
VGA Output	1 × VGA, up to 1920 × 1080 @ 60Hz
Independent Output	HDMI and VGA Independent Output

AUDIO
Audio Compression	G.711A / G.711U
Audio Input	1 × RCA
Audio Output	1 × RCA
Two-Way Audio	1 × RCA, Using Audio Input and Output

STORAGE
SATA Interface	2 × SATA
Maximum Capacity	Up to 16TB per HDD
Disk Group	Supported
Redundant Storage	Supported
Disk Array Type	RAID 1
ANR	Supported

NETWORK
Network Interface	2 × RJ45 10/100/1000Mbps Self-Adaptive Ethernet
ONVIF	Profile S / Profile G / Profile T
Protocols	TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, IPv6
Remote Users	Up to 128 Users
ANR	Supported
Cloud Upgrade	Supported

SMART
Smart Intrusion Prevention	Up to 4 Channels by NVR
Ultra Motion Detection	Up to 8 Channels by NVR
Vehicle Detection	Supported
People Counting	People Flow Counting / Crowd Density Monitoring
Video Metadata	Supported
Traffic Monitoring	Supported
Heat Map	Supported
Search by Image	Supported

ALARM
Alarm Input	8 Channels
Alarm Output	2 Channels
Motion Detection	Supported
Video Loss	Supported
Tampering Detection	Supported
Human Body Detection	Supported
Audio Detection	Supported

INTERFACE
Network	2 × RJ45 Gigabit Ethernet
USB	Front: 1 × USB 2.0 Rear: 1 × USB 2.0, 1 × USB 3.0
RS485	1 × RS485
RS232	Not Supported

POWER
Power Supply	DC 12V / 3A
Power Switch	Supported
Power Consumption	≤12W, Without HDD

PHYSICAL
Form Factor	1U
Dimensions	380 × 315 × 53mm
Weight	≤2kg, Without HDD

ENVIRONMENT
Operating Temperature	-10°C to +50°C
Operating Humidity	≤90% RH, Non-Condensing

Note: The Uniview NVR502-16B-IQ is a 16-channel 1U Network Video Recorder supporting Ultra 265, H.265 and H.264 video compression with recording resolution up to 16MP. It provides 320Mbps incoming bandwidth in Smart Off mode and 160Mbps in Smart On mode, with 160Mbps outgoing bandwidth. The NVR features 2 × SATA interfaces supporting up to 16TB per HDD, RAID 1, ANR, 2 × Gigabit Ethernet ports, HDMI up to 4K, VGA output and 16-channel synchronous playback.

Important: The NVR502-16B-IQ is a 16-channel IP Network Video Recorder supporting up to 16MP recording. It provides 320Mbps incoming bandwidth with Smart Off and 160Mbps with Smart On, plus 160Mbps outgoing bandwidth. It supports 2 × SATA HDDs up to 16TB each with RAID 1, 2 × Gigabit Ethernet ports, 8 alarm inputs / 2 alarm outputs, 1 × RS485, HDMI up to 4K, and Smart Intrusion Prevention on up to 4 channels. It supports 16-channel synchronous playback and ONVIF Profile S/G/T.
