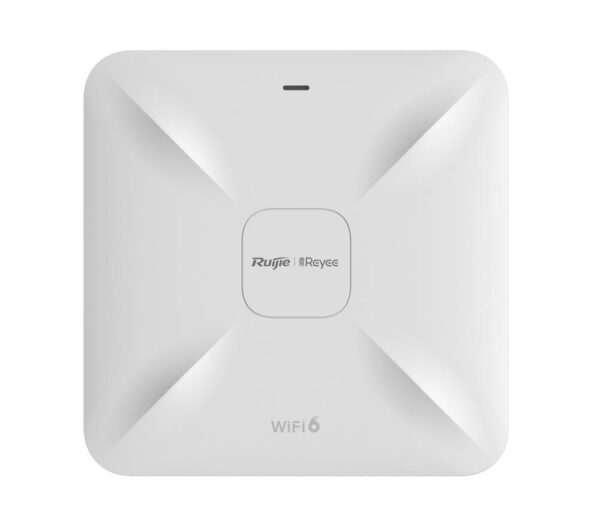

Specifications Ruijie Reyee RG-RAP2260(G)
| Features | Description |
|---|---|
| Device Type | Wi-Fi 6 AX1800 Ceiling / Wall-Mount Access Point |
| Brand / Series | Ruijie Reyee / Professional Indoor AP Series |
| Wireless Standard | Wi-Fi 6 (IEEE 802.11ax, backward compatible with 802.11a/b/g/n/ac) |
| Max. Wireless Speed | Up to 1775 Mbps Total Throughput (2.4 GHz: 574 Mbps, 5 GHz: 1201 Mbps) |
| Antenna Type | Built-in Omni-directional Antennas (2.4 GHz: 3 dBi, 5 GHz: 3 dBi) |
| Spatial Streams / MIMO | Dual-Radio Dual-Stream (2.4 GHz: 2×2 MIMO, 5 GHz: 2×2 MU-MIMO) |
| Network Interfaces | 2 x 10/100/1000 Base-T Ports (LAN1 Port Supports IEEE 802.3af/at PoE In) |
| Power Supply Options | IEEE 802.3af/at PoE or Local 12V / 1.5A DC Power Adapter |
| Application | Indoor Coverage: Offices, Retail Shops, Hotels, Classrooms, and Medium-Density Environments |
| Max. Client Capacity | Recommended up to 512 Total Clients (Recommended active concurrent users: ~100) |
| Max. Power Consumption | ≤ 15.5 W |
| Management Platforms | Ruijie Cloud App, Web GUI, and Centralized Ruijie Cloud Platform |
| Advanced Features | Reyee Mesh, AI Roaming, Fast Transition (802.11r), VLAN Assignment, and Captive Portal Authentication |
| SMART FEATURES | Description |
|---|---|
| Gigabit Dual-Port Design | Equipped with dual 1GbE ports to support flexible wired passthrough or redundant uplink configurations during deployment |
| Efficient Wi-Fi 6 AX1800 | Leverages OFDMA and 1024-QAM technology to deliver smooth wireless streaming and dependable multi-user performance |
| Reyee Mesh Technology | Enables effortless wireless bridging and multi-AP pairing across buildings without complex cable setups |
| Unified Cloud Management | Allows remote configuration, topology mapping, and real-time maintenance through the Ruijie Cloud mobile app or web browser |
| GENERAL | Description |
|---|---|
| Dimensions & Weight | 194 mm x 194 mm x 35 mm (approximately 0.56 kg excluding mounting bracket) |
| Operating Conditions | 0°C to 40°C (32°F to 104°F), Operating Humidity: 5% to 95% non-condensing |
| Warranty | 3-Year Standard Manufacturer Warranty |
Note: The Ruijie Reyee RG-RAP2260(G) is an entry-to-mid range AX1800 Wi-Fi 6 ceiling-mount access point offering dual gigabit ports and reliable 2×2 MU-MIMO spatial streams. Designed for general business environments, it balances high-speed wireless connectivity with intuitive mesh integration and cloud manageability.
Important: The RG-RAP2260(G) can be powered via standard IEEE 802.3af/at PoE or an optional 12V/1.5A DC power adapter, consuming a maximum of 15.5 watts under full load.
