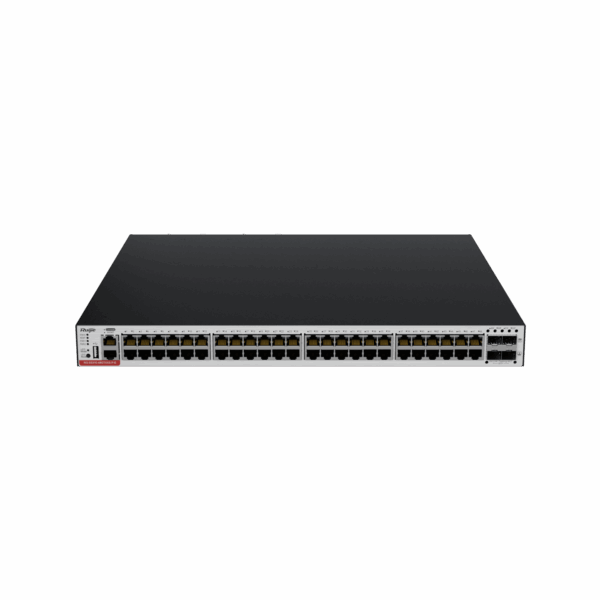

Specifications Ruijie Networks RG-CS83-48GT4XS-PD
| Features | Description |
|---|---|
| Device Type | 48-Port Layer 3 Managed Gigabit PoE+ Switch |
| Network Ports | 48 × 10/100/1000BASE-T RJ45 Ports with PoE/PoE+ |
| Uplink Ports | 4 × 1Gbps/10Gbps SFP+ Ports |
| Switching Capacity | 176 Gbps |
| Packet Forwarding Rate | 132 Mpps |
| MAC Address Table | 32K |
| PoE Standard | IEEE 802.3af/at PoE/PoE+ |
| Maximum PoE Output | 1,480W |
| VSU | Supported, Up to 4 Members |
| Power Supply | 2 × Modular Power Supply Slots |
| Management | Ruijie Cloud, CLI, Web, Telnet and SNMP |
| Design | 1U Rack-Mountable |
| INTERFACE | |
|---|---|
| Network Ports | 48 × 10/100/1000BASE-T RJ45 Ports, Supporting PoE/PoE+ |
| SFP+ Uplink Ports | 4 × 1GE/10GE SFP+ Ports |
| Console Port | 1 × RJ45 Console Port |
| Management Port | 1 × RJ45 MGMT Port |
| USB | 1 × USB Port |
| Power Module Slots | 2 × Modular Power Supply Slots |
| SWITCHING PERFORMANCE | |
|---|---|
| Switching Capacity | 176 Gbps |
| Packet Forwarding Rate | 132 Mpps |
| MAC Address Table | 32,000 |
| ARP Table | 4,000 |
| IPv4 Unicast Routes | 8,000 |
| IPv4 Multicast Routes | 2,500 |
| IPv6 Unicast Routes | 4,000 |
| IPv6 Multicast Routes | 1,200 |
| ACL Entries | Ingress: 3,500 / Egress: 1,500 |
| Switch Buffer | 3MB |
| VSU Members | Up to 4 |
| VLAN Translation | 4,094 |
| POE | |
|---|---|
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| PoE Ports | Ports 1–48 |
| Maximum PoE Output per Port | 30W |
| IEEE 802.3af Output | Up to 15.4W per Port |
| IEEE 802.3at Output | Up to 30W per Port |
| Maximum PoE Output | Up to 1,480W, Depending on Installed Power Modules |
| SMART FEATURES | |
|---|---|
| Ruijie Cloud | Cloud-Based Network Management, Monitoring and Configuration |
| VSU | Virtual Switching Unit, Supports Up to 4 Members |
| Zero Touch Provisioning | Supported |
| VLAN Management | Cloud-Based VLAN Configuration and Visualization |
| Network Monitoring | Real-Time Device Health, Traffic and Connectivity Monitoring |
| CPU Protect Policy | Controls Packet Types and Traffic Volume Sent to the CPU |
| Network Foundation Protection Policy | Protects the Network from Abnormal or Malicious Traffic |
| Hot-Swappable Power | Supported |
| LAYER 3 FEATURES | |
|---|---|
| Static Routing | Supported |
| RIP | Supported |
| OSPF | Supported |
| BGP | Supported |
| IPv4 / IPv6 | Supported |
| Policy-Based Routing | Supported |
| Multicast Routing | IGMP / PIM |
| ACL | Supported |
| SWITCHING FEATURES | |
|---|---|
| VLAN | IEEE 802.1Q, Up to 4K VLANs |
| Voice VLAN | Supported |
| Private VLAN | Supported |
| MAC VLAN | Supported |
| Protocol VLAN | Supported |
| QinQ | Basic QinQ / Selective QinQ |
| STP | STP / RSTP / MSTP |
| ERPS | IEEE G.8032 |
| Link Aggregation | LACP (IEEE 802.3ad) |
| LLDP | LLDP / LLDP-MED |
| Jumbo Frame | Up to 9216 Bytes |
| NETWORK MANAGEMENT | |
|---|---|
| Management Methods | Ruijie Cloud, Web, CLI, Telnet and SNMP |
| SNMP | SNMP v1 / v2c / v3 |
| RMON | Supported |
| Syslog | Supported |
| DHCP | DHCP Client / Server / Relay / Snooping |
| IPv6 | DHCPv6 Client / Relay / Snooping |
| Configuration Backup | Supported via USB |
| HARDWARE | |
|---|---|
| CPU | Dual-Core CPU, 1.2GHz per Core |
| Memory | 1GB |
| Flash Memory | 2GB |
| BootROM | 16MB |
| Switch Buffer | 3MB |
| Rack Height | 1U |
| POWER | |
|---|---|
| Power Supply Slots | 2 × Modular Power Supply Slots |
| Supported Power Modules | RG-PA600I-P-F / RG-PA1000I-P-F |
| Power Redundancy | Supported |
| Power Module Hot Swap | Supported |
| Maximum PoE Output | Up to 1,480W |
| PHYSICAL & ENVIRONMENT | |
|---|---|
| Dimensions | 442 × 420 × 43.6 mm |
| Weight | 4.6kg, Excluding Power Modules |
| Rack Installation | 19-inch Rack Mount, 1U |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Storage Humidity | 5% to 95% RH, Non-Condensing |
Note: The Ruijie RG-CS83-48GT4XS-PD is a 48-port Layer 3 managed Gigabit PoE+ switch designed for large-sized enterprise and campus networks. It provides 48 × 10/100/1000BASE-T RJ45 ports with PoE/PoE+ support and 4 × 1GE/10GE SFP+ uplink ports. The switch offers 176Gbps switching capacity, 132Mpps packet forwarding performance, a 32K MAC address table and up to 1,480W maximum PoE output depending on the installed power modules. It also supports VSU virtualization with up to four members, Layer 3 routing, VLAN, ACL, LACP, STP/RSTP/MSTP, ERPS and Ruijie Cloud management.
Important: The RG-CS83-48GT4XS-PD is a Layer 3 Managed PoE+ Switch, not an unmanaged switch. All 48 RJ45 ports support 10/100/1000Mbps and IEEE 802.3af/at PoE/PoE+, while the 4 SFP+ ports support 1Gbps/10Gbps uplinks. The switch uses modular power supplies and requires at least one compatible RG-PA600I-P-F or RG-PA1000I-P-F power module. The maximum PoE output is 1,480W.
