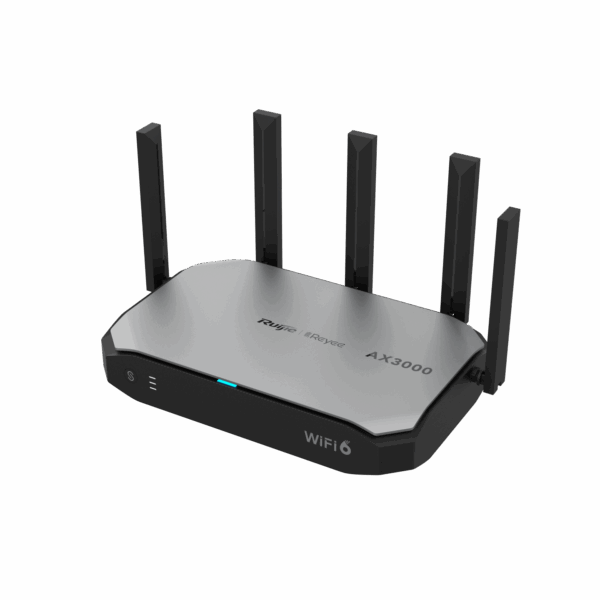

Specifications Reyee RG-EG105GW-X
| Features | Description |
|---|---|
| Product Type | Wi-Fi 6 AX3000 All-in-One Business Router |
| Wi-Fi Standard | Wi-Fi 6 (IEEE 802.11ax) |
| Wireless Speed | Up to 2,976Mbps |
| Ethernet Ports | 5 × 10/100/1000Mbps |
| WAN Ports | Up to 4 × Gigabit WAN |
| LAN Ports | Up to 4 × Gigabit LAN |
| Antennas | 5 × External 5dBi Antennas |
| Wireless MIMO | 2×2 @ 2.4GHz / 2×2 @ 5GHz |
| VPN | IPSec, OpenVPN, L2TP, PPTP |
| Mesh | Reyee Mesh |
| Management | Reyee Cloud Management |
| USB | 1 × USB 3.0 |
| HARDWARE | |
|---|---|
| WAN/LAN Ports | 5 × 10/100/1000 Base-T |
| Fixed WAN | 1 Port |
| Fixed LAN | 1 Port |
| Switchable WAN/LAN | 3 Ports |
| USB | 1 × USB 3.0 |
| CPU | Dual-Core 1.3GHz |
| RAM | 512MB |
| Flash Memory | 128MB |
| Antennas | 5 × External 5dBi |
| WIRELESS | |
|---|---|
| Wi-Fi Standard | IEEE 802.11ax/ac/n/a/b/g |
| 2.4GHz | 2×2 MIMO, up to 574Mbps |
| 5GHz | 2×2 MIMO, up to 2,402Mbps |
| Maximum Wireless Speed | 2,976Mbps |
| Channel Width | Up to 160MHz |
| Wireless Technology | OFDMA, 1024-QAM, MU-MIMO and Beamforming |
| Mesh | Reyee Mesh |
| NETWORK & ROUTING | |
|---|---|
| WAN | Up to 4 Gigabit WAN Ports |
| WAN Load Balancing | Supported |
| WAN Failover | Supported |
| DHCP | DHCP Server / Client |
| NAT | Port Forwarding, DMZ and UPnP |
| Dynamic DNS | Reyee DDNS |
| Captive Portal | Supported |
| Bandwidth Management | Application-Based and User-Based Bandwidth Policies |
| VPN | |
|---|---|
| IPSec VPN | Supported |
| OpenVPN | Supported |
| L2TP | Supported |
| PPTP | Supported |
| VPN Application | Site-to-Site and Remote Access VPN |
| MANAGEMENT | |
|---|---|
| Cloud Management | Reyee Cloud |
| Management | Web Interface / Mobile App / Cloud |
| Remote Monitoring | Supported |
| Remote Maintenance | Supported |
| Firmware Upgrade | Cloud-Based Firmware Upgrade |
| Reyee Mesh Management | Supported |
| GENERAL | |
|---|---|
| Recommended ISP Bandwidth | Up to 1.2Gbps |
| Recommended Wi-Fi Clients | Up to 80 Clients |
| Recommended Total Clients | Up to 160–180 Clients |
| Power Supply | 100–240V AC, 50/60Hz |
| Dimensions | 283 × 172 × 46mm (without antennas) |
Note: The Reyee RG-EG105GW-X is a Wi-Fi 6 AX3000 all-in-one business router featuring up to 2,976Mbps wireless speed, 5 Gigabit Ethernet ports, up to 4 WAN connections for load balancing and failover, Reyee Mesh, VPN, bandwidth management and cloud-based management.
Important: The RG-EG105GW-X provides 1 fixed WAN + 1 fixed LAN + 3 switchable WAN/LAN ports, allowing up to 4 WAN connections simultaneously. It is designed as an all-in-one router with built-in Wi-Fi rather than a standalone wireless access point.
