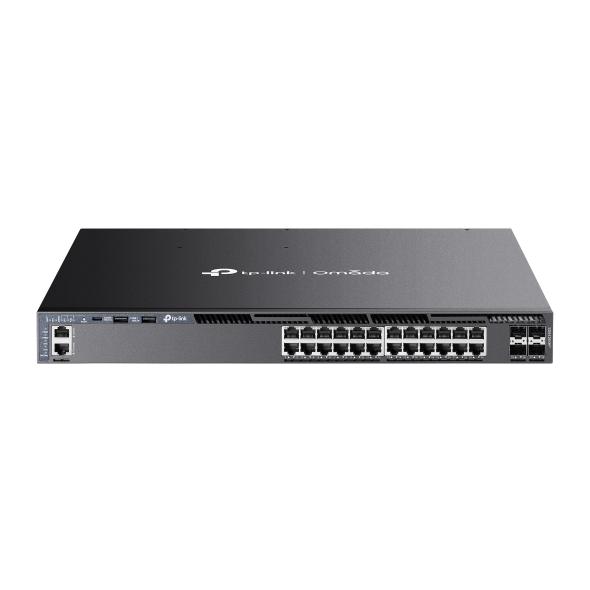

Specifications TP-Link SG6428XHP
| Features | Description |
|---|---|
| Device Type | 24-Port Gigabit Stackable L3 Managed PoE+ Switch |
| Network Ports | 24 × 10/100/1000 Mbps PoE+ RJ45 Ports |
| Uplink Ports | 4 × 10 Gbps SFP+ Slots |
| PoE Standard | IEEE 802.3af/at |
| PoE Ports | 24 Ports |
| PoE Budget | 402 W with 1 × PSM500-AC; Up to 720 W with Supported Power Supply Configuration |
| Switching Capacity | 128 Gbps |
| Packet Forwarding Rate | 95.2 Mpps |
| Layer 3 Routing | Static Routing, RIP, OSPF, ECMP and VRRP |
| Stacking | Physical Stacking up to 8 Units in Standalone Mode |
| Management | Omada SDN, Web GUI, CLI, SNMP and RMON |
| Power Supply | Hot-Swappable Redundant Power Supply, N+1 Redundancy |
| Application | Enterprise Networks, Campus Networks, SMB Networks, ISP Networks, Surveillance and High-Density PoE Deployments |
| Ethernet Ports | 24 × 10/100/1000 Mbps RJ45 PoE+ |
|---|---|
| Uplink Ports | 4 × 10 Gbps SFP+ |
| PoE Standard | IEEE 802.3af/at |
| PoE Ports | 24 |
| PoE Power | Up to 30 W per Port |
| PoE Budget | 402 W with 1 × PSM500-AC; Up to 720 W with 1 × PSM900-AC or Dual Power Supply Configuration |
| Fast PoE | Supported |
| Perpetual PoE | Supported |
| Switching Capacity | 128 Gbps |
| Forwarding Bandwidth | 64 Gbps |
| Packet Forwarding Rate | 95.2 Mpps |
| MAC Address Table | 32K |
| Packet Buffer | 24 Mbit |
| Jumbo Frame | 9 KB |
| Stacking | 10G SFP+ Slots Can Be Used as Stacking Ports |
| Stacking Bandwidth | Up to 80 Gbps with 4 Stacking Ports |
| Maximum Stacking | Up to 8 Units in Standalone Mode / 4 Units in Omada Controller Mode |
| Layer 3 Routing | Static Routing, RIP, OSPF, ECMP and VRRP |
| Multicast Routing | PIM-DM |
| DHCP | DHCP Server and DHCP Relay |
| VLAN | 802.1Q VLAN, Voice VLAN and Private VLAN |
| Link Aggregation | LACP and Static Link Aggregation |
| Spanning Tree | STP, RSTP, MSTP and ERPS |
| Security | ACL, 802.1X, MAB, Port Security, IP-MAC Binding, Dynamic ARP Inspection and DoS Defense |
| Console | 1 × RJ45 + 1 × USB Type-C |
| Management Port | 1 × RJ45 |
| USB Ports | 2 × USB 2.0 |
| Processor | Dual-Core ARM @ 1.5 GHz |
| Memory | 4 GB DDR4 |
| SMART FEATURES | |
|---|---|
| 24-Port Gigabit PoE+ | Provides 24 Gigabit PoE+ Ports Supporting IEEE 802.3af/at Devices with Up to 30 W per Port |
| Up to 720W PoE Budget | Supports High-Density PoE Deployments for Access Points, IP Cameras, VoIP Phones and Other Powered Devices |
| 10G SFP+ Uplink | Four 10G SFP+ Slots Provide High-Speed Fiber Connectivity and Can Also Be Used for Physical Stacking |
| L3 Routing | Supports Static Routing, RIP, OSPF, ECMP, VRRP, DHCP Server and DHCP Relay for Scalable Enterprise Networks |
| Physical Stacking | Supports Physical Stacking of Multiple Switches for Increased Redundancy, Management Efficiency and Network Capacity |
| Redundant Power | Supports Up to Two Hot-Swappable Power Supply Modules with N+1 Redundancy for Improved Network Availability |
| Perpetual PoE | Maintains PoE Power Delivery During Switch Reboots to Help Keep Connected PoE Devices Online |
| Omada SDN Management | Provides Centralized Cloud-Based Management Through Omada Controllers Together with Web GUI, CLI, SNMP and RMON Management |
| GENERAL | |
|---|---|
| Switch Type | L3 Managed Stackable PoE+ Switch |
| PoE Ports | 24 × Gigabit PoE+ |
| Uplink Ports | 4 × 10G SFP+ |
| PoE Budget | 402 W Default / Up to 720 W |
| Installation Method | Rackmount |
| Stacking | Up to 8 Units in Standalone Mode |
| Power Supply | 100–240 V AC, 50/60 Hz |
| Power Supply Module | PSM500-AC / PSM900-AC |
| Redundant Power | Up to 2 Hot-Swappable Power Supply Modules, N+1 Redundant |
| Operating Temperature | -5°C to 45°C at up to 2,000 m; -5°C to 40°C at up to 3,000 m |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Storage Humidity | 5% to 90% RH, Non-Condensing |
| Dimensions | 440 × 420 × 44 mm |
| Net Weight | 7.64 kg |
| Cooling | 4 × Hot-Swappable Fan Trays, N+1 Redundant |
| Airflow | Front-to-Back |
| Certification | CE, FCC and RoHS |
Note: The TP-Link SG6428XHP is a 24-port Gigabit Stackable L3 Managed PoE+ Switch featuring 24 × Gigabit PoE+ RJ45 ports and 4 × 10G SFP+ slots. It provides 128 Gbps switching capacity, 95.2 Mpps packet forwarding performance, advanced Layer 3 routing and physical stacking capabilities for enterprise and campus networks.
Important: The TP-Link SG6428XHP supports up to 720 W total PoE budget depending on the installed power supply configuration, with up to 30 W per PoE port. It also supports Fast PoE, Perpetual PoE, redundant hot-swappable power supplies, OSPF, RIP, ECMP, VRRP, ERPS, ACL, 802.1X and centralized Omada SDN management.
