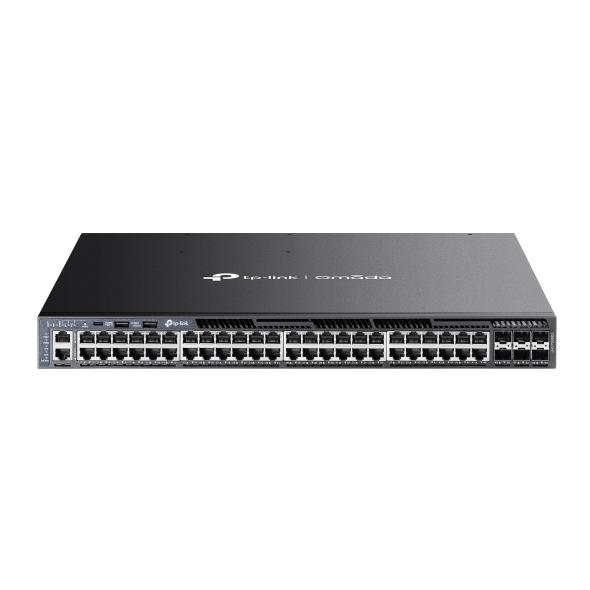

Specifications TP-Link SG6654XHP
| Features | Description |
|---|---|
| Device Type | 48-Port Gigabit Stackable L3 Managed PoE+ Switch |
| Network Ports | 48 × 10/100/1000 Mbps PoE+ RJ45 Ports |
| Uplink Ports | 6 × 10 Gbps SFP+ Slots |
| PoE Standard | IEEE 802.3af/at |
| PoE Ports | 48 Ports, Up to 30 W per Port |
| PoE Budget | Up to 1,440 W with 2 × PSM900-AC Power Supply Modules |
| Switching Capacity | 216 Gbps |
| Packet Forwarding Rate | 160.7 Mpps |
| Layer 3 Routing | Static Routing, RIP, OSPF, ECMP and VRRP |
| Stacking | Physical Stacking up to 8 Units in Standalone Mode |
| Management | Omada SDN, Web GUI, CLI, SNMP and RMON |
| Power Supply | Up to 2 Hot-Swappable Power Supply Modules with N+1 Redundancy |
| Application | Enterprise Networks, Campus Networks, SMB Networks, ISP Networks, Surveillance and High-Density PoE Deployments |
| Ethernet Ports | 48 × 10/100/1000 Mbps RJ45 PoE+ |
|---|---|
| Uplink Ports | 6 × 10 Gbps SFP+ |
| PoE Standard | IEEE 802.3af/at |
| PoE Ports | 48 |
| PoE Power | Up to 30 W per Port |
| PoE Budget | 384 W with 1 × PSM500-AC; 764 W with 1 × PSM900-AC; 812 W with 2 × PSM500-AC; 1,176 W with 1 × PSM500-AC + 1 × PSM900-AC; Up to 1,440 W with 2 × PSM900-AC |
| Fast PoE | Supported |
| Perpetual PoE | Supported |
| Switching Capacity | 216 Gbps |
| Forwarding Bandwidth | 108 Gbps |
| Packet Forwarding Rate | 160.7 Mpps |
| MAC Address Table | 32K |
| Packet Buffer | 3 MB |
| Jumbo Frame | 9 KB |
| Stacking Port | 10G SFP+ Slots; All Uplink Ports Can Be Used as Stacking Ports |
| Maximum Stacking | 8 Units in Standalone Mode / 4 Units in Controller Mode |
| Stacking Bandwidth | Up to 120 Gbps with 6 Stacking Ports |
| Layer 3 Routing | Static Routing, RIP v1/v2, OSPF v2/v3, ECMP and VRRP |
| Multicast Routing | PIM-DM and PIM-SM |
| DHCP | DHCP Server and DHCP Relay |
| VLAN | 802.1Q VLAN, Voice VLAN, Private VLAN and QinQ |
| Link Aggregation | Static Link Aggregation and LACP |
| Spanning Tree | STP, RSTP and MSTP |
| Ring Protection | ERPS |
| Multicast | IGMP Snooping, MLD Snooping and Multicast VLAN Registration |
| Security | ACL, 802.1X, MAB, Port Security, DHCP Snooping, Dynamic ARP Inspection, IP-MAC-Port Binding and DoS Defense |
| Console | 1 × RJ45 + 1 × USB Type-C |
| Management Port | 1 × RJ45 |
| USB Ports | 2 × USB 2.0 |
| Processor | Dual-Core ARM @ 1.5 GHz |
| Memory | 4 GB DDR4 |
| SMART FEATURES | |
|---|---|
| 48-Port Gigabit PoE+ | Provides 48 Gigabit PoE+ Ports Supporting IEEE 802.3af/at Devices with Up to 30 W per Port |
| 1,440W PoE Budget | Supports Up to 1,440 W Total PoE Power with Two PSM900-AC Power Supply Modules for High-Density PoE Deployments |
| 6× 10G SFP+ | Six 10G SFP+ Slots Provide High-Speed Fiber Uplinks and Can Also Be Used for Physical Stacking |
| L3 Routing | Supports Static Routing, RIP, OSPF, ECMP, VRRP, PIM-DM and PIM-SM for Scalable Enterprise and Campus Networks |
| High-Speed Stacking | Supports Physical Stacking of Up to 8 Units in Standalone Mode with Up to 120 Gbps Stacking Bandwidth |
| Redundant Power | Supports Two Hot-Swappable Power Supply Modules with N+1 Redundancy for Improved Network Availability |
| Perpetual PoE | Maintains PoE Power Delivery During Switch Reboots to Help Keep Connected PoE Devices Online |
| Fast PoE | Retains PoE Power Settings Across Reboots to Reduce Downtime for Connected Powered Devices |
| Omada SDN Management | Provides Centralized Cloud Management Through Omada SDN Controller Together with Web GUI, CLI, SNMP and RMON |
| GENERAL | |
|---|---|
| Switch Type | L3 Managed Stackable PoE+ Switch |
| PoE Ports | 48 × Gigabit PoE+ |
| Uplink Ports | 6 × 10G SFP+ |
| PoE Budget | Up to 1,440 W |
| Installation Method | Rackmount |
| Maximum Stacking | 8 Units in Standalone Mode / 4 Units in Controller Mode |
| Stacking Bandwidth | Up to 120 Gbps |
| Power Supply | 100–240 V AC, 50/60 Hz |
| Power Supply Module | PSM900-AC / PSM500-AC |
| Redundant Power | Up to 2 Hot-Swappable Power Supply Modules, N+1 Redundant |
| Cooling | 4 × Hot-Swappable Fan Trays, N+1 Redundant |
| Airflow | Front-to-Back |
| Operating Temperature | -5°C to 45°C at up to 2,000 m; -5°C to 40°C at up to 3,000 m |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Storage Humidity | 5% to 90% RH, Non-Condensing |
| Dimensions | 440 × 420 × 44 mm |
| Net Weight | 8.2 kg |
| MTBF | 648,538 Hours at 25°C |
| Certification | CE, FCC and RoHS |
Note: The TP-Link SG6654XHP is a 48-port Gigabit Stackable L3 Managed PoE+ Switch featuring 48 × Gigabit PoE+ RJ45 ports and 6 × 10G SFP+ slots. It provides 216 Gbps switching capacity, 160.7 Mpps packet forwarding performance and up to 1,440 W total PoE budget when equipped with two PSM900-AC power supply modules.
Important: The TP-Link SG6654XHP supports Fast PoE, Perpetual PoE, physical stacking, redundant hot-swappable power supplies, Static Routing, RIP, OSPF, ECMP, VRRP, PIM-DM, PIM-SM, ERPS, ACL, 802.1X and centralized Omada SDN management. The six 10G SFP+ slots can be used for high-speed uplinks or stacking, providing up to 120 Gbps stacking bandwidth.
