T1600G-28PS | JetStream 24-Port Gigabit Smart PoE+ Switch with 4 SFP Slots

T1600G-28PS | JetStream 24-Port Gigabit Smart PoE+ Switch with 4 SFP Slots

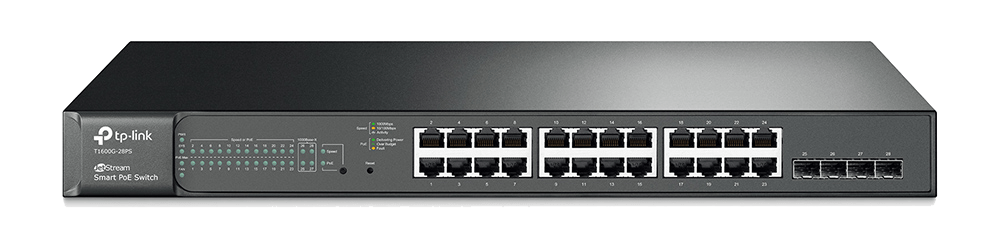

TP-Link T1600G-28PS

24-Port Gigabit Smart PoE+ Switch

  • 24×Gigabit RJ45 PoE+ ports with 4×Gigabit SFP slots
  • Supports IEEE 802.3af/at PoE with 192W power budget
  • Supports L2/L2+ features, Static Routing and VLAN
  • Advanced QoS, ACL, IGMP Snooping and IPv6 support
  • Web, CLI, SNMP and RMON management
  • Rackmount design for SMB and surveillance networks
หมวดหมู่: , , ป้ายกำกับ:

Specifications TP-Link T1600G-28PS

Features Description
Device Type 24-Port Gigabit Smart PoE+ Switch with 4 SFP Slots
Network Ports 24 × Gigabit PoE+ RJ45 Ports + 4 × Gigabit SFP Slots
PoE Standard IEEE 802.3af/at PoE+
PoE Budget Up to 192W Total PoE Power Budget
PoE Output Up to 30W Per PoE Port
Switching Capacity 56 Gbps
Packet Forwarding Rate 41.7 Mpps
Management Web UI, CLI, SNMP, RMON
Design 19-inch Rackmount Metal Housing
Application IP Camera, Wireless AP, VoIP, SMB Network
Power Supply 100-240V AC
Device Type Managed Gigabit PoE+ Switch
PoE Ports 24 × 10/100/1000Mbps RJ45 PoE+ Ports
SFP Slots 4 × Gigabit SFP Slots
Switching Capacity 56 Gbps
Packet Forwarding Rate 41.7 Mpps
MAC Address Table 16K
Packet Buffer Memory 1.5 MB
PoE FEATURES
PoE Standard IEEE 802.3af / IEEE 802.3at
PoE Output Up to 30W Per Port
Total PoE Budget Up to 192W
PoE Management Intelligent PoE Power Management
SMART FEATURES
VLAN 802.1Q VLAN, Private VLAN, Voice VLAN
QoS 802.1p/DSCP QoS with Priority Scheduling
Security ACL, 802.1X Authentication, Port Security
Management Web GUI, CLI, SNMP, RMON
NETWORK
Network Standard IEEE 802.3i / 802.3u / 802.3ab / 802.3z / 802.3x / 802.3af / 802.3at
Link Aggregation IEEE 802.3ad LACP
Spanning Tree STP / RSTP / MSTP
Multicast IGMP Snooping v1/v2/v3
PROTECTION
Access Control ACL, 802.1X Port Authentication
Storm Control Broadcast / Multicast / Unknown Unicast Control
Housing Metal Rackmount Case
Cooling 2 Smart Cooling Fans
GENERAL
Power Supply 100-240V AC, 50/60Hz
Operating Temperature 0°C to 40°C
Operating Humidity 10% to 90% RH (Non-Condensing)
Dimensions 440 × 220 × 44 mm
Installation 19-inch Rackmount

Note: Product specifications and software features are subject to change without prior notice. Please refer to the latest official datasheet before installation.

Important: The TP-Link T1600G-28PS is a 24-port Gigabit Smart PoE+ switch with a 192W PoE budget and 4 Gigabit SFP slots. It supports VLAN, QoS, ACL, and centralized management, making it ideal for enterprise and IP surveillance networks.>
