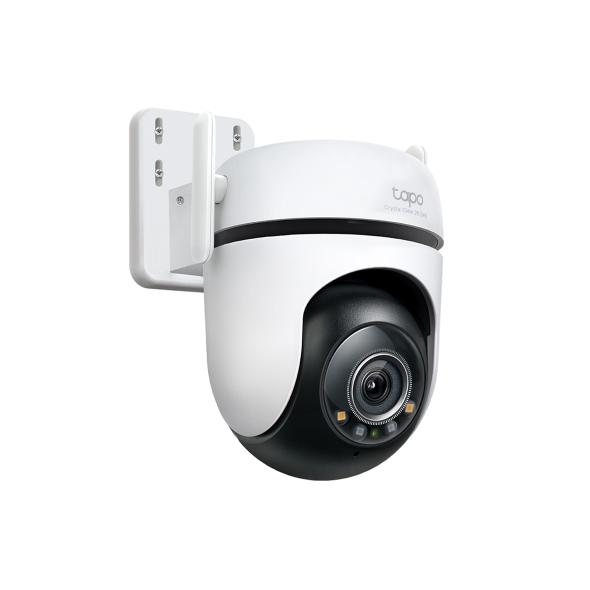

Specifications TP-Link Tapo C520WS
| Features | Description |
|---|---|
| Product Type | Outdoor Pan/Tilt Security Wi-Fi Camera |
| Resolution | 2K QHD 4MP (2560 × 1440 pixels) |
| Image Sensor | 1/3″ CMOS |
| Lens | 3.18mm, F1.6 Aperture |
| Pan/Tilt | 360° Horizontal Coverage / 130° Vertical Coverage |
| Night Vision | Starlight Color Night Vision and 850nm IR Night Vision up to 30m |
| Wireless | 2.4GHz Wi-Fi 6 (IEEE 802.11b/g/n/ax) |
| Ethernet | 1 × 10/100Mbps RJ45 Port |
| Storage | MicroSD Card up to 512GB and Tapo Care Cloud Storage |

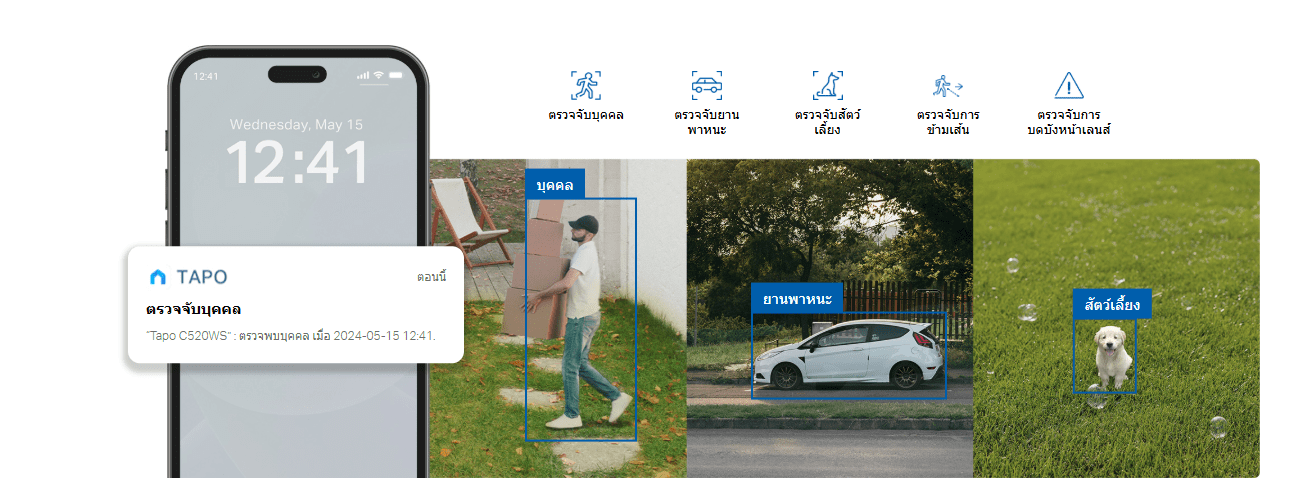

| AI Detection | Person, Pet, Vehicle, Motion and Line-Crossing Detection |
| Audio | Two-Way Audio with Noise Cancellation and 93dB Siren |
| Weather Resistance | IP66 |
| CAMERA | |
|---|---|
| Image Sensor | 1/3″ CMOS |
| Lens | 3.18mm ±5%, F1.61 ±10% |
| Maximum Resolution | 2K QHD 4MP (2560 × 1440 pixels) |
| Pan Range | 340° Mechanical Range / 360° Pan Coverage |
| Tilt Range | 90° Mechanical Range / 145.2° Tilt Coverage |
| View Range | 360° Horizontal / 130° Vertical |
| Frame Rate | 15/20/25/30 fps (Default 15 fps) |
| Digital Zoom | 12× |
| Video Compression | H.264 |
| Image Enhancement | 3DNR and WDR |
| Night Vision | 850nm IR LED up to 30m and Starlight Color Night Vision |
| Spotlights | 2 × Built-in Spotlights |
| VIDEO & AUDIO | |
|---|---|
| Live View | Supported |
| Audio Input | Built-in Microphone |
| Audio Output | Built-in Speaker |
| Two-Way Audio | Supported with Noise Cancellation |
| Siren | 93dB at 10cm |
| Custom Alarm | Customizable Sound and Light Alarm |
| DETECTION & NOTIFICATIONS | |
|---|---|
| Motion Detection | Supported |
| Person Detection | Supported |
| Pet Detection | Supported |
| Vehicle Detection | Supported |
| Line-Crossing Detection | Supported |
| Tamper Detection | Supported |
| Activity Zones | Supported |
| AI Detection | On-Device Machine Learning |
| STORAGE | |
|---|---|
| Local Storage | MicroSD Card up to 512GB |
| Cloud Storage | Tapo Care Cloud Storage Service (Subscription Required) |
| NETWORK | |
|---|---|
| Wireless Connectivity | 2.4GHz Wi-Fi |
| Wi-Fi Standard | IEEE 802.11b/g/n/ax (Wi-Fi 6) |
| Ethernet | 1 × 10/100Mbps RJ45 Port |
| RTSP | Supported |
| ONVIF | Supported |
| Security | 128-bit AES Encryption with SSL/TLS and WPA/WPA2-PSK |
| POWER | |
|---|---|
| Power Source | 9V DC Power Adapter |
| Input Voltage | 100–240V, 50/60Hz |
| Output Voltage | 9V / 0.85A DC |
| Power Adapter Cable | 3.0m |
| GENERAL | |
|---|---|
| Weather Resistance | IP66 Weatherproof |
| Smart Integration | Google Assistant and Amazon Alexa |
| Mounting | Ceiling-Mounted, Wall-Mounted or Pole-Mounted |
| Operating Temperature | -30°C to 60°C |
| Storage Temperature | -40°C to 60°C |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Dimensions | 123.8 × 123 × 90 mm |
| Certifications | CE, FCC and RoHS |
Note: The TP-Link Tapo C520WS is a 4MP 2K QHD Outdoor Pan/Tilt Security Wi-Fi Camera featuring Starlight Color Night Vision, 360° horizontal and 130° vertical coverage, AI-based person/pet/vehicle detection, two-way audio, local microSD storage up to 512GB and IP66 weather resistance. It supports both Wi-Fi and wired Ethernet connectivity, as well as RTSP and ONVIF.
Important: The Tapo C520WS uses a 9V DC power adapter. Although it has an Ethernet port, the official specification does not list PoE support; Ethernet is used for network connectivity while power is supplied separately.
