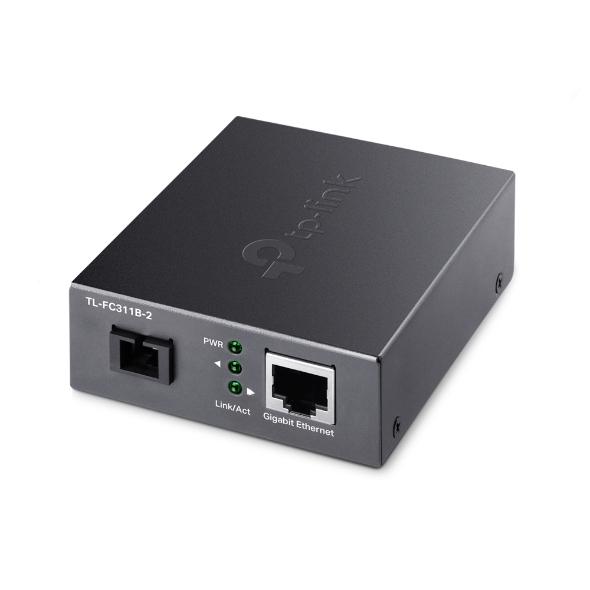

Specifications TP-Link TL-FC311B-2
| Features | Description |
|---|---|
| Product Type | Gigabit WDM Media Converter |
| Media Conversion | 10/100/1000Mbps Ethernet to 1000Mbps Fiber |
| Ethernet Port | 1 × Gigabit RJ45 |
| Fiber Port | 1 × SC Fiber Port |
| Fiber Type | Single-Mode |
| Wavelength | TX 1310nm / RX 1550nm |
| Maximum Transmission Distance | Up to 2km |
| Fiber Mode | WDM Bi-Directional |
| HARDWARE | |
|---|---|
| Ethernet Interface | 1 × RJ45 Gigabit Ethernet |
| Fiber Interface | 1 × SC |
| Fiber Type | Single-Mode |
| Fiber Core | 9/125μm |
| Wavelength | TX 1310nm / RX 1550nm |
| LED Indicators | PWR / LINK / FX / FDX |
| NETWORK | |
|---|---|
| Ethernet Standards | IEEE 802.3i, 802.3u, 802.3ab |
| Ethernet Speed | 10/100/1000Mbps |
| Fiber Speed | 1000Mbps |
| Auto-Negotiation | Supported |
| Auto MDI/MDIX | Supported |
| Duplex | Full/Half Duplex |
| FIBER | |
|---|---|
| Fiber Standard | Single-Mode |
| Fiber Connector | SC |
| Fiber Core | 9/125μm |
| WDM | Bi-Directional |
| Transmission Distance | Up to 2km |
| TX Wavelength | 1310nm |
| RX Wavelength | 1550nm |
| POWER | |
|---|---|
| Power Supply | External Power Adapter |
| Input | 100–240V AC, 50/60Hz |
| Output | 9V DC |
| FEATURES | |
|---|---|
| WDM Technology | Bi-Directional Single-Fiber Transmission |
| Auto-Negotiation | Supported |
| Auto MDI/MDIX | Supported |
| Store-and-Forward | Supported |
| Flow Control | IEEE 802.3x |
| Switching Mode | Store-and-Forward |
| PHYSICAL | |
|---|---|
| Dimensions | 94.5 × 73 × 27mm |
| Installation | Desktop |
| Housing | Plastic |
| ENVIRONMENT | |
|---|---|
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10%–90% RH, Non-Condensing |
| Storage Humidity | 5%–90% RH, Non-Condensing |
| CERTIFICATIONS | |
|---|---|
| Certifications | CE / FCC / RoHS |
Note: The TP-Link TL-FC311B-2 is a Gigabit WDM Media Converter designed to convert 10/100/1000Mbps Ethernet signals to 1000Mbps fiber transmission. It features 1 × Gigabit RJ45 Ethernet port and 1 × SC fiber port for Single-Mode fiber. Using WDM Bi-Directional technology, it transmits and receives data over a single fiber strand at different wavelengths, with a transmission distance of up to 2km. The TL-FC311B-2 operates at 1310nm TX and 1550nm RX.
Important: The TL-FC311B-2 is a Gigabit WDM Media Converter featuring 1 × 10/100/1000Mbps RJ45 Ethernet port and 1 × SC Single-Mode fiber port. It uses WDM Bi-Directional technology to transmit data over a single fiber strand, supporting transmission distances of up to 2km. The TL-FC311B-2 operates at 1310nm TX / 1550nm RX and must be paired with the corresponding WDM converter using the opposite wavelength.
