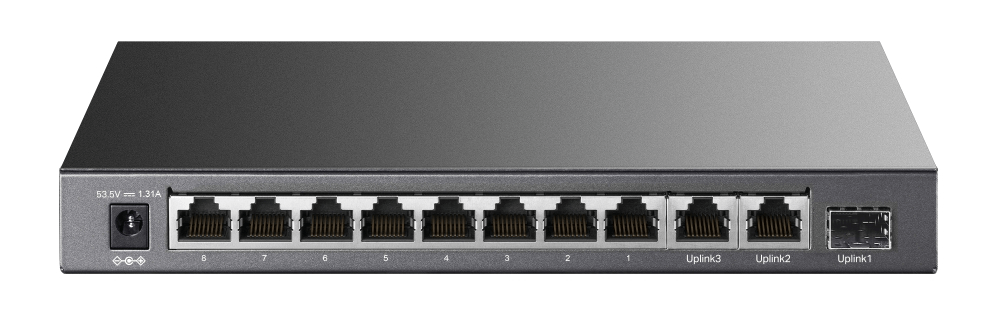

TL-SL1311P | 8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+

TP-Link TL-SL1311P

8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+

8 × 10/100Mbps PoE+ ports, 2 × Gigabit RJ45 and 1 × Gigabit SFP
IEEE 802.3af/at compliant with 65W total PoE budget
Supports up to 30W PoE power per port
Extend Mode supports data and power transmission up to 250m
Isolation Mode and PoE Auto Recovery for reliable network operation
Fanless plug-and-play design with 7.6Gbps switching capacity

Specifications TP-Link TL-SL1311P

Features	Description
Device Type	8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+
Network Ports	8 × 10/100 Mbps PoE+ RJ45, 2 × Gigabit RJ45, 1 × Gigabit SFP
PoE Standard	IEEE 802.3af/at
PoE Ports	Ports 1–8
PoE Power	Up to 30 W per PoE Port, 65 W Total PoE Budget
Extend Mode	Up to 250 m Data and Power Transmission
Isolation Mode	Separates Client Traffic Between PoE Ports for Improved Security
PoE Auto Recovery	Automatically Detects and Reboots Unresponsive PoE Devices
Switching Capacity	7.6 Gbps
Packet Forwarding Rate	5.6544 Mpps
Design	Fanless Desktop Design
Application	IP Cameras, Wireless Access Points, VoIP Phones, Small Business Networks and Surveillance Networks

Interface	8 × 10/100 Mbps 802.3af/at PoE+ RJ45, 2 × Gigabit RJ45, 1 × Gigabit SFP
PoE Standard	IEEE 802.3af/at
PoE Ports	Ports 1–8
PoE Power	Up to 30 W per Port
Total PoE Budget	65 W
Network Speed	10/100 Mbps PoE Ports; 10/100/1000 Mbps Gigabit Ports and SFP
Switching Capacity	7.6 Gbps
Packet Forwarding Rate	5.6544 Mpps
MAC Address Table	2K
Jumbo Frame	16 KB
Transmission Method	Store-and-Forward
Auto Negotiation	Supported
Auto MDI/MDIX	Supported
Extend Mode	Ports 1–4 and Ports 1–8, Up to 250 m
Isolation Mode	Ports 1–8
PoE Auto Recovery	Ports 1–8
Flow Control	IEEE 802.3x Flow Control for Full-Duplex and Backpressure for Half-Duplex
Fan	Fanless
Power Supply	53.5 VDC / 1.31 A External Power Adapter
Maximum Power Consumption	77.32 W with 65 W PoE Load
Dimensions	209 × 126 × 26 mm

SMART FEATURES
8-Port PoE+	Provides Eight 10/100 Mbps PoE+ Ports Supporting IEEE 802.3af/at Devices with Up to 30 W per Port
250 m Extend Mode	Extends PoE Data and Power Transmission Distance up to 250 m for Long-Distance IP Camera and Access Point Deployments
PoE Auto Recovery	Automatically Detects Unresponsive PoE-Powered Devices and Reboots Them to Maintain Stable Operation
Isolation Mode	Separates Traffic Between PoE Ports to Improve Network Security and Reduce Network Interference
Gigabit Uplink	Two Gigabit RJ45 Ports and One Gigabit SFP Port Provide High-Speed Uplink Connectivity
Fanless Design	Silent Fanless Construction Reduces Noise and Power Consumption for Desktop and Surveillance Installations

GENERAL
Switch Type	Unmanaged PoE+ Desktop Switch
PoE Ports	8 × 10/100 Mbps PoE+
Uplink Ports	2 × Gigabit RJ45 + 1 × Gigabit SFP
PoE Budget	65 W
Installation Method	Desktop / Wall Mount
Extend Distance	Up to 250 m
MAC Address Table	2K
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90%, Non-Condensing
Storage Humidity	5% to 90%, Non-Condensing
Certification	FCC, CE and RoHS
Warranty	3 Years

Note: The TP-Link TL-SL1311P is an 11-port desktop PoE+ switch featuring eight 10/100 Mbps PoE+ ports, two Gigabit RJ45 ports and one Gigabit SFP port. It supports IEEE 802.3af/at with up to 30 W per PoE port and a total PoE budget of 65 W, making it suitable for IP cameras, access points and other PoE-powered network devices.

Important: The TP-Link TL-SL1311P supports Extend Mode for up to 250 m data and power transmission, Isolation Mode for separating client traffic and PoE Auto Recovery for automatically rebooting unresponsive PoE devices. The switch uses a fanless design and requires no configuration, providing simple Plug-and-Play deployment.
