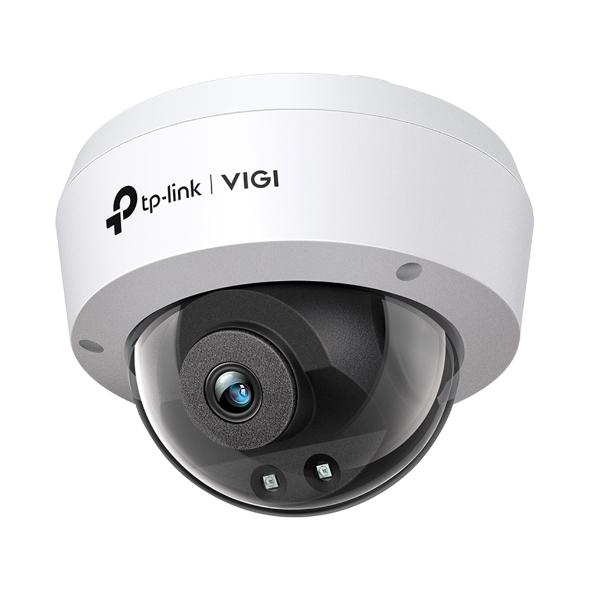

TP-LINK VIGI C220I
2 MP IR Dome Network Camera
VIGI C220I กล้องเครือข่ายโดมความละเอียดแบบ Full-HD 2 MP (1080p) เหมาะกับทั้งใช้งานภายในและภายนอกอาคาร มาพร้อมคุณสมบัติ AI เช่นการจำแนกมนุษย์และยานพาหนะ, การตรวจจับอัจฉริยะ (Smart Detection) เช่น เข้า/ออกพื้นที่ ข้ามเส้น หรือการวาง/ยกวัตถุ พร้อมเคสกันกระแทกระดับ IK10 และกันน้ำ IP67 รองรับ PoE สายเดียวจบ และจัดการผ่านแอป VIGI, ซอฟต์แวร์ Security Manager หรือ NVR UI ได้อย่างรวดเร็วและยืดหยุ่น
| CAMERA VIGI C220I | |
|---|---|
| Image Sensor | 1/3” Progressive Scan CMOS |
| Lens | 2.8 mm/ 4 mm |
| Aperture | 2.8 mm: F2.2 4 mm: F2.0 |
| Lens Mount | M12 |
| Viewing Angle | 2.8mm: 88.2°/48.7°/106.5°(H/V/D) 4mm: 74.6°/41.3°/88.1°(H/V/D) |
| Day/Night Mechanism | IR Cut Filter |
| IR Working Distance | 30m |
| Minimum Illumination | Color: 0.1 Lux; 0 Lux with IR |
| Weatherproof Rating | IP67 |
| Digital Noise Reduction | 3D DNR |
| WDR | DWDR |
| NETWORK | |
|---|---|
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| API | ONVIF |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, VIGI NVR |
| GENERAL | |
|---|---|
| Package Contents | VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories |
| Operating Temperature | -30–60 °C |
| Certifications | CE/BSMI/VCCI/ONVIF |
| Dimensions( H X W X D ) | 115 × 115 × 86 mm |
| Material | Plastic |
| General Features | Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening |
| Power Supply | PoE (802.3af/at, class 0) |
| Power Consumption | PoE: Class 0 |
| Vandal Resistant | IK10 |
| VIDEO/IMAGE | |
|---|---|
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
| Frame Rate & Resolutions | Main Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 1920×1080, 1280×960, 1280×720 Sub-Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 704×576, 640×480, 352×288, 320×240 |
| Max. Resolution | 2MP (1920 × 1080) |
| Video Streaming | Main Stream Sub-Stream |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°) |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Video Bit Rate | 64 Kbps to 4 Mbps |
| Day/Night Switch | Day/Night/Auto/Schedule |
| SMART FEATURE-SET | |
|---|---|
| Smart Event | Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection |
| Basic Event | Motion Detection, Camera Tampering Detection, Exception (Illegal Login) |
| Linkage Method | Trigger Notification: ONVIF, HTTPS |
| Region of Interest | 1 Region |
| INTERFACES | |
|---|---|
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port |
| Button | – |
| Video Output | – |
