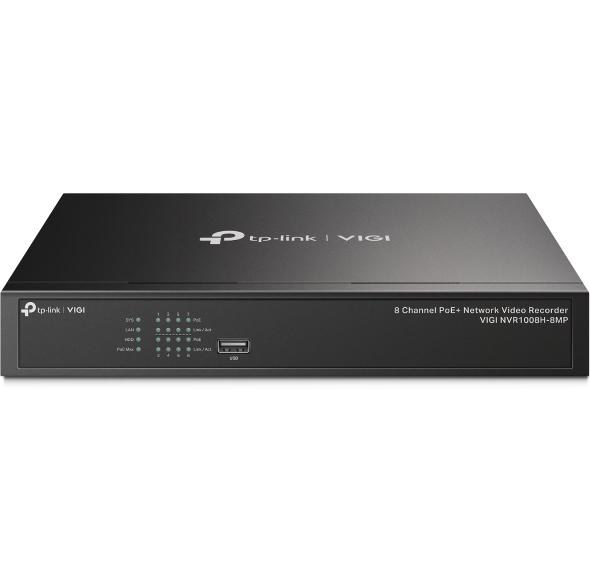

Experience superior surveillance with the TP-LINK VIGI NVR1008H-8MP, designed for high-resolution video recording, robust performance, and seamless compatibility with up to 8 MP IP cameras. This network video recorder supports up to 10 TB of storage and ensures top-notch decoding and playback capabilities.
Key Features VIGI NVR1008H-8MP
- H.265+/H.265/H.264+/H.264 video compression for efficient storage use
- 8-Channel IP video input with up to 8 MP resolution
- HDMI and VGA outputs with resolutions up to 4K (3840 × 2160)
- Supports a single SATA interface with up to 10 TB storage capacity
- 2× USB 2.0 for additional device connectivity
Technical Specifications
Network
| Protocol |
TCP/IP, DHCP, DNS, NTP, UPnP |
| Incoming Bandwidth |
80 Mbps |
| Outgoing Bandwidth |
60 Mbps |
Video and Image
| Video Input |
8-Channel IP Video Input, up to 8 MP Resolution |
| Recording Resolution |
8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| HDMI Output Resolution |
4K, Full HD, and various resolutions up to 3840 × 2160 |
Decoding
| Decoding Format |
H.265+/H.265/H.264+/H.264 |
| Live View/Playback Resolution |
8MP/5MP/4MP/3MP/1080p and lower resolutions |
| Synchronous Playback |
8 Channels |
Hard Disk
| SATA |
1 SATA Interface |
| Capacity |
Up to 10 TB |
General
| Package Contents |

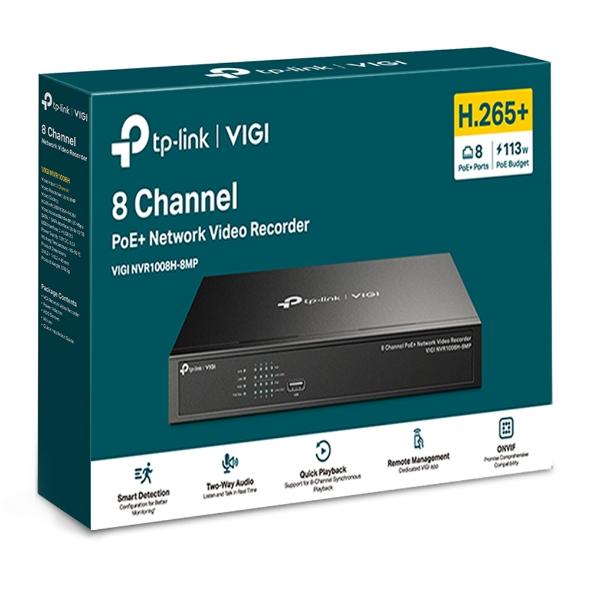

- VIGI Network Video Recorder
- Power Adapter
- HDD Screws
- Mouse
- Quick Installation Guide
|
| Operating Temperature |
-10–55 °C |
| Dimensions (H × W × D) |
294 × 180 × 44 mm |
| Power Consumption |
4.82 W (without disk) |
