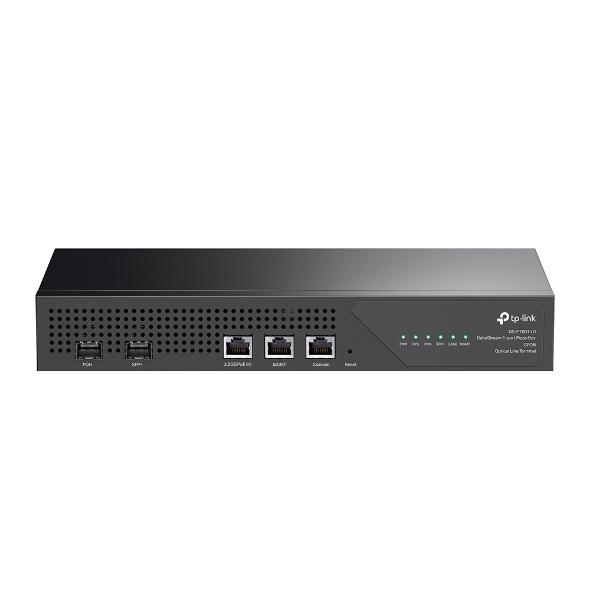

Specifications TP-Link DS-P7001-01
| Features | Description |
|---|---|
| Product Type | 1-Port Pizza-Box GPON Optical Line Terminal (OLT) |
| GPON Port | 1 × GPON Port |
| GPON Split Ratio | Up to 1:128 |
| Downstream / Upstream | 2.5Gbps Downstream / 1.25Gbps Upstream |
| 10G Uplink | 1 × 10Gbps SFP+ Port |
| Ethernet Uplink | 1 × 2.5GbE Port with PoE |
| PoE | IEEE 802.3at |
| Management | DPMS, SNMP, CLI and Web UI |
| Mounting | 1RU Rack-Mountable / Desktop |
| GPON | |
|---|---|
| GPON Port | 1 × GPON Port |
| Maximum Split Ratio | 1:128 |
| Downstream Line Rate | 2.488Gbps |
| Upstream Line Rate | 1.244Gbps |
| Wavelength | 1490nm Downstream / 1310nm Upstream |
| GPON Standard | ITU-T G.984.x |
| Optical Interface | SC/UPC |
| UPLINK | |
|---|---|
| 10G SFP+ | 1 × 10Gbps SFP+ Port |
| 2.5GbE | 1 × 2.5Gbps Ethernet Port |
| PoE | 802.3at PoE Input |
| LAYER 2 / LAYER 3 | |
|---|---|
| VLAN | 802.1Q VLAN |
| Link Aggregation | LACP |
| Spanning Tree | STP / RSTP / MSTP |
| IGMP Snooping | Supported |
| QoS | 802.1p / DSCP |
| Static Routing | Supported |
| IPv4 / IPv6 | Supported |
| DHCP | DHCP Client / Relay / Snooping |
| GPON FEATURES | |
|---|---|
| ONU/ONT Management | Remote ONU/ONT Management |
| Auto Discovery | Supported |
| Auto Provisioning | Profile-Based Auto Provisioning |
| Zero-Touch Activation | Supported |
| OMCI | Supported |
| DBA | Supported |
| VLAN Translation | Supported |
| ONU Authentication | Serial Number / LOID Authentication |
| MANAGEMENT | |
|---|---|
| Centralized Management | DeltaStream PON Management System (DPMS) |
| Management Interface | Web UI / CLI / SNMP |
| Remote Configuration | Supported |
| Batch Configuration | Supported |
| Firmware Upgrade | Remote Firmware Upgrade |
| Monitoring | System Status, ONU/ONT Status and Network Monitoring |
| POWER & GENERAL | |
|---|---|
| Power Supply | DC Power / IEEE 802.3at PoE |
| PoE Input | Supported via 2.5GbE Port |
| Form Factor | Pizza-Box |
| Rack Mount | 1RU Rack-Mountable |
| Application | FTTH, Small Communities, Hotels, MDUs and Small-Scale GPON Networks |
Note: The TP-Link DS-P7001-01 is a DeltaStream 1-Port Pizza-Box GPON OLT designed for small-scale FTTH deployments. It supports a maximum 1:128 GPON splitting ratio, 2.488Gbps downstream and 1.244Gbps upstream GPON line rates, with 10G SFP+ and 2.5GbE uplink connectivity.
Important: The DS-P7001-01 is an OLT, not an ONU/ONT. It is installed on the provider/network side and connects through a passive optical splitter to multiple compatible ONU/ONT devices. The 2.5GbE uplink also supports 802.3at PoE input, allowing power and data to be supplied through a single Ethernet cable.
