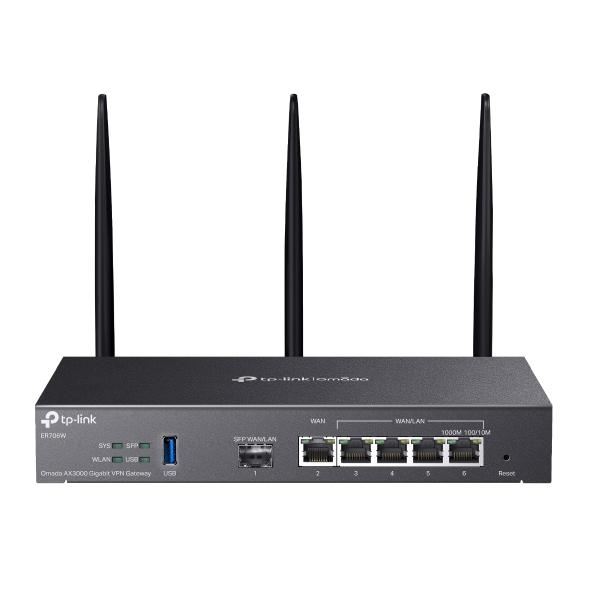

Specifications TP-Link Omada ER706W
| Features | Description |
|---|---|
| Device Type | AX3000 Wi-Fi 6 Gigabit VPN Gateway |
| Wi-Fi Standard | Wi-Fi 6 (IEEE 802.11ax) |
| Wi-Fi Speed | Up to 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz |
| Network Ports | 1 × Gigabit SFP WAN/LAN, 1 × Gigabit WAN and 4 × Gigabit WAN/LAN |
| USB | 1 × USB 3.0 for USB Storage and LTE Backup |
| Maximum WAN | Up to 5 WAN Ports |
| VPN | IPsec, OpenVPN, WireGuard, SSL VPN, GRE, L2TP and PPTP |
| Concurrent Sessions | 150,000 |
| New Sessions / Second | 5,100 |
| Management | Omada Cloud-Based Management, Omada App and Web Interface |
| SFP WAN/LAN Port | 1 × 1000Mbps SFP |
|---|---|
| WAN Port | 1 × 10/100/1000Mbps RJ45 |
| WAN/LAN Ports | 4 × 10/100/1000Mbps RJ45 |
| USB Port | 1 × USB 3.0 |
| USB Function | USB Storage and LTE Backup with Compatible LTE Dongle |
| Wi-Fi 2.4 GHz | 574 Mbps |
| Wi-Fi 5 GHz | 2402 Mbps, HE160 |
| Antennas | 2 × 3 dBi Dual-Band Detachable Antennas on 2.4 GHz and 3 × 4.5 dBi Dual-Band Detachable Antennas on 5 GHz |
| Flash | 128 MB NAND |
| DRAM | 512 MB DDR4 |
| Power Supply | 12VDC / 2A Power Adapter |
| Surge Protection | 4 kV |
| PERFORMANCE | |
|---|---|
| Concurrent Sessions | 150,000 |
| New Sessions / Second | 5,100 |
| NAT Throughput – Static IP | 937.2 Mbps Upload / 936.1 Mbps Download |
| NAT Throughput – DHCP | 945.8 Mbps Upload / 940.6 Mbps Download |
| NAT Throughput – PPPoE | 942.9 Mbps Upload / 942.9 Mbps Download |
| NAT Throughput – L2TP | 837.4 Mbps Upload / 881.5 Mbps Download |
| NAT Throughput – PPTP | 803.0 Mbps Upload / 910.5 Mbps Download |
| IPsec VPN Throughput | Up to 658.4 Mbps |
| GRE VPN Throughput | 624.2 Mbps Unencrypted / 301.5 Mbps Encrypted |
| WireGuard VPN Throughput | 393.5 Mbps |
| OpenVPN Throughput | 129.3 Mbps |
| SSL VPN Throughput | 126.7 Mbps |
| DPI Throughput | 933 Mbps TCP / 927 Mbps UDP |
| IPS Throughput | 229 Mbps TCP / 188 Mbps UDP |
| ROUTER FEATURES | |
|---|---|
| WAN Connection | Static IP, Dynamic IP, PPPoE, L2TP, PPTP and IPv6 WAN |
| Multi-WAN | Supports Load Balancing on up to 5 WAN Ports |
| Load Balancing | Supports Intelligent Load Balancing and Application Optimized Routing |
| Link Backup | Supports Automatic WAN Failover and Link Backup |
| Policy Routing | Supports Policy-Based Routing |
| Static Routing | Supports IPv4 and IPv6 Static Routing |
| DHCP | DHCP Server, DHCP Client, DHCP Relay and Address Reservation |
| VLAN | IEEE 802.1Q VLAN |
| NAT | One-to-One NAT, Virtual Server, Port Triggering, NAT-DMZ and UPnP |
| IPTV | IGMP v2/v3 Proxy |
| VPN FEATURES | |
|---|---|
| IPsec VPN | Supports Site-to-Site and Client-to-Site IPsec VPN |
| OpenVPN | Supports OpenVPN Server and Client |
| WireGuard VPN | Supports WireGuard VPN |
| SSL VPN | Supports SSL VPN |
| GRE VPN | Supports GRE VPN |
| L2TP VPN | Supports L2TP VPN Server and Client |
| PPTP VPN | Supports PPTP VPN Server and Client |
| SMART FEATURES | |
|---|---|
| Wi-Fi 6 AX3000 | Provides up to 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz with HE160 |
| 5-WAN Load Balancing | Supports Load Balancing Across up to 5 WAN Connections |
| Gigabit SFP WAN | Provides 1 × Gigabit SFP WAN/LAN Port for Fiber Connectivity |
| LTE Backup | Supports LTE Backup Through a Compatible USB LTE Dongle |
| Omada SDN | Supports Centralized Management Through Omada Cloud-Based Controller |
| Omada Mesh | Supports Omada Mesh with Compatible Omada Access Points |
| Captive Portal | Supports Captive Portal for Guest Network Authentication |
| DPI | Deep Packet Inspection for Application Identification and Traffic Analysis |
| IDS/IPS | Provides Intrusion Detection and Prevention |
| Firewall | Supports Advanced Firewall Policies and Access Control |
| DoS Defense | Protects Against TCP, UDP and ICMP Flood Attacks |
| IP/MAC/URL Filtering | Provides Traffic Filtering and Access Control |
| Cloud Management | Supports Remote Network Management Through Omada Cloud and Omada App |
| GENERAL | |
|---|---|
| Device Type | AX3000 Wi-Fi 6 Gigabit VPN Gateway |
| Network Ports | 1 × Gigabit SFP WAN/LAN, 1 × Gigabit WAN and 4 × Gigabit WAN/LAN |
| Maximum WAN | Up to 5 WAN Ports |
| Wi-Fi | Dual-Band Wi-Fi 6 AX3000 |
| PoE | Not Supported |
| Management | Omada Cloud, Omada App and Web Interface |
| Memory | 512 MB DDR4 |
| Flash | 128 MB NAND |
| Power Supply | 12VDC / 2A |
| Maximum Power Consumption | EU: 16.8W with USB 3.0 Connected / 11.8W without USB 3.0 Connected |
| Dimensions | 226 × 131 × 35 mm |
| Installation Method | Desktop / Wall Mount / Rack Mount with Optional Rack Kit |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
Note: The TP-Link Omada ER706W is an AX3000 Wi-Fi 6 Gigabit VPN Gateway featuring 1 × Gigabit SFP WAN/LAN port, 1 × Gigabit RJ45 WAN port and 4 × Gigabit RJ45 WAN/LAN ports. It provides up to 3.0 Gbps combined Wi-Fi 6 wireless speed, supports up to 5 WAN connections, USB 3.0 LTE backup, Omada Mesh and comprehensive VPN and network security features.
Important: The ER706W is a VPN Gateway with built-in Wi-Fi 6, not a PoE switch. It has 6 physical network interfaces consisting of 1 × Gigabit SFP and 5 × Gigabit RJ45, with up to 5 WAN ports available through configuration.
