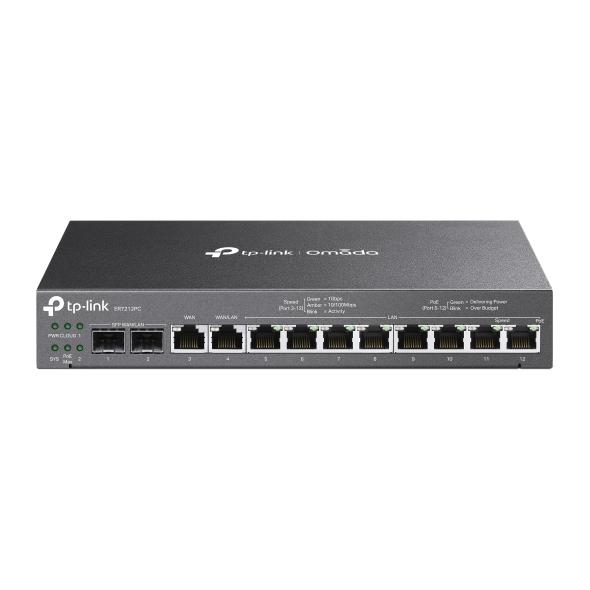

Specifications TP-Link Omada ER7212PC
| Features | Description |
|---|---|
| Device Type | 3-in-1 Gigabit VPN Router with PoE+ Switch and Omada SDN Controller |
| SFP WAN/LAN Ports | 2 × Gigabit SFP |
| WAN Port | 1 × Gigabit RJ45 WAN |
| WAN/LAN Port | 1 × Gigabit RJ45 WAN/LAN |
| LAN Ports | 8 × Gigabit RJ45 PoE+ Ports |
| PoE Standard | IEEE 802.3af/at |
| Total PoE Budget | 110W |
| VPN | IPsec, OpenVPN, L2TP, PPTP and WireGuard VPN |
| Omada Controller | Integrated Omada SDN Controller |
| Managed Omada Devices | Up to 24 Omada Devices: 2 Gateways + 22 Switches/EAPs |
| Concurrent Sessions | 50,000 |
| New Sessions / Second | 3,800 |
| Management | Omada App, Web UI and Cloud Access |
| SFP WAN/LAN Ports | 2 × 1000Mbps SFP |
|---|---|
| WAN Port | 1 × 10/100/1000Mbps RJ45 |
| WAN/LAN Port | 1 × 10/100/1000Mbps RJ45 |
| LAN Ports | 8 × 10/100/1000Mbps RJ45 |
| PoE Ports | 8 × PoE+ RJ45 |
| PoE Standard | IEEE 802.3af/at |
| Total PoE Budget | 110W |
| PoE Power | Up to 30W per PoE+ Port |
| Power Supply | 53.5VDC/2.43A Adapter |
| Flash | 32Mbit NOR + 8GB eMMC |
| DRAM | 2GB DDR4 |
| Fan | Fanless |
| Surge Protection | 6kV |
| ESD Protection | ±8kV Air Discharge, ±4kV Contact Discharge |
| ROUTER FEATURES | |
|---|---|
| WAN Connection | Static IP, Dynamic IP, PPPoE, L2TP and PPTP |
| Multi-WAN | Supports up to 4 WAN Ethernet Connections |
| Load Balancing | Supports WAN Load Balancing and Link Backup |
| Routing | Static Routing, Policy Routing and Dynamic Routing Features |
| DHCP | DHCP Server, DHCP Client, DHCP Relay and DHCP Snooping |
| VLAN | 802.1Q VLAN and LAN/WAN VLAN Configuration |
| NAT | Port Forwarding, Port Triggering, NAT-DMZ and UPnP |
| Firewall | SPI Firewall, IP/MAC/URL Filtering, Access Control and DoS Defense |
| IPv6 | Supports IPv6 Routing and IPv6 Firewall Features |
| VPN FEATURES | |
|---|---|
| IPsec VPN | Supports Site-to-Site and Client-to-Site IPsec VPN |
| OpenVPN | Supports OpenVPN Server and Client |
| L2TP VPN | Supports L2TP VPN Connections |
| PPTP VPN | Supports PPTP VPN Connections |
| WireGuard VPN | Supports WireGuard VPN |
| SMART FEATURES | |
|---|---|
| 3-in-1 Design | Combines a Gigabit VPN Router, 8-Port PoE+ Switch and Omada SDN Controller in One Device |
| Omada SDN Controller | Provides Centralized Management, Device Discovery, Configuration, Monitoring and Network Management |
| Omada Device Management | Manages up to 24 Omada Devices, including up to 2 Gateways and 22 Switches/EAPs |
| PoE+ Output | Provides 8 × IEEE 802.3af/at PoE+ Ports with 110W Total PoE Budget |
| Multi-WAN | Supports up to 4 WAN Ports Using 2 × SFP WAN/LAN, 1 × RJ45 WAN and 1 × RJ45 WAN/LAN |
| Load Balancing | Distributes Traffic Across Multiple WAN Connections for Improved Availability and Bandwidth Utilization |
| Cloud Management | Supports Remote Management Through Omada Cloud Access and Omada App |
| Network Security | Supports SPI Firewall, ACL, IP/MAC/URL Filtering, DoS Defense and Other Security Features |
| VLAN | Supports 802.1Q VLAN for Network Segmentation and Traffic Isolation |
| Captive Portal | Supports Captive Portal Authentication for Guest Network Access |
| PERFORMANCE | |
|---|---|
| Concurrent Sessions | 50,000 |
| New Sessions / Second | 3,800 |
| Static IP NAT Throughput | 940.2 Mbps Upload / 947.5 Mbps Download |
| DHCP NAT Throughput | 947.8 Mbps Upload / 948.6 Mbps Download |
| PPPoE NAT Throughput | 943.1 Mbps Upload / 942.6 Mbps Download |
| L2TP NAT Throughput | 898.4 Mbps Upload / 915.8 Mbps Download |
| IPsec VPN Throughput | Up to 168.5 Mbps with AES256 |
| GENERAL | |
|---|---|
| Device Type | 3-in-1 Gigabit VPN Router |
| Network Ports | 2 × Gigabit SFP WAN/LAN, 1 × Gigabit RJ45 WAN, 1 × Gigabit RJ45 WAN/LAN, 8 × Gigabit RJ45 LAN |
| PoE | 8 × PoE+ Ports, 110W Total PoE Budget |
| Omada Controller | Integrated |
| Management | Omada App, Web UI and Cloud Access |
| Installation Method | Desktop / Wall-Mount / Rack-Mount with Optional Rack Kit |
| Enclosure | Steel |
| Fan | Fanless |
| Maximum Power Consumption | 131W with 110W PoE Load |
| Dimensions | 226 × 131 × 35 mm |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Mounting | Desktop, Wall-Mount and Optional Rack-Mount |
Note: The TP-Link Omada ER7212PC is a 3-in-1 Gigabit VPN Router that combines a router, 8-port Gigabit PoE+ switch and integrated Omada SDN Controller. It provides 2 × Gigabit SFP WAN/LAN ports, 1 × Gigabit RJ45 WAN port, 1 × Gigabit RJ45 WAN/LAN port and 8 × Gigabit PoE+ LAN ports with a 110W total PoE budget. The V2 hardware features a dual-core 1.2GHz CPU, 2GB DDR4 memory and 8GB eMMC storage.
Important: The ER7212PC is not simply a PoE switch. It combines Router + PoE+ Switch + Omada Controller in one device. The 8 LAN ports provide PoE+ output, with a total budget of 110W. The device can manage up to 24 Omada devices in the current V2 specification.
